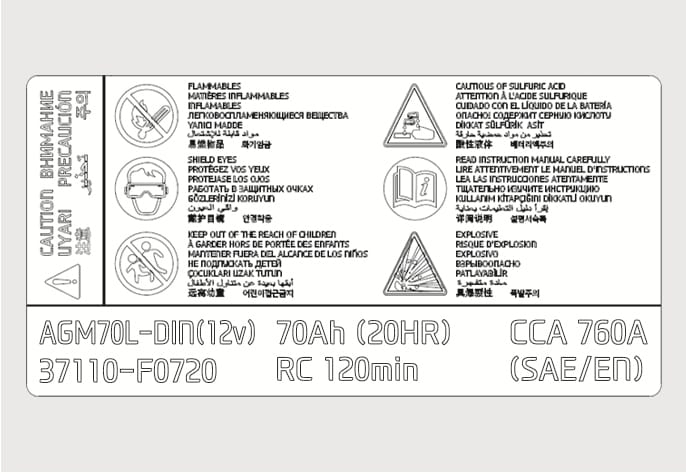

Battery capacity label

2C_BatteryCapacityLabel_AGM

  • The actual battery label in the vehicle may differ from the illustration.

  1. AGM70L-DIN : The HYUNDAI model name of battery

  2. 12V : The nominal voltage

  3. 70Ah (20HR) : The nominal capacity (in Ampere hours)

  4. RC 120min : The nominal reserve capacity (in min.)

  5. CCA 5760A (SAE/EN) : The cold-test current in amperes

For vehicles with power liftgate, note that the power liftgate needs to be reset after the battery has been replaced. For more information, refer to the “Power liftgate” section in chapter 5.
