Surround View Monitor (SVM)

Surround View Monitor uses the wide view cameras and displays images around your vehicle through the infotainment system to help with parking or driving.

Detecting sensor

2C_WideFrontSideViewCamera

2C_WideRearCamera

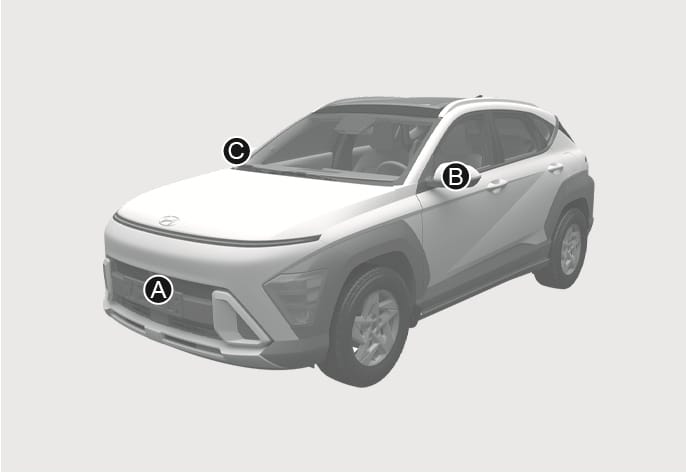

  1. Wide-front view camera
  2. Wide-side view camera (Below the side view mirror)
  3. Wide-side view camera (Below the side view mirror)

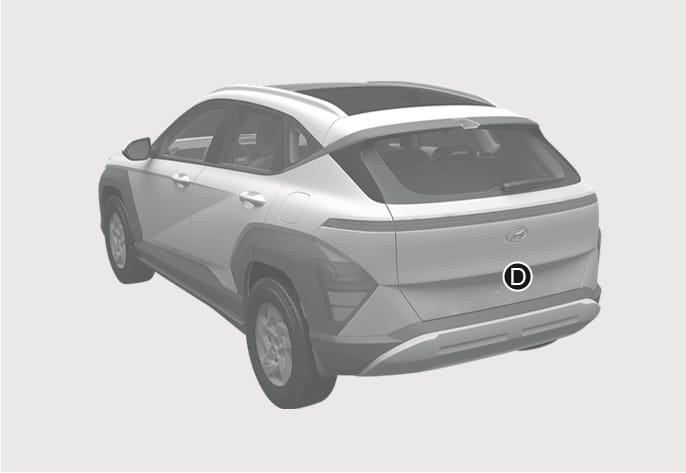

  4. Wide-rear view camera

See the illustration above for the detailed location of the detecting sensors.
