Front light replacement

Type A

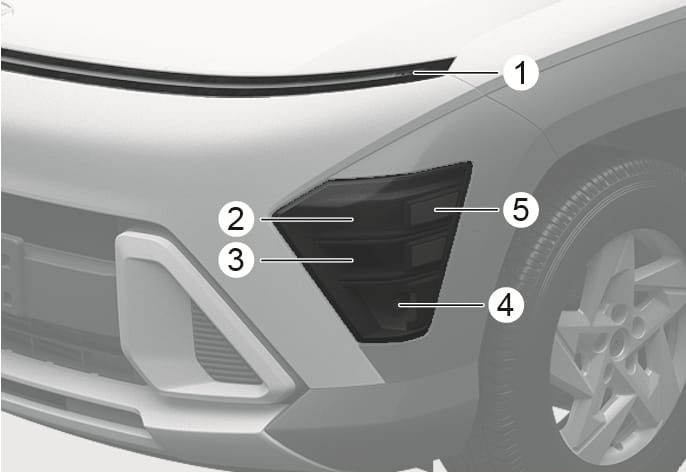

2C_FrontLampOverview

  1. Parking light/Daytime Running Light (DRL)
  2. Headlight (Low)
  3. Headlight (High)
  4. Turn signal light
  5. Front side marker

If the LED does not operate, have the system inspected by an authorized HYUNDAI dealer.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

Replacing turn signal light

  1. Apply the parking brake and turn off the engine.

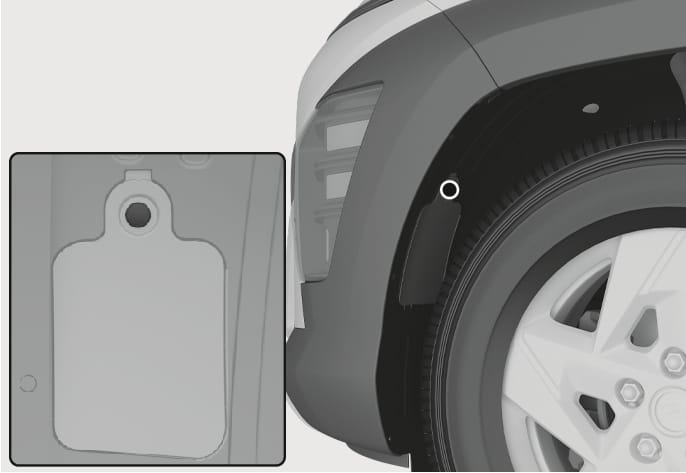

  2. Turn the wheel inwards and remove the cap from the cover (on the back side of the bumper) by using a flat-head screwdriver.

    2c_RepeaterLampChange1

  3. Remove the cover.

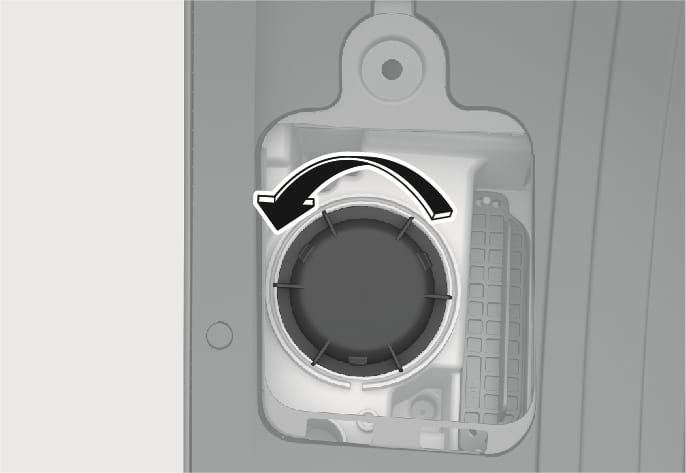

  4. Remove the socket cover by turning it counterclockwise.

    2c_RepeaterLampChange2

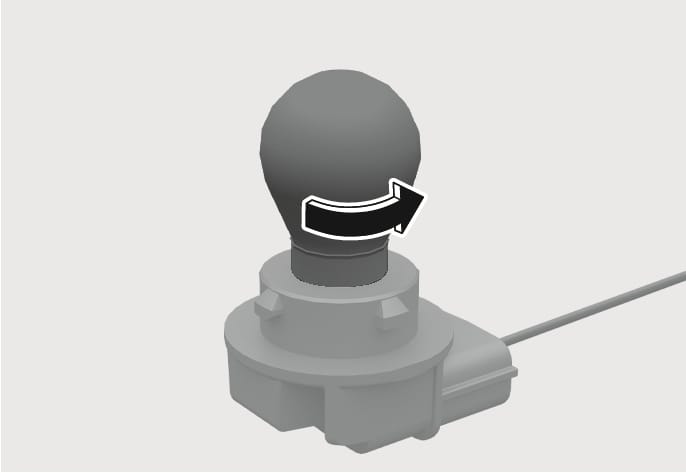

  5. Remove the bulb from the socket by pressing it in and turning it counterclockwise.

    2c_RepeaterLampChange3

  6. Install a new bulb and reinstall in the reverse order.

Type B

2C_FrontLampOverview

  1. Parking light/Daytime Running Light (DRL)
  2. Headlight (Low)
  3. Headlight (High, Sub Low)
  4. Turn signal light
  5. Front side marker

If the LED light does not operate, have the system inspected by an authorized HYUNDAI dealer.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.
