Engine compartment

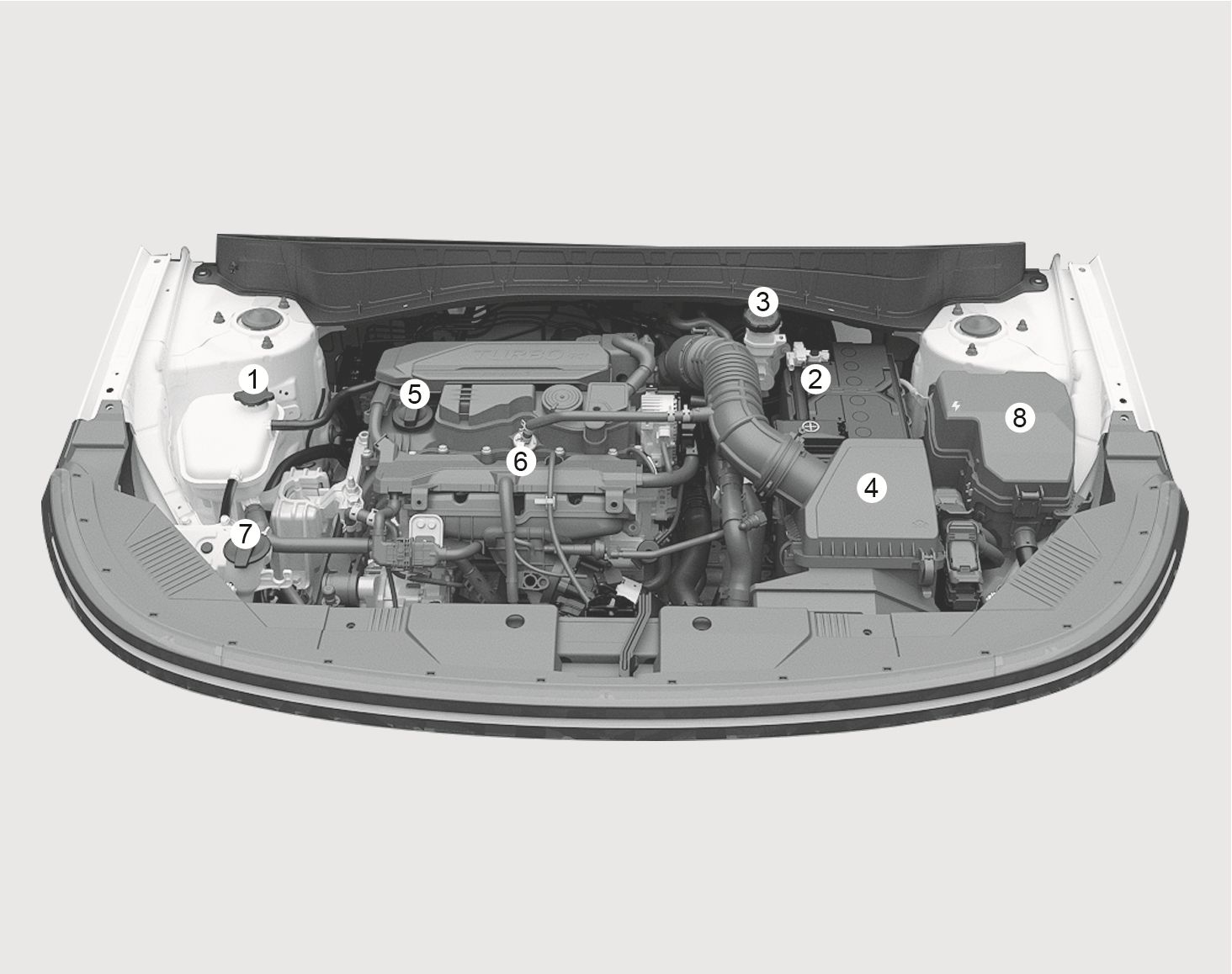

Smartstream G1.6 T-GDI

1C_EngineRoom

The actual engine compartment in the vehicle may differ from the illustration.

  1. Engine coolant reservoir/Engine coolant cap
  2. Battery
  3. Brake fluid reservoir
  4. Air cleaner
  5. Engine oil filler cap
  6. Engine oil dipstick
  7. Windshield washer fluid reservoir
  8. Fuse box

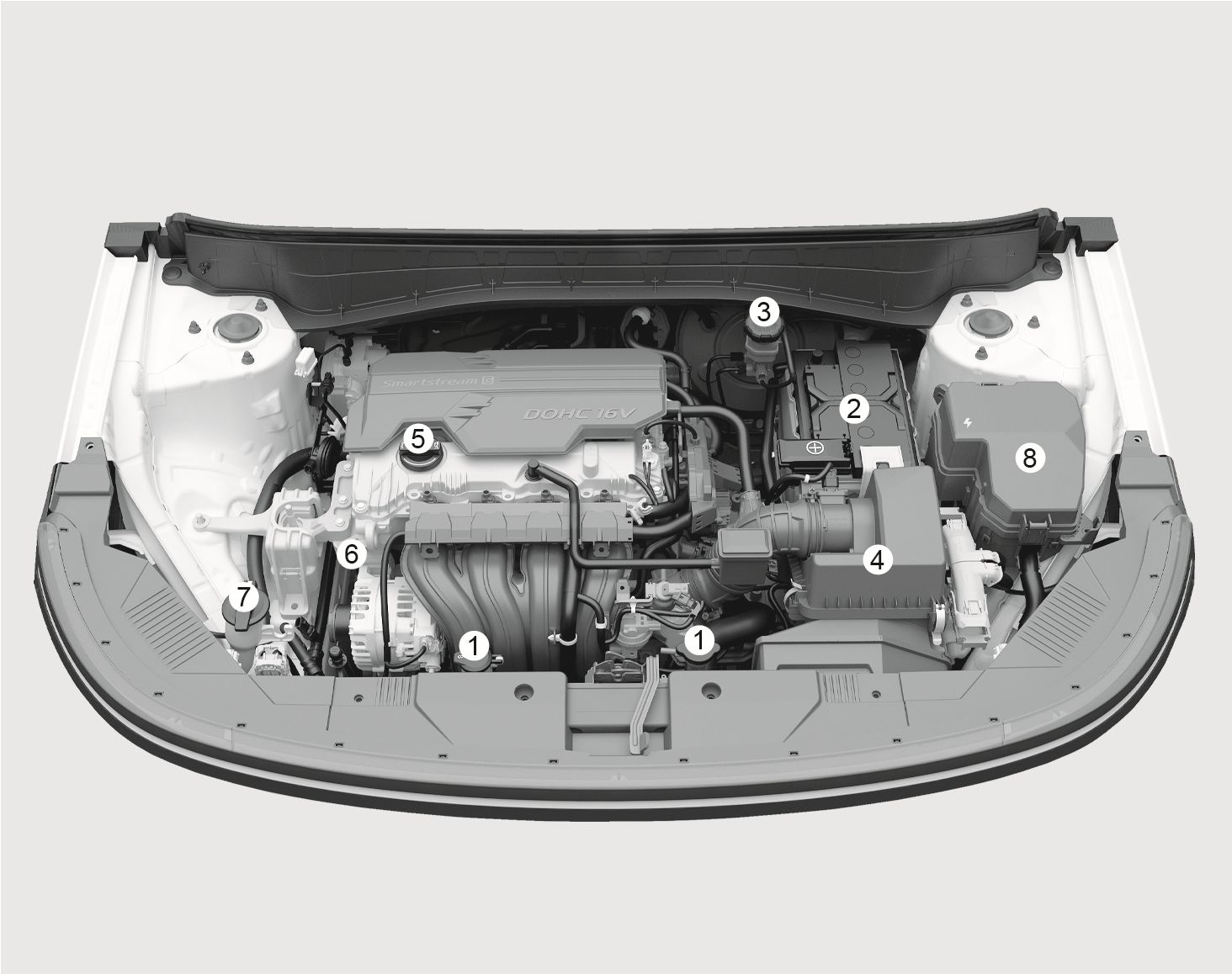

Smartstream G2.0 ATKINSON

1C_EngineRoom_2

The actual engine compartment in the vehicle may differ from the illustration.

  1. Engine coolant reservoir/Engine coolant cap
  2. Battery
  3. Brake fluid reservoir
  4. Air cleaner
  5. Engine oil filler cap
  6. Engine oil dipstick
  7. Windshield washer fluid reservoir
  8. Fuse box
