Engine compartment panel fuse replacement

Blade fuse / Cartridge fuse

  1. Turn off the vehicle.

  2. Turn off all other switches.

  3. Remove the fuse panel cover by pressing the tap and pulling up.

  4. Check the removed fuse and replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

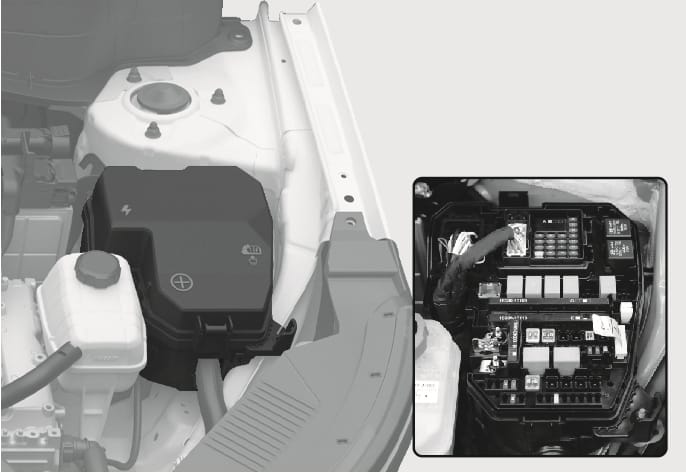

    Blade type

    2C_EngineRoomFuseReplacement_2

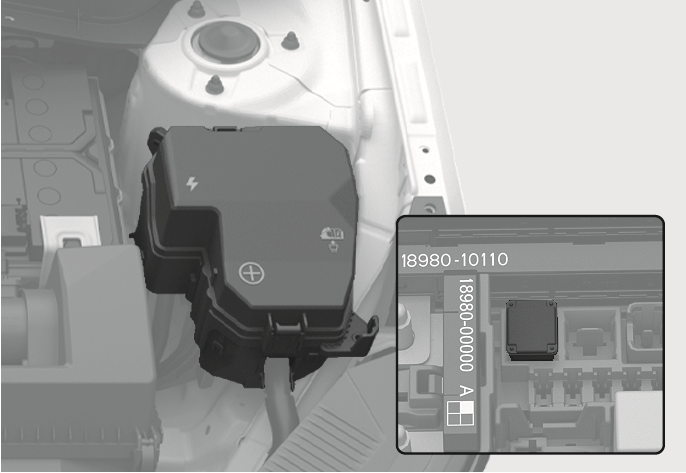

    Cartridge type

    2C_EngineRoomFuseReplacement_3

  5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it is not tight, we recommend that you contact an authorised HYUNDAI dealer.

Always securely install the fuse panel cover. Water may contact the fuse and cause an electrical failure.

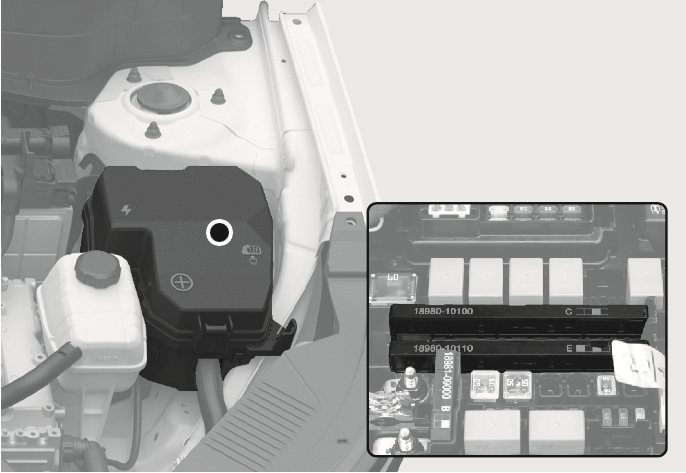

Multi fuse

2C_MultiTypeMainFuse

If the multi fuse or midi fuse is blown, contact an authorised HYUNDAI dealer.

If the multi fuse is blown, we recommend that you consult an authorised HYUNDAI dealer.
