Gauges and meters

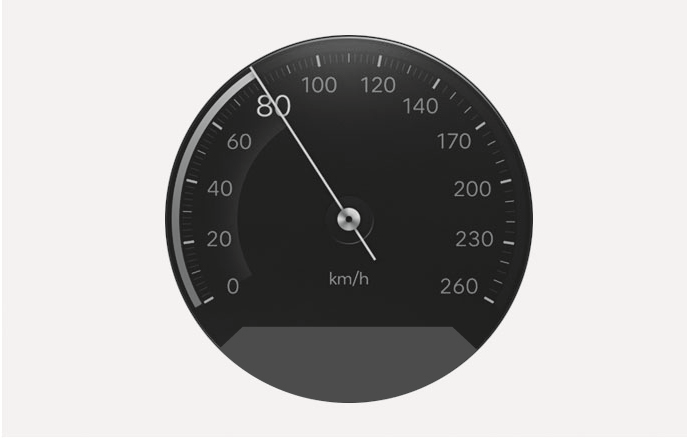

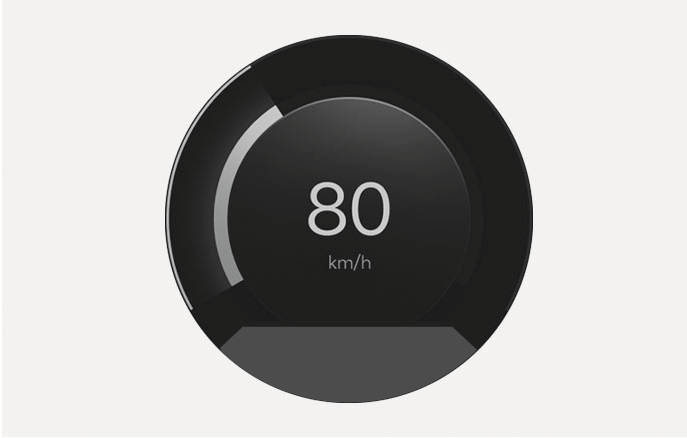

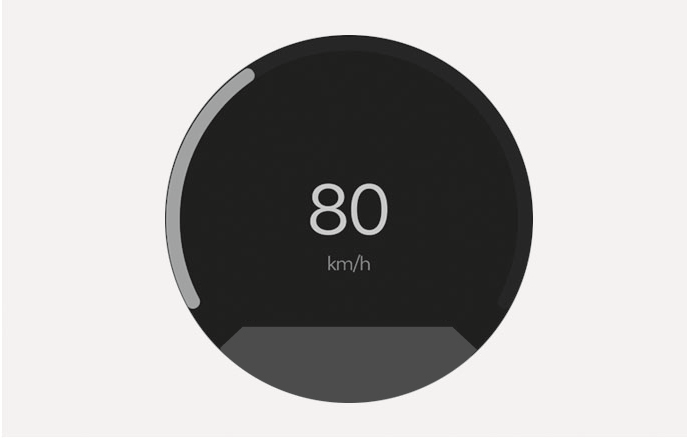

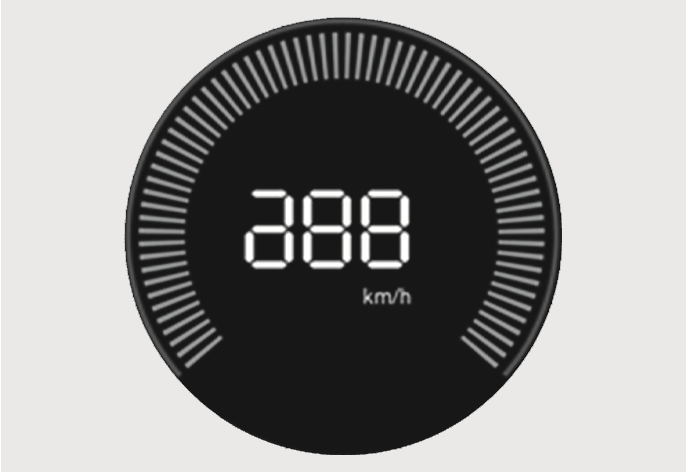

Speedometer

The speedometer indicates the speed of the vehicle and is calibrated in kilometres per hour (km/h).

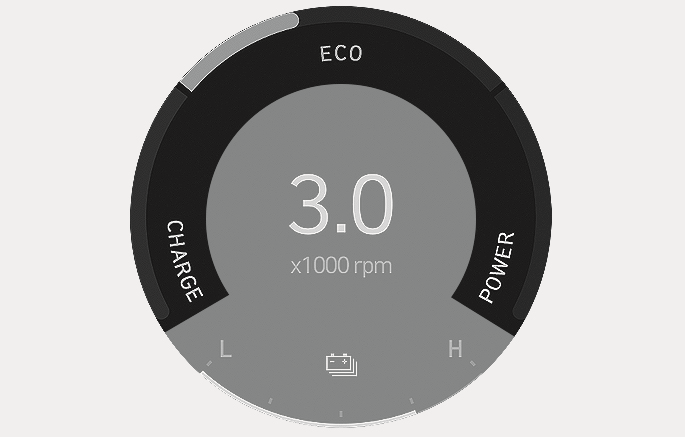

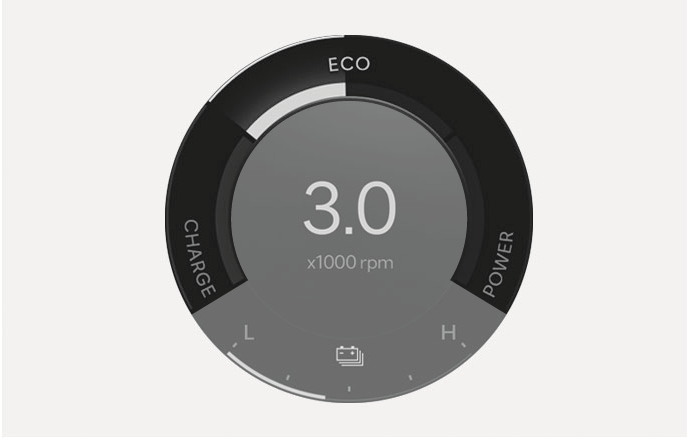

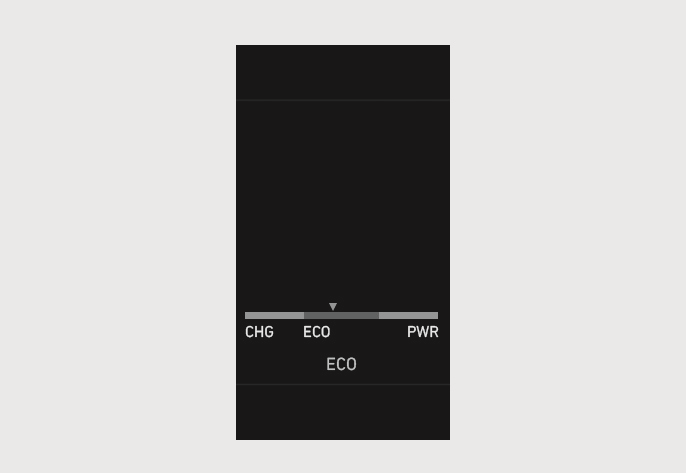

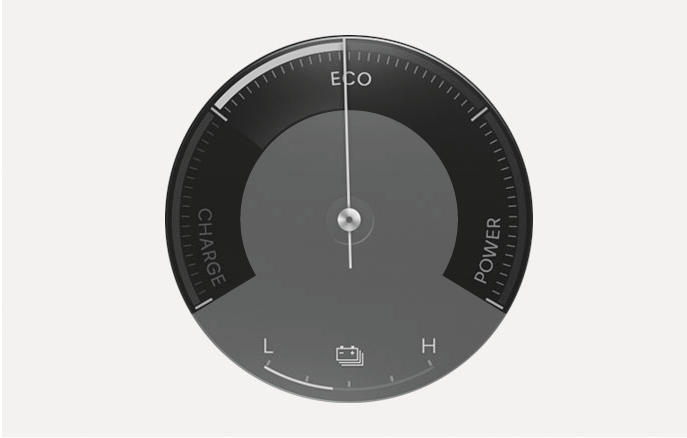

Charge/ECO/Power gauge

The hybrid system gauge indicates whether the current driving condition is fuel efficient or not.

CHARGE: Shows that the energy made by the vehicle is being converted to electrical energy. (Regenerated energy)
ECO: Shows that the vehicle is being driven in an Eco-friendly manner.
POWER: Shows that the vehicle is exceeding the Eco-friendly range.

According to the hybrid system gauge area, the EV indicator comes on or off.

EV indicator ON: The vehicle is driven using the electric motor or the petrol engine is stopped.
EV indicator OFF: The vehicle is driven using the petrol engine.

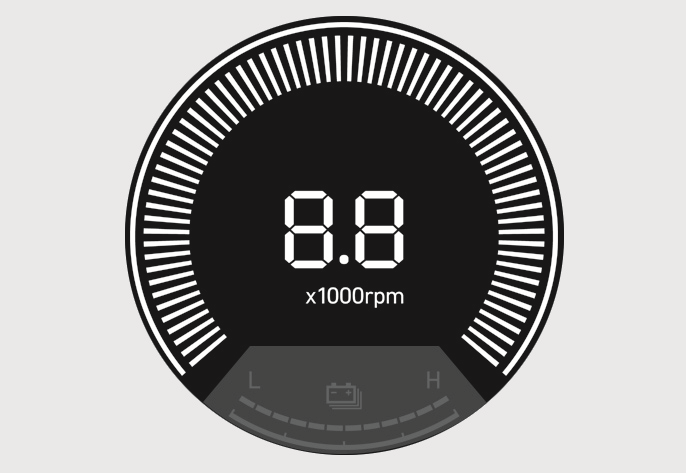

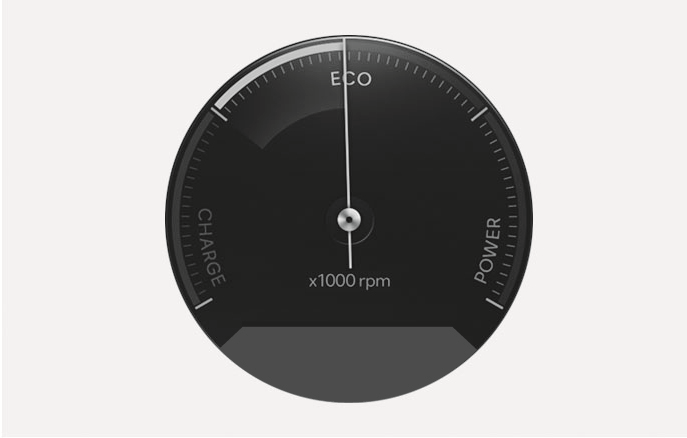

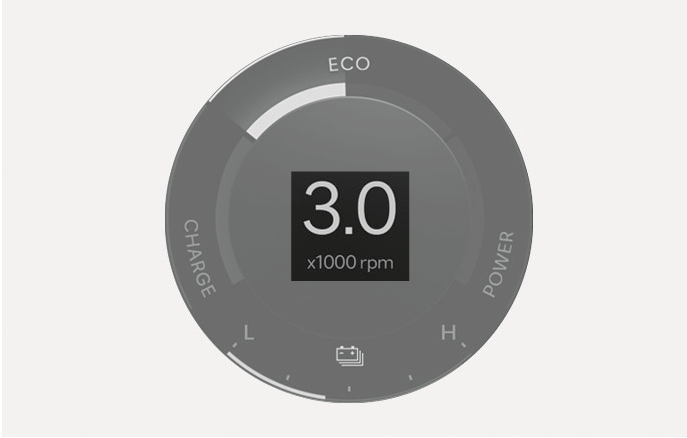

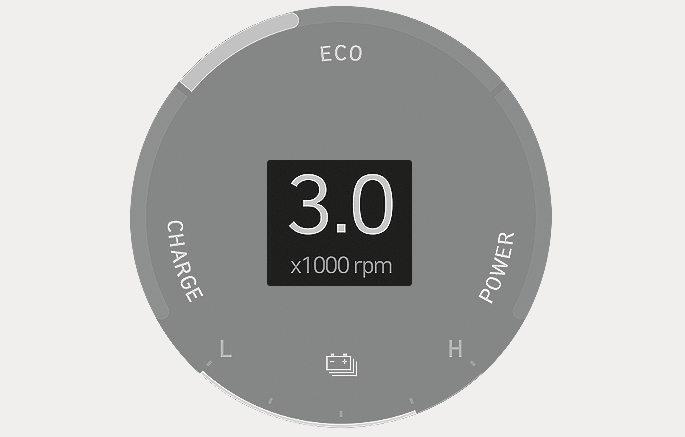

Tachometer

The tachometer indicates the approximate number of engine revolutions per minute (RPM).

Use the tachometer to select the correct shift points and to help prevent lugging and/or over-revving the engine.

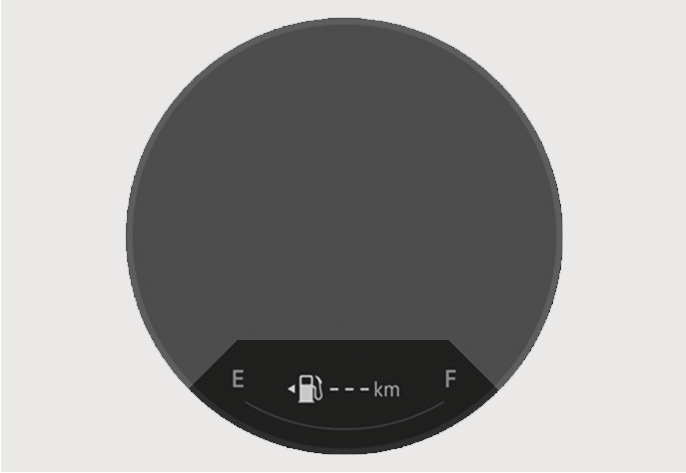

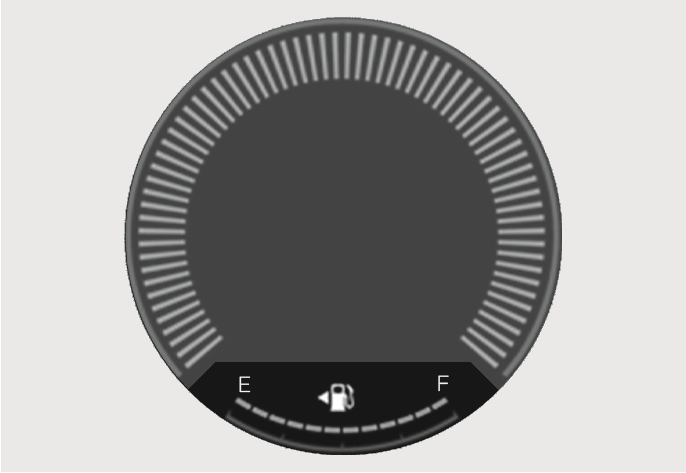

Fuel gauge

This gauge indicates the approximate amount of fuel remaining in the fuel tank.

The fuel tank capacity is given in chapter 2.
The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly empty.
On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may come on earlier than usual due to the movement of fuel in the tank.
More than 6 litres of fuel should be added to the vehicle for the fuel gauge to increase.

Always refuel the vehicle as soon as possible after the warning light comes on or when the gauge indicator comes close to “E (Empty)” level.

Avoid driving with an extremely low fuel level. Running out of fuel may cause the engine to misfire and cause damage to the catalytic converter.

If the vehicle is not shifted to P (Park) or N (Neutral) when refuelling, the amount of fuel and distance to empty may appear abnormally because fuelling may not be recognised.
The amount of fuel remaining may appear abnormally if fuelled when the vehicle is not on level ground or with the battery cable disconnected.

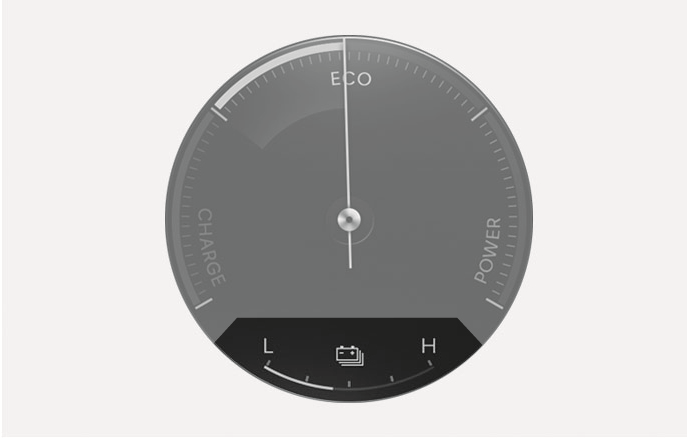

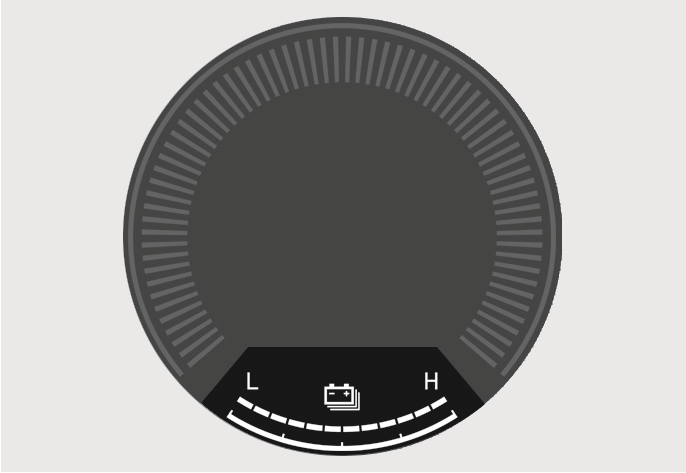

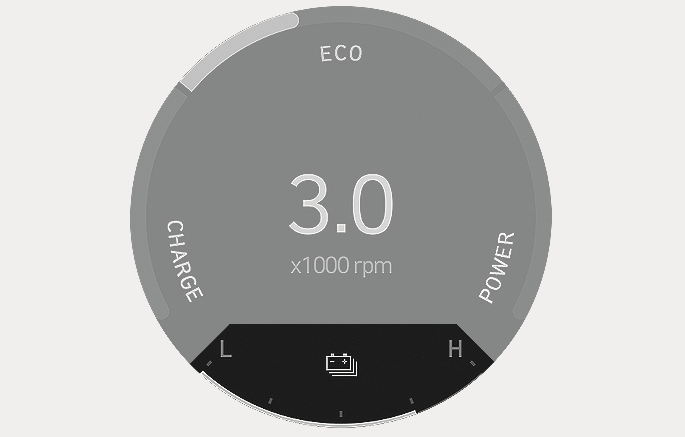

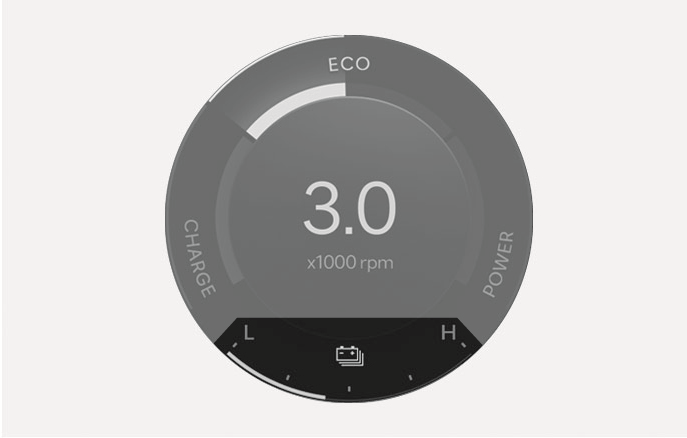

Hybrid battery SOC (State of Charge) gauge

This gauge indicates the remaining hybrid battery power. If the SOC is near the L (Low) level, the vehicle automatically operates the engine to charge the battery.

However, if the Service Indicator () and Malfunction Indicator Lamp (MIL) () turn on when the SOC gauge is near the L (Low) level, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

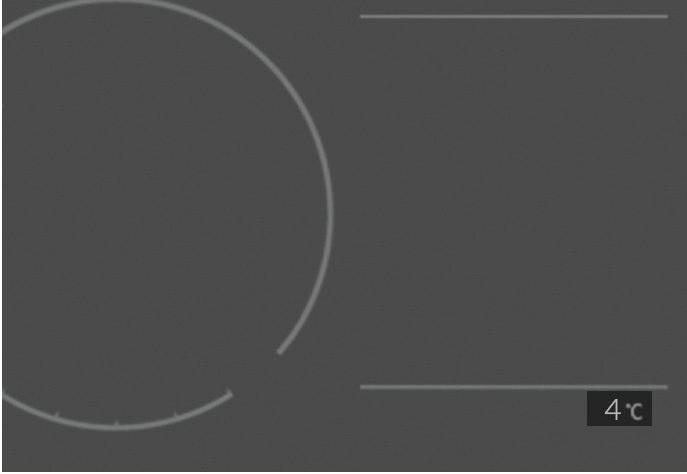

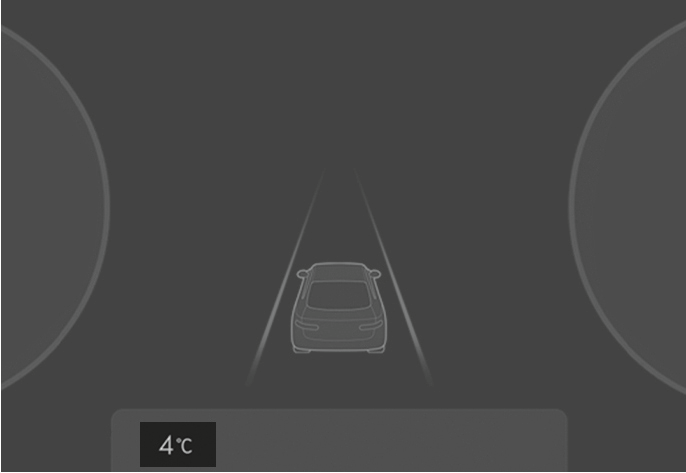

Outside temperature gauge

The outside ambient temperature appears in the lower portion of the instrument cluster display.

Note that the temperature indicated on the instrument cluster display may not change as quickly as the outside temperature (there may be a slight delay before the temperature changes).

You can change the temperature unit from the Settings menu in the infotainment system.

Select: Settings> General > Unit > Temperature unit > °C/°F

Both the temperature unit on the instrument cluster display and climate control screen will change.

The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.

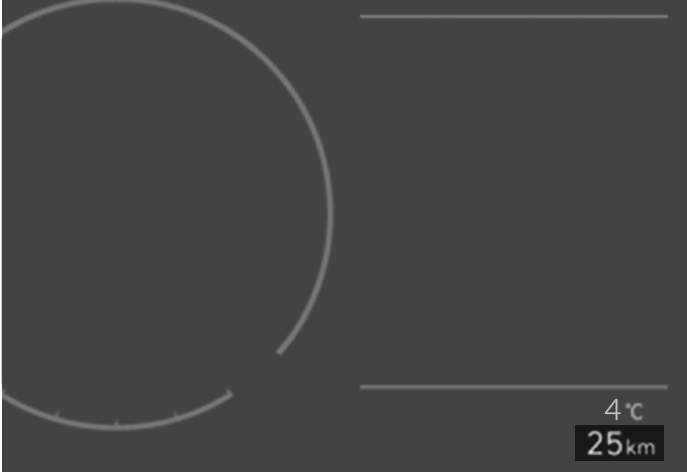

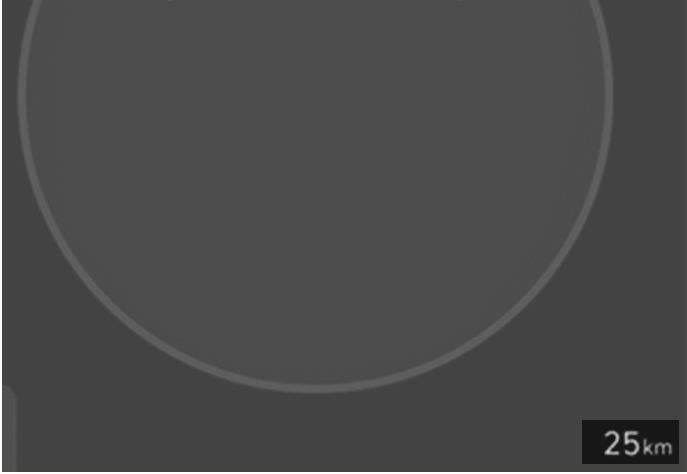

Odometer

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

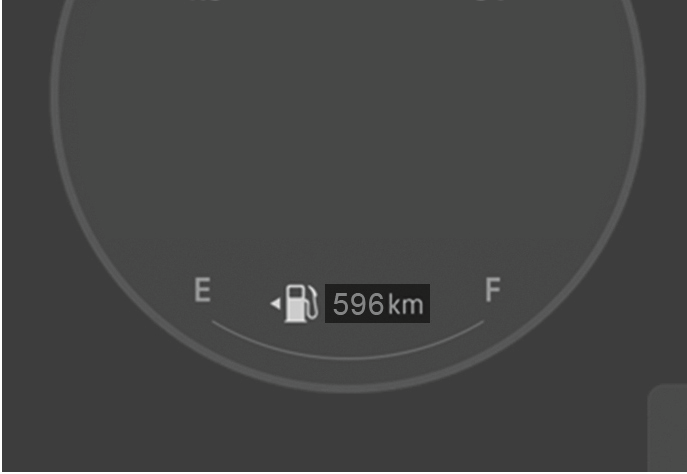

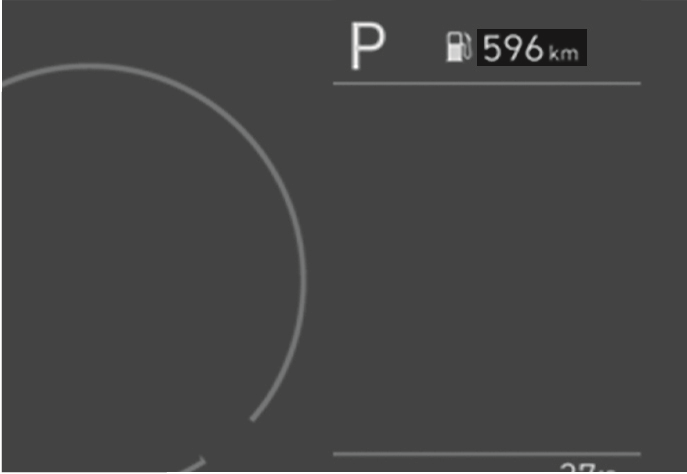

Distance to empty

The distance to empty is the estimated distance the vehicle can be driven with the remaining fuel.

If the estimated distance is below 1 km, the trip computer displays “---” as distance to empty.
The distance to empty indicator may not change accurately if less than 6 litres of fuel are added to the vehicle.
If the vehicle is not on level ground or the 12 V battery power has been interrupted, the distance to empty function may not operate correctly.

The distance to empty may differ from the actual driving distance as it is an estimate of the available driving distance.
The distance to empty may differ significantly based on driving conditions, driving habits, and condition of the vehicle.
If the remaining battery level is low, the driving distance may appear longer on the instrument cluster than the actual vehicle.

If the gearshift is not in P (Park) or N (Neutral) when refueling, fueling may not be recognized, and the fuel amount and the distance to empty may appear abnormally.
