Steep grade! Press brake pedal

2C_DCTWarningMessageInCluster

This message appears when the vehicle is driving up hills or on steep grades.

If the vehicle is held or creeping forward on an incline by applying the accelerator pedal, the clutch and transmission may result in damage.

Press the brake pedal, if the messages appears on the instrument cluster display.

Transmission temperature is high! Stop safely

2C_DCTWarningMessageInCluster_2

Repeated stop-and-go launches on steep grades, sudden take off or acceleration, or other harsh driving conditions may increase the clutch and transmission temperature.

If the clutch and the transmission temperature is high, the self-protection mode warns you with a warning chime and message whilst the shift indicator on the instrument cluster display blinks.

• Move the vehicle to a safe location and shift the gear to P (Park) with the engine running. Wait until the transmission is sufficiently cooled down.

• If you ignore this warning, you may experience abrupt shifts, frequent shifts, or jerkiness.

Transmission hot! Park with engine On

2C_ShiftOverheatStopVehicleInfo

If you continue to drive with an overheated transmission, the above warning message appears, and the self-protection mode disables the clutch.

• Move the vehicle to a safe location and shift the gear to P (Park) with the engine running. Wait until the transmission is sufficiently cooled down.

• If the above warning message is displayed continuously, we recommend that you contact an authorised HYUNDAI dealer.

Cooling... Remain parked for 00 min.

2C_DCTWarningMessageInCluster_3

If you move the vehicle to a safe location and shift the gear to P (Park) with the engine running, the above warning message appears.

• Wait until the clutch is sufficiently cooled down.

Transmission cooled down. Resume driving

2C_ShiftOverheatCanDriveInfo

This message appears when your vehicle can be driven.

Drive the vehicle smoothy as possible.

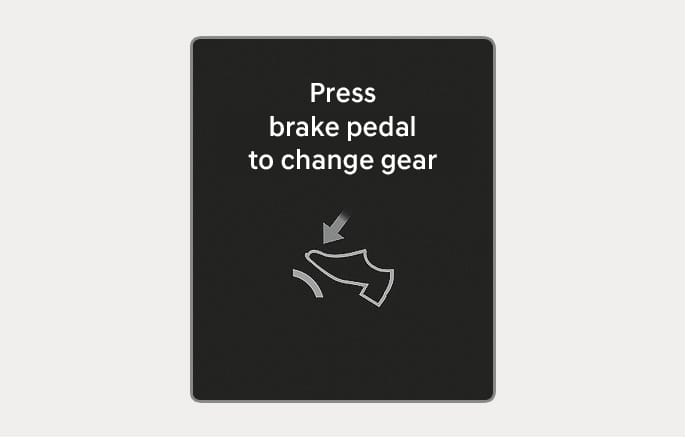

Press brake pedal to change gear

2C_PressureBreakPadalToChangeGearInfo

This message appears when the brake pedal is not pressed whilst shifting the gear.

Press the brake pedal and then shift the gear.

Shift to P after stopping

2C_ShiftToPAfterStoppingInfo

This message appears when the gear is shifted to P (Park) whilst the vehicle is moving.

Stop the vehicle before shifting to P (Park).

Check P button

2C_CheckShiftPButtonInfo

This message appears when there is a problem with the P button.

We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

Shifting system error

2C_ShiftSystemMalfuncitonoInfo

This message appears when the transmission or the shift dial does not properly operate in the P (Park) position.

We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

Check rotary gear shift dial

2C_CheckShiftButtonInfo

This message appears when there is a malfunction with the rotary gear shift dial.

We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

PARK button error! Engage parking brake when parking vehicle

2C_UnableToChangePInfo

This message appears when there is a problem with the P button.

We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.
