Automatic heating and air conditioning

The Automatic Climate Control System is controlled by setting the desired temperature.

For your convenience and to improve the efficiency of the climate control, use the AUTO button and set the temperature to 22°C.

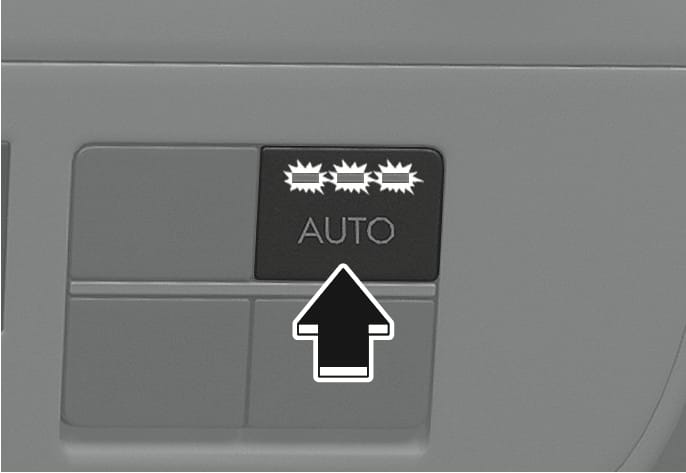

1. Press the AUTO button. The modes, blower speeds, air intake, and air conditioning are controlled automatically by the temperature setting.

   You can control the blower speed in three stages by pressing the AUTO button during automatic operation.

   • HIGH: Provides rapid air conditioning and heating with the maximum blower speed setting.

   • MEDIUM: Provides air conditioning and heating with the mid-level blower speed setting.

   • LOW: Blower speed is set to the lowest setting range.



   2C_AirconAutoButton

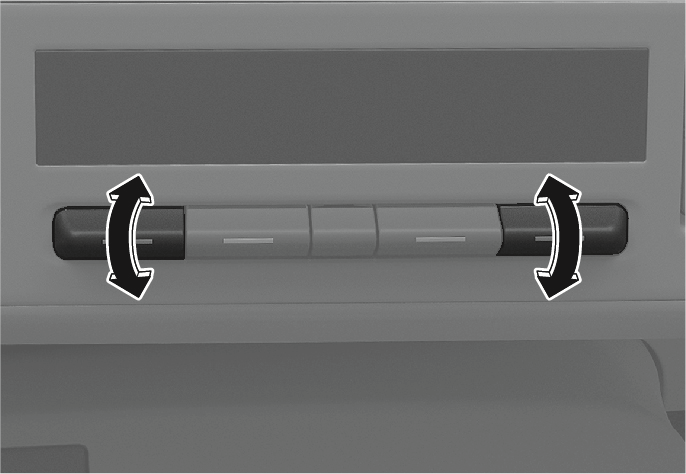

2. To select a different set point, turn the temperature control knob to the desired temperature. If the temperature is set to the lowest setting (Lo), the air conditioning system operates continuously. After the interior has cooled sufficiently, adjust the switch to a higher temperature set point whenever possible.



   2C_AirconTempButton

   To turn off the automatic operation, select any button from the following:

   • Mode selection button

   • Front windscreen defroster button (Press the button one more time to deselect the front windscreen defroster function. The ‘AUTO’ sign illuminates on the information display once again.)

   • Blower speed control switch

   • A/C button

   The selected function is controlled manually whilst other functions operate automatically.
