Fuse/relay panel description

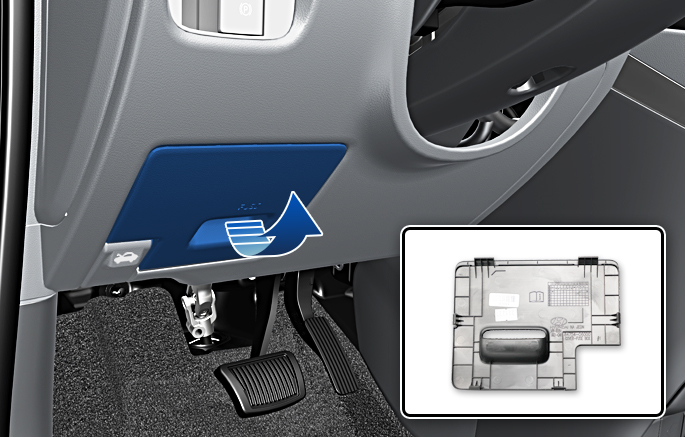

Instrument panel fuse panel

2C_InstrumentPanelFuseLabel

Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label.

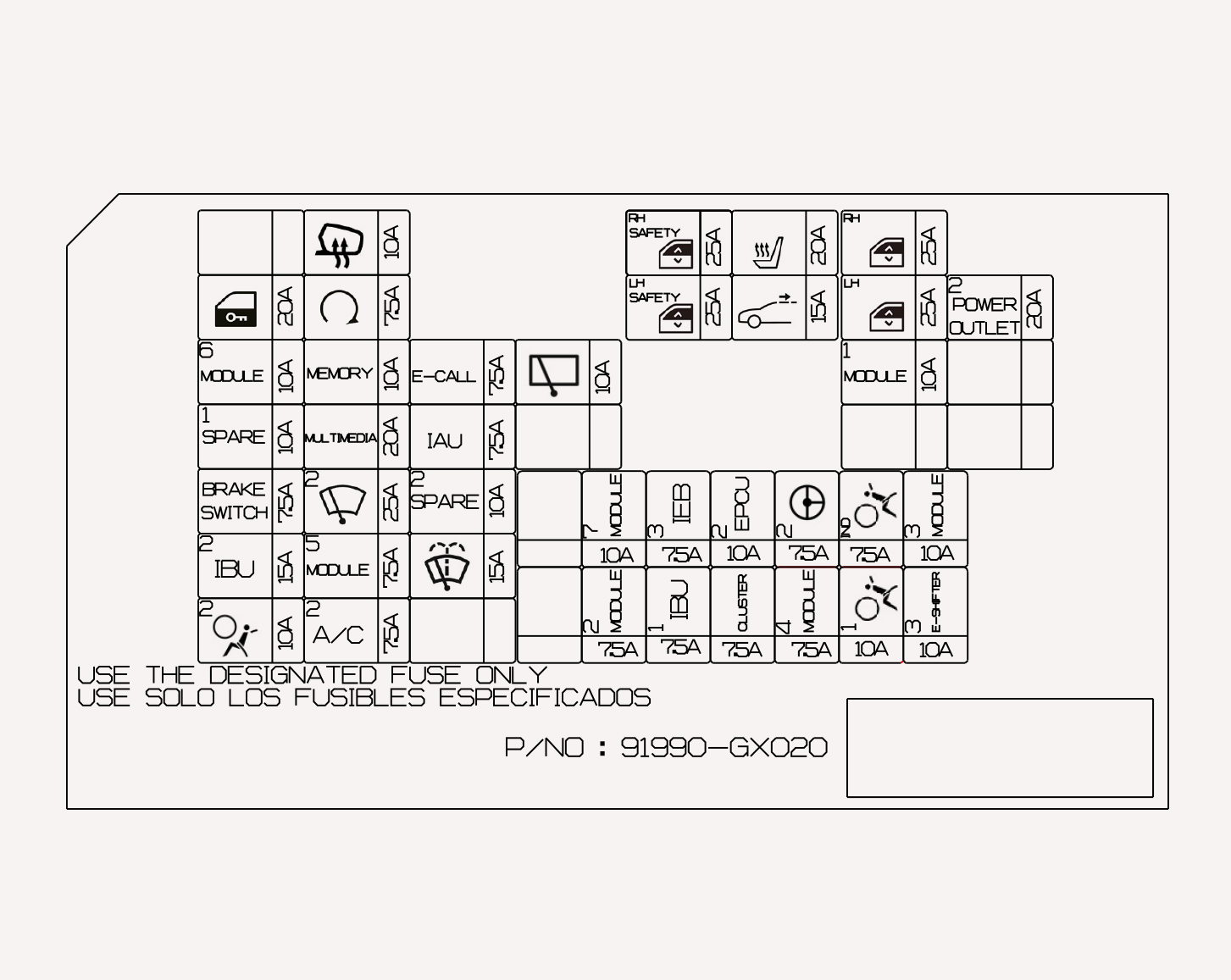

1C_InstrumentPanelFuseLabel_2

Instrument panel fuse panel

Fuse name

Symbol

Fuse rating

Circuit protected

DOOR LOCK

Е

20 A

Door Lock Relay, Door Unlock Relay

MODULE6

І

10 A

IBU, HAZARD_SW, ICC_UNIT, RAIN_SNSR, VESS_UNIT

BRAKE SWITCH

С

7.5 A

IBU, Stop Lamp Switch

IBU2

ὐ

15 A

IBU

AIRBAG2

Б

10 A

SRS Control Module

HEATED MIRROR

к

10 A

Driver/Passenger Power Outside Mirror, A/C Control Module

START

п

7.5 A

IBU, VCU

MEMORY

Ѿ

10 A

FATC, ADAS PARK, CLUSTER, MLM, O/S MIRR FOLD/UNFOLD RLY

MULTIMEDIA

Ӗ

20 A

AVN, DISPLAY AUDIO

WIPER FRT2

Ѥђ

25 A

FRT_WIPER_MTR, ER J/B (Wiper LOW Relay)

MODULE5

Ѕ

7.5 A

IBU, IAU

A/C2

у

7.5 A

A/C Control Module

E-CALL

Ὁ

7.5 A

E-CALL

IAU

Ὣ

7.5 A

IAU

WASHER

М

15 A

Multifunction Switch

WIPERRR

л

10 A

Rear Wiper Motor

MODULE7

Ї

10 A

A/C Control Module

MODULE2

Ђ

7.5 A

Stop Lamp Switch

IEB3

ѥѕ

7.5 A

IEB

IBU1

Ὅ

7.5 A

IBU

EPCU2

Ҟ

10 A

VCU

CLUSTER

Ч

7.5 A

Cluster Unit

MDPS 2

О

7.5 A

MDPS Unit

MOUDLE4

Є

7.5 A

IBU, IAU

AIRBAG IND

ҕ

7.5 A

A/C Control Module

AIRBAG 1

А

10 A

SRS Control Module

MODULE3

Ѓ

10 A

FRT RADAR, ADAS PARK, IBU, RR CORNER RADAR, MFC UNIT

E-SHIFTER3

Ф

10 A

SCU, SBW_LEVER

SAFETY P/WINDOW RH

Ӕ

25 A

[LHD] SAFETY_ECU_PASS

[RHD] SAFETY_ECU_DRV

SAFETY P/WINDOW LH

ӓ

25 A

[LHD] SAFETY_ECU_DRV

[RHD] SAFETY_ECU_PASS

S/HEATER

И

20 A

Seat Heater Control Module

SUNROOF

Л

15 A

Sunroof Glass Motor

P/WINDOW RH

ѝ

25 A

[LHD/RHD]P_WDW_MAIN_SW

[RHD]P_WDW_SW_PASS

P/WINDOW LH

ў

25 A

[LHD/RHD]P_WDW_MAIN_SW

[LHD]P_WDW_SW_PASS

MODULE 1

Ё

10 A

O_S_MIRR_SW, USB CHARGER, ADAS PARK, IBU, E-CALL UNIT, AVN, KEYBOARD, IAU

POWER OUTLET 2

ἔ

20 A

Power Outlet

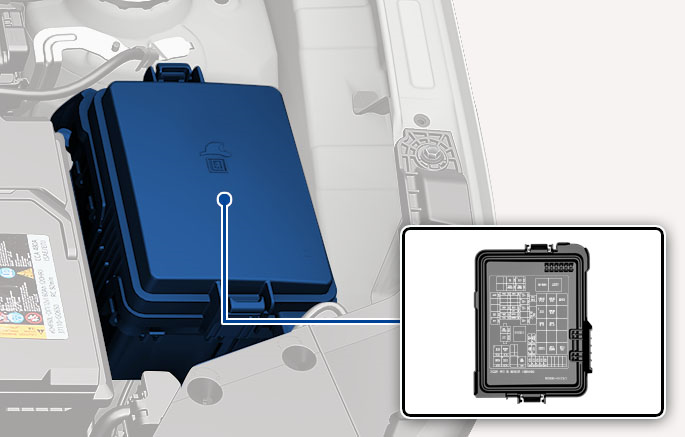

Motor compartment fuse panel (Motor compartment junction block)

2C_BatteryFuseLabel

Inside the fuse panel cover, you can find the panel label describing fuse names and ratings.

Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label.

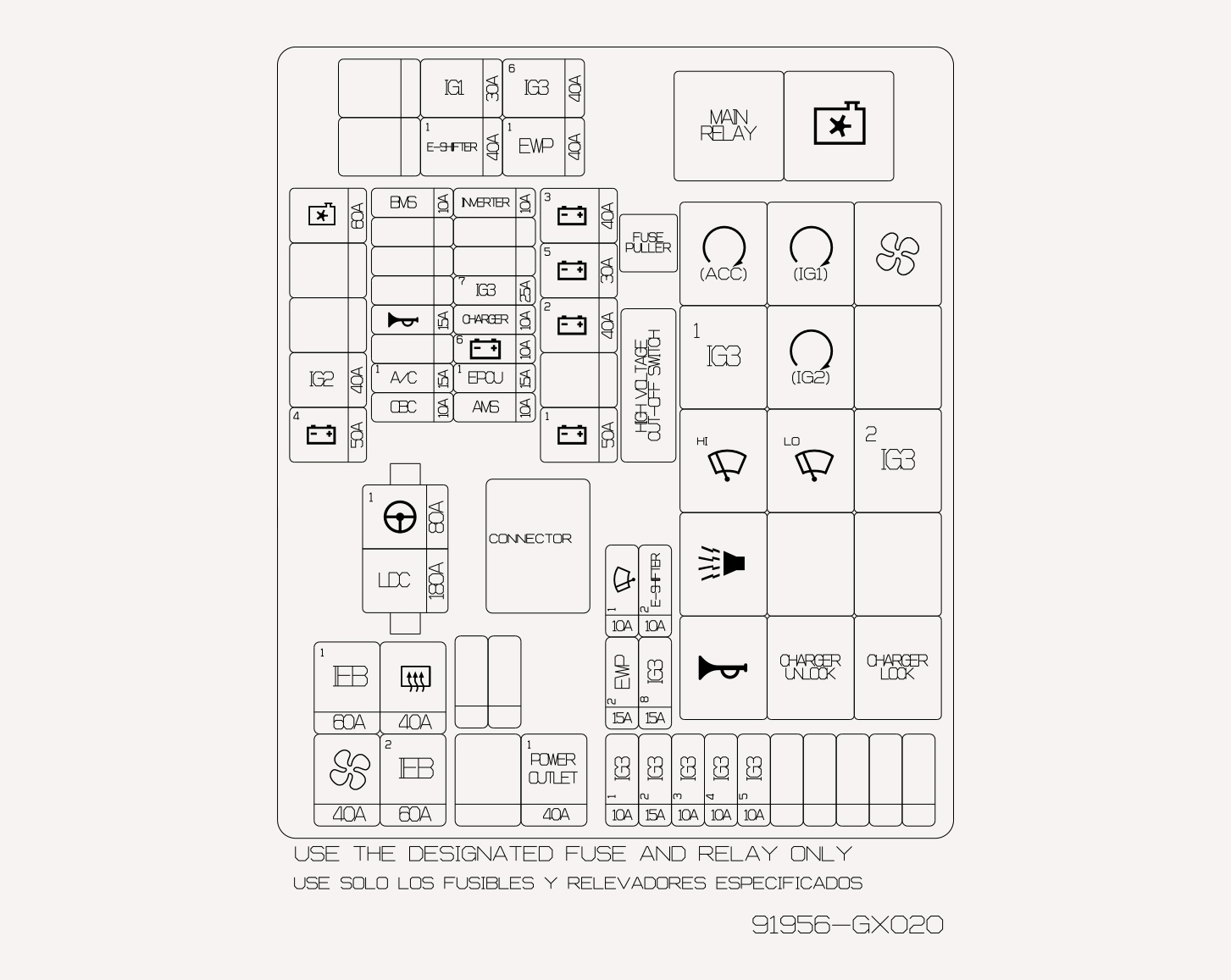

1C_EngineFuseLabel_1

Motor compartment fuse panel (Motor compartment junction block)

Type

Fuse name

Symbol

Fuse rating

Circuit protected

MULTI FUSE-1

MDPS 1

П

80 A

MDPS Unit

LDC

Э

180 A

ICCU

MULTI FUSE-1

IEB1

ѣѕ

60 A

IEB

BLOWER

и

40 A

E/R Junction Block (BLOWER RLY)

RR MIRR HTD

с

40 A

ICU(REAR HEATED RLY)

IEB 2

Ѥѕ

60 A

IEB

POWER OUTLET1

ҡ

40 A

ICU(POWER OUTLET RLY)

Motor compartment fuse panel (PCB block)

Fuse name

Symbol

Fuse rating

Circuit protected

COOLING FAN

р

60 A

PE ROOM J/B (COOLING FAN RLY)

IG2

а

40 A

PE ROOM J/B (IG2 RLY)

B+4

Ѧѓ

50 A

ICU

IG1

Я

30 A

PE ROOM J/B (ACC/IG1 RLY)

E-SHIFTER 1

Т

40 A

SCU

IG3 6

Ѩі

40 A

COOLANT_HUB

EWP 1

ѣє

40 A

COOLANT_HUB

BMS

ἁ

15 A

BMS

HORN

э

15 A

PE ROOM J/B (HORN RLY, B/ALARM HORN RLY)

A/C1

т

15 A

A/C Control Module

OBC

в

10 A

ICCU

INVERTER

Ѻ

10 A

INVERTER

IG3 7

ѩі

25 A

PE ROOM J/B (IG3 2 RLY)

CHARGER

ҟ

10 A

PE ROOM J/B (CHARGER UNLOCK RLY, CHARGER LOCK RLY)

B+6

ἒ

10 A

VCMS

EPCU 1

ҝ

15 A

VCU

AMS

Ю

10 A

12 V Battery Sensor

B+3

ѥѓ

40 A

ICU

B+5

ѧѓ

30 A

PE ROOM J/B (MAIN RLY)

B+2

Ѥѓ

40 A

ICU

B+1

ѣѓ

50 A

ICU

WIPER FRT 1

ѣђ

10 A

IBU

EWP2

Ѥє

15 A

COOLANT_3WAY_VALVE

IG3 1

ѣі

10 A

BMS

E-SHIFTER 2

У

10 A

SCU, SBW_LEVER

IG3 8

Ѫі

15 A

BATT_EXV, DEHUM_EXV, HEAT_PUMP_EXV, REF_3WAY_VALVE

IG3 2

Ѥі

15 A

VCMS

IG3 3

ѥі

10 A

VCU, INVERTER, SCU

IG3 4

Ѧі

10 A

ICCU

IG3 5

ѧі

10 A

PE J/B(BLOWER RLY, COOLING FAN RLY, IG3 1 RLY), E-COMP, V2L, ICU, FATC, PTC HTR, CLUSTER, AVN, SEAT ECU
