Automatic heating and air conditioning

The Automatic Climate Control System is controlled by setting the desired temperature.

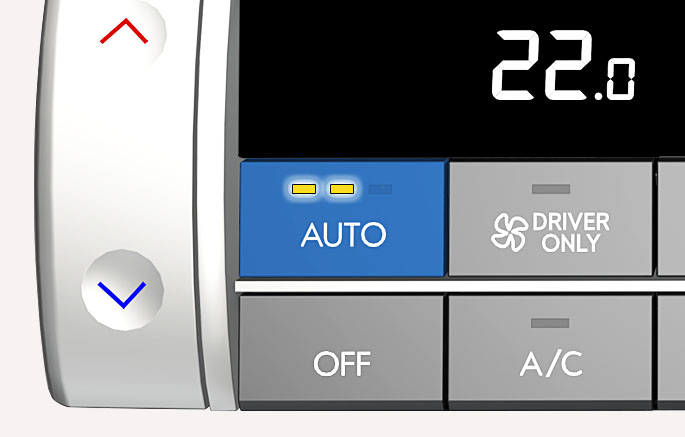

1. With the vehicle ON, press the AUTO button. The modes, fan speeds, air intake, and air conditioning are controlled automatically by the temperature setting.

   You can control the fan speed in three stages by pressing the AUTO button during automatic operation.

   • HIGH: Provides rapid air conditioning and heating with the maximum fan speed setting range.

   • MEDIUM: Provides air conditioning and heating with the mid-level fan speed setting range.

   • LOW: Fan speed is set to the lowest setting range.



   2C_AirconAutoButton

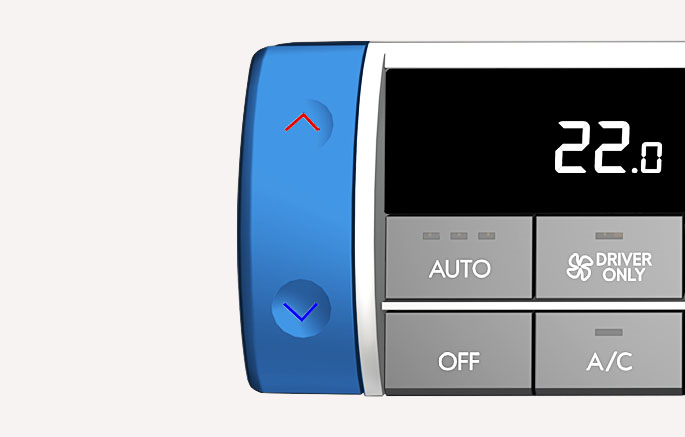

2. Push up or down the temperature control switch to set the desired temperature. If the temperature is set to the lowest setting, the air conditioning system operates continuously. After the interior has cooled sufficiently, adjust the switch to a higher temperature set point whenever possible.



   2C_AirconTempButton

   To turn off the automatic operation, select any switch of the following:

   • Mode selection switch

   • Front windshield defroster button

   • Fan speed control switch

   • Front windshield defroster

   The selected function is controlled manually while other functions operate automatically.

   For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 22 °C (72 °F).
