Interior light replacement

Map lamp, room lamp, vanity mirror lamp, mood lamp and cargo area lamp (LED type)

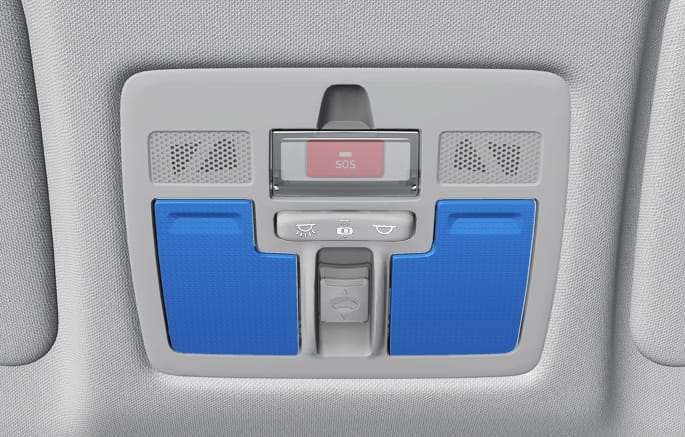

Map lamp

2C_MapLampLED

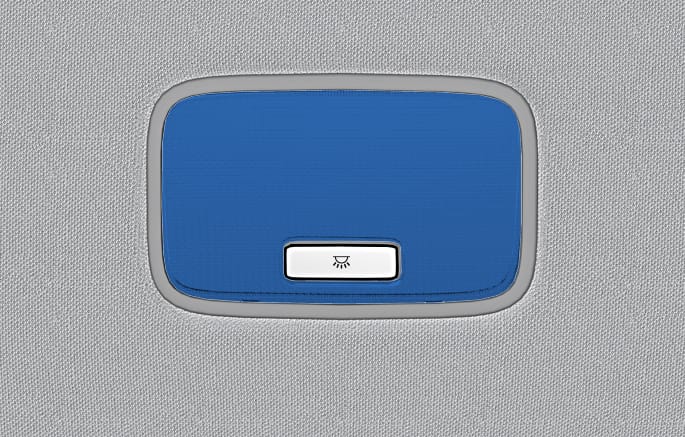

Room lamp

2C_RoomLampLED

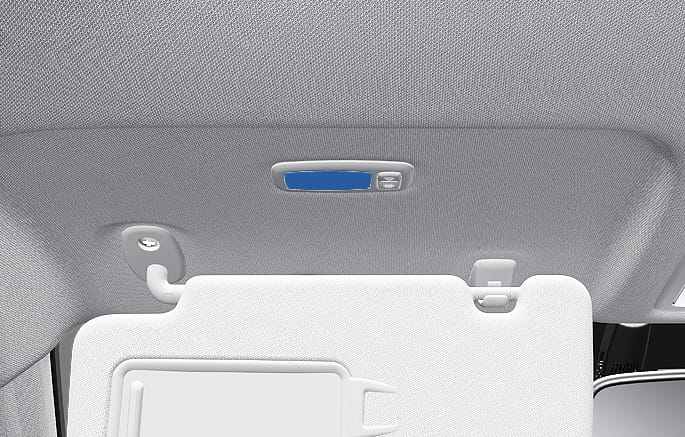

Vanity mirror lamp

2C_SunvisorLampLED

Mood lamp

2C_MoodLamp

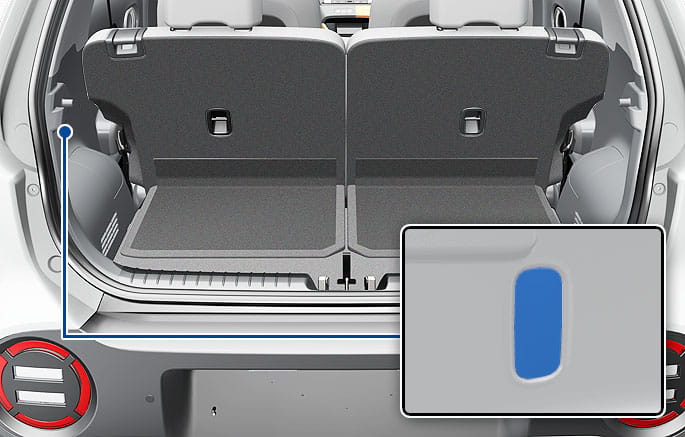

Cargo area lamp

2C_LuggageRoomLampLED

If the LED lamp does not operate, we recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

Map lamp, room lamp, vanity mirror lamp and cargo area lamp (Bulb type)

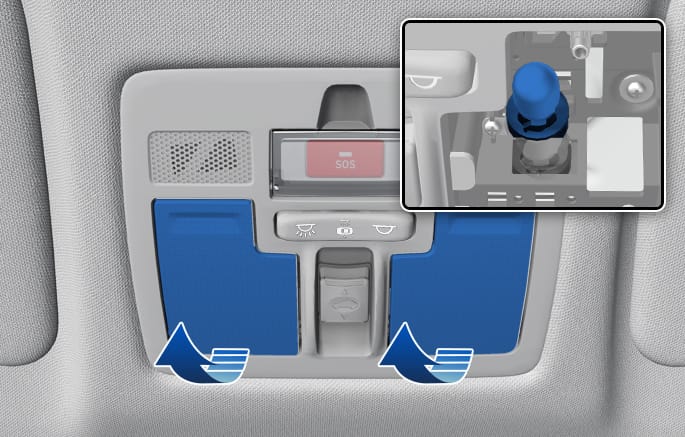

Map lamp

2C_MapLampBulb

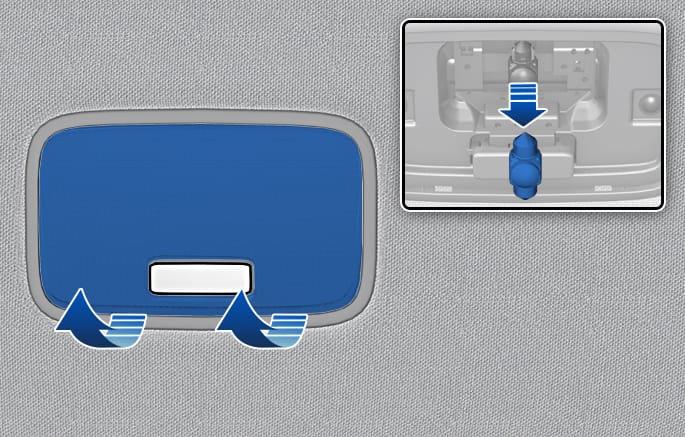

Room lamp

2C_RoomLampBulb

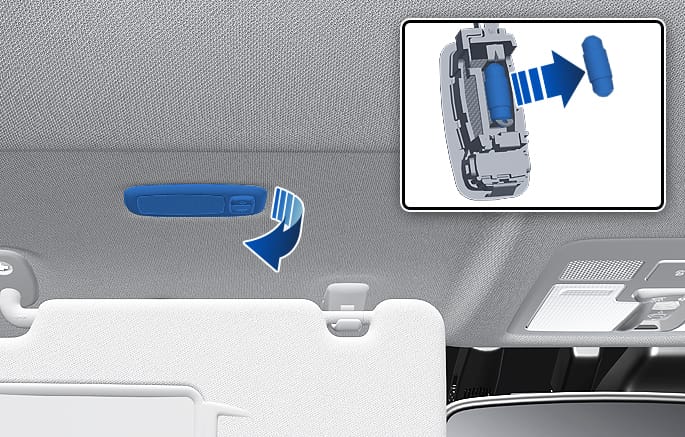

Vanity mirror lamp

2C_SunvisorLampBulb

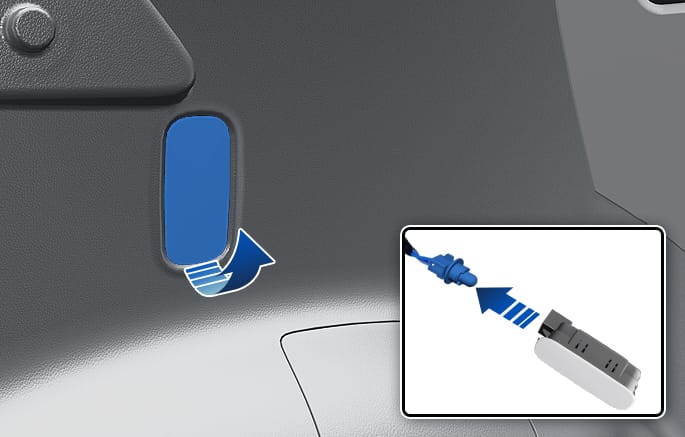

Cargo area lamp

2C_LuggagRoomLampBulb

  1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing.

  2. Remove the bulb by pulling it straight out.

  3. Install a new bulb into the socket.

  4. Align the lens tabs with the interior light housing notches and snap the lens into place.

Be careful not to damage the cover, tab, and plastic housing.
