Lighting control

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

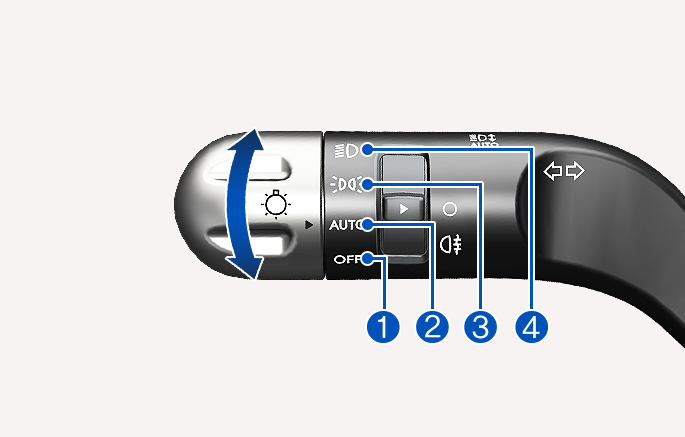

Type A

2C_LightSwitchOverview_2

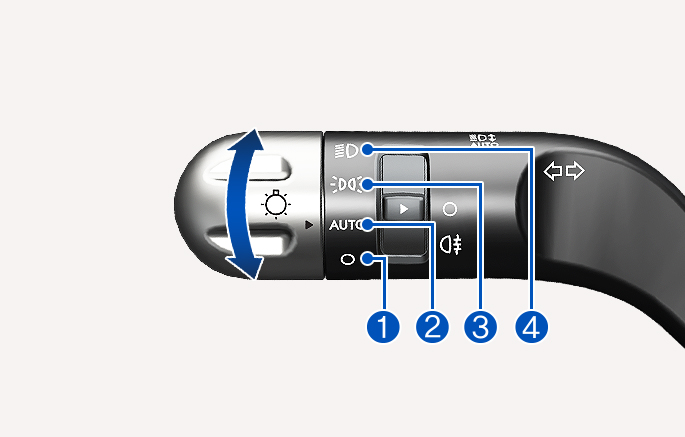

Type B

2C_LightSwitchOverview_1

Type C

2C_LightSwitchOverview_RHD

  1. OFF (O)
  2. AUTO light
  3. Position light
  4. Headlight

When your vehicle recognizes that you are driving in the nighttime or the Start/Stop button is in the ON position, the headlights, taillights, hazard lights, and license plate lights will automatically turn on regardless of the switch’s position.

You can turn off the automatically illuminated light when the following conditions are satisfied.

  • Turn the light switch to OFF after shifting the gear to P (Park).

  • Turn the light switch to OFF after engaging the parking brake.

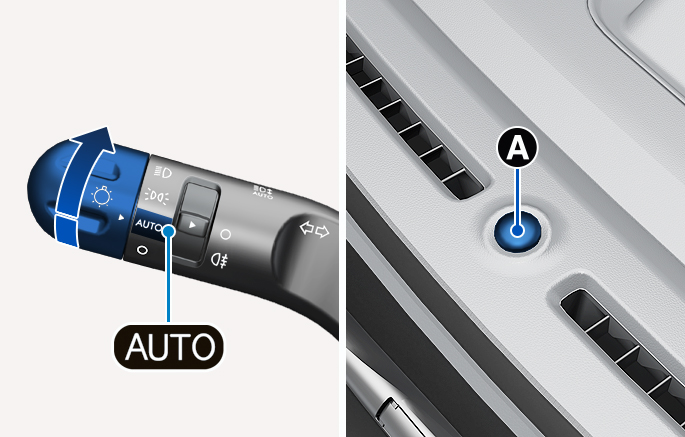

AUTO headlight

2C_LightSwitchAutoPosition

The position light and headlight are turned ON or OFF automatically depending on the amount of daylight as measured by the ambient light sensor [A] in front of the instrument panel.

Even with the AUTO headlight feature in operation, it is recommended to manually turn ON the headlights when driving at night or in a fog, driving in the rain, or when you enter dark areas, such as tunnels and parking facilities.

  • Do not cover or spill anything on the sensor [A] located in front of the instrument panel.

  • Do not clean the sensor using a window cleaner, the cleanser may leave a light film which could interfere with sensor operation.

  • If your vehicle window tint or other types of metallic coating on the front windshield, the AUTO headlight system may not work properly.

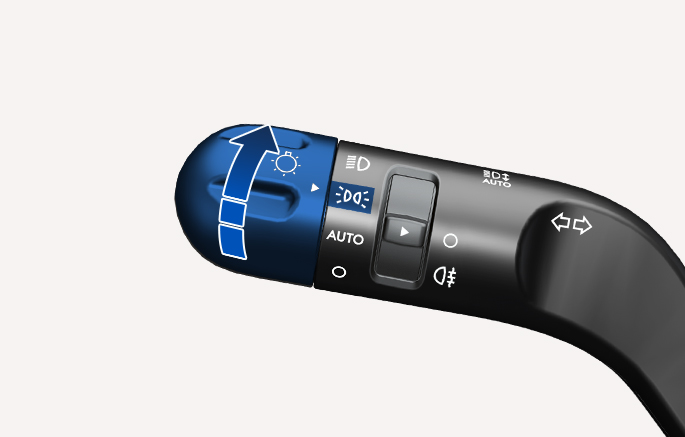

Position light (_)

2C_TailLampOn

The position light, license plate light, and instrument panel lamp are turned ON.

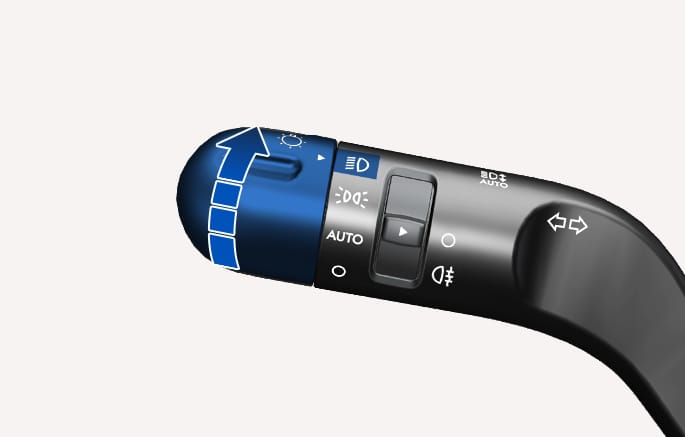

Headlight (^)

2C_HeadLampOn

The headlight, position light, license plate light and instrument panel lamp are turned ON.

The Start/Stop button must be in the ON position to turn on the headlight.
