Reverse Parking Collision-Avoidance Assist operation

Turning Parking Collision Avoidance Assist On/Off

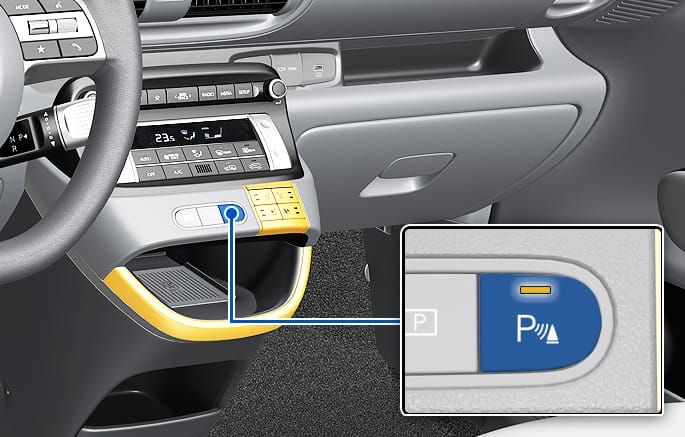

2C_ParkingSafetyButton

Press and hold the Parking Safety (ÿ) button more than 2 seconds, to turn the Parking Collision-Avoidance Assist on or off.

If you turn off the Parking Collision-Avoidance Assist, PCA cannot assist you. The driver should always be aware of the surroundings and drive safely.

Operating conditions

If Reverse Parking Collision-Avoidance Assist detects a risk of collision behind the vehicle with a pedestrian or an object, Reverse Parking Collision-Avoidance Assist warns the driver with an audible warning and warning message on the cluster. If Surround View Monitor is operating, a warning appears on the infotainment screen.

If collision is imminent, Reverse Parking Collision-Avoidance Assist assists you with braking.

Select "Backward Safety" from the "Parking safety" menu of the infotainment system. Parking Collision-Avoidance Assist is enabled when the following conditions are satisfied:

  • The tailgate and door are closed

  • The parking brake is released

  • The gear is shifted to R (Reverse)

  • Vehicle speed is below 10 km/h (6 mph) (detecting pedestrians)

  • Vehicle speed is below 4 km/h (2 mph) (detecting objects)

  • Parking Collision-Avoidance Assist components such as the rear view camera and the rear ultrasonic sensors are in normal conditions

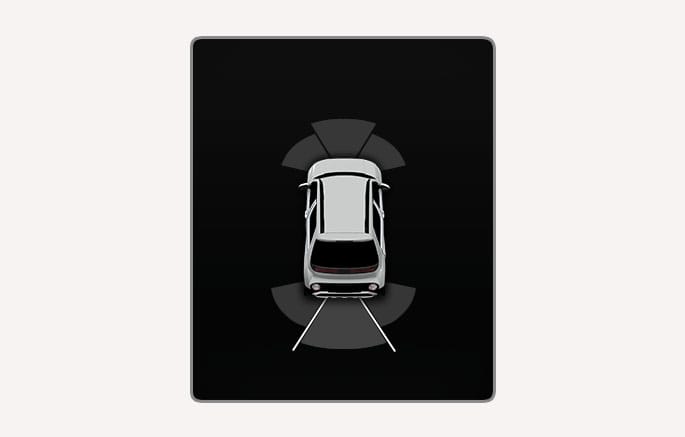

When Reverse Parking Collision-Avoidance Assist activates, a line appears behind the vehicle image in the instrument cluster.

2C_PCAOnInfo_3

Reverse Parking Collision-Avoidance Assist operates only once after shifting the gear to R (Reverse). To reactivate Parking Collision-Avoidance Assist, shift the gear from another gear to R (Reverse).

Off conditions

If collision is imminent, Reverse Parking Collision-Avoidance Assist assists you with braking. Braking assist is released after 5 minutes. Immediately depress the brake pedal and check vehicle surroundings. Braking assist is also released in the following conditions when:

  • The gear is shifted to P (Park) or D (Drive)

  • The brake pedal is depressed with sufficient power

When Parking Collision-Avoidance Assist is activated while reversing, braking control will be released after 5 minutes and the parking brake will be engaged.
