Removable Towing Hook

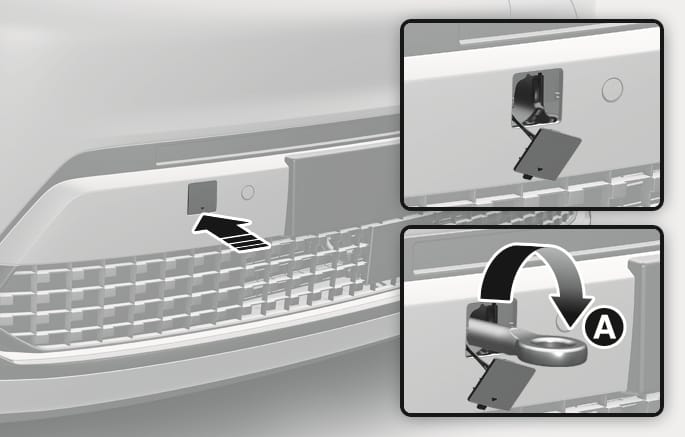

Front

2C_TowingHook

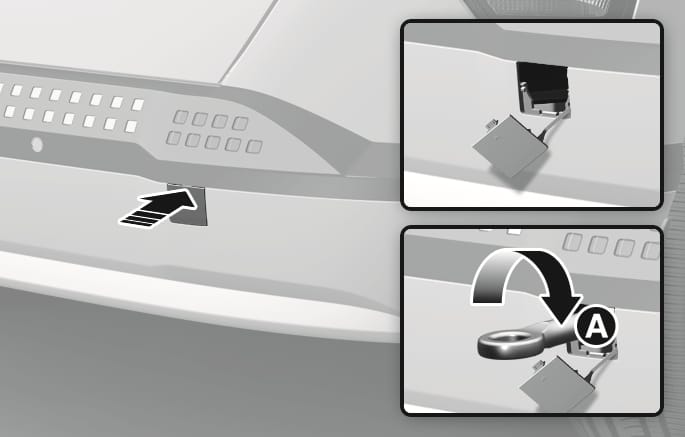

Rear

2C_TowingHook_2

  1. Open the liftgate, and remove the towing hook from the tool case.

  2. Remove the hole cover on the bumper.

    • Front: Push the lower part of the bumper hole cover.

    • Rear: Push the upper part of the bumper hole cover.

  3. Install the towing hook by turning it clockwise [A] into the hole until it is fully secured.

  4. Remove the towing hook and install the cover after use.

Failure to properly tighten the towing hook may result in vehicle damage and deformation of related parts.

Make sure the towing hook is tighten properly. If not, during towing the towing hook may be thrown off the vehicle resulting in serious injury or accident.
