Fuse/Relay Panel Description

Instrument panel fuse panel

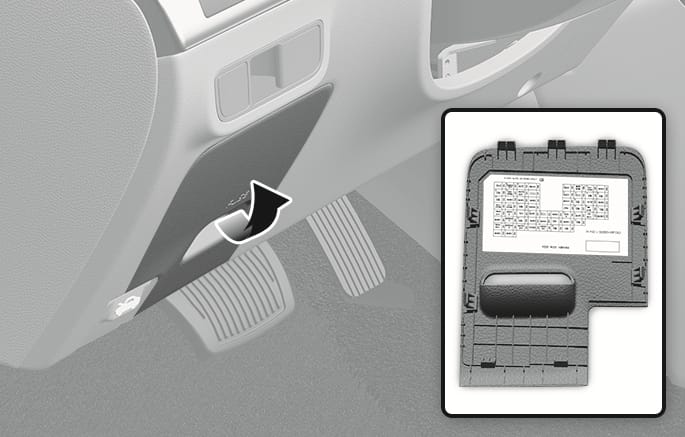

2C_InstrumentPanelFuseLabel

Inside the fuse panel cover, you can find the fuse label describing fuse names and ratings.

Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label.

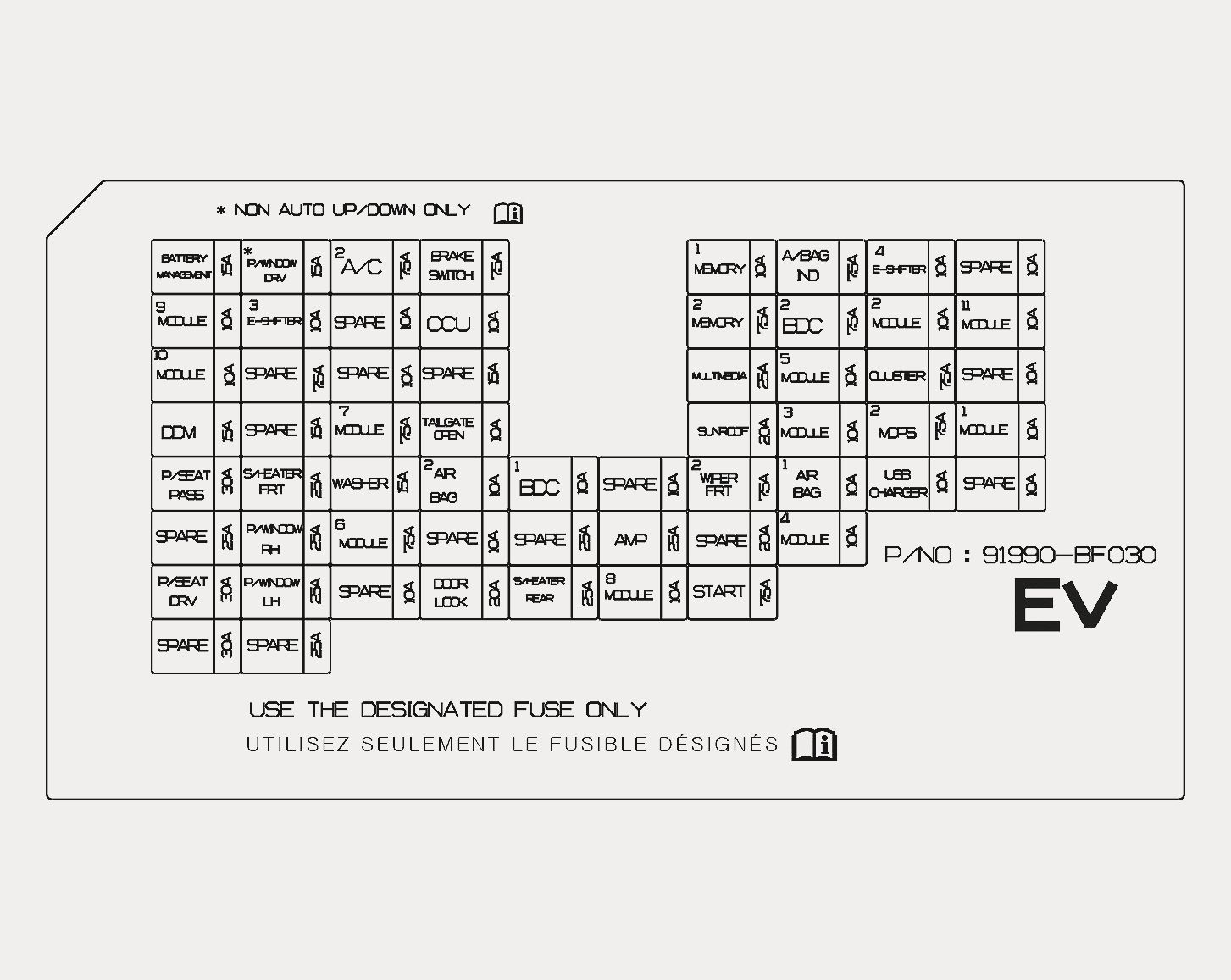

1C_InstrumentPanelFuseLabel_3

Instrument panel fuse panel

Fuse Name

Fuse Rating

Circuit Protected

BATTERY MANAGEMENT

15 A

BMU

P/WINDOW DRV

15 A

Motor Room Junction Block (RLY. 8, RLY. 13)

A/C 2

7.5 A

A/C Control Module

BRAKE SWITCH

7.5 A

BDC, Stop Lamp Switch

MEMORY 1

10 A

ADAS Unit (Parking), Driver/Passenger Door Mood Lamp, Cluster Unit, Mood Lamp, Mood Lamp Unit, A/C Control Module

A/BAG IND

7.5 A

PAB OFF IND

E-SHIFTER 4

10 A

SCU, Electronic ATM Shift Lever

MODULE 9

10 A

Rain Sensor, Data Link Connector, Hazard Switch, BDC

E-SHIFTER 3

10 A

SBW Lever

CCU

10 A

CCU

MEMORY 2

7.5 A

DCU

BDC 2

7.5 A

BDC

MODULE 2

10 A

Stop Lamp Switch, CCU

MODULE 11

10 A

CONSOLE SW(SEAT HEAT,VENT SW), CLUSTER, CCNC, A/CON, PTC

MODULE 10

10 A

-

MULTIMEDIA

25 A

CCNC Head Unit

MODULE 5

10 A

Crash Pad Switch, Head Lamp LH/RH, AMP, CCNC Head Unit, Data Link Connector, Electro Chromic Mirror

CLUSTER

7.5 A

Cluster Unit

DDM

15 A

Driver Power Outside Mirror, Driver door Module

MODULE 7

7.5 A

-

TAILGATE OPEN

10 A

PDC (Tail Gate Open Relay)

SUNROOF

20 A

Sunroof Blind Motor, Sunroof Glass Motor

MODULE 3

10 A

Driver Door Module, Smart Phone Wireless Charger Unit, Passenger Airbag IND. & Seat Belt Reminder Lamp

MDPS 2

7.5 A

MDPS Unit

MODULE 1

10 A

ADAS Unit (Parking), Front Console Keyboard, BDC, DCU, CCU, AMP, CCNC Head Unit

P/SEAT PASS

30 A

Passenger Power Seat Switch

S/HEATER FRT

25 A

Front Air Ventilation Control Module, Seat Heater Control Module

WASHER

15 A

Multifunction Switch

AIRBAG 2

10 A

SRS Control Module

BDC 1

10 A

BDC

WIPER FRT 2

7.5 A

BDC, PCB Block (Wiper LOW Relay)

AIRBAG 1

10 A

SRS Control Module, ODS

USB CHARGER

10 A

Front USB Charger Connector, Rear USB Charger Connector

P/WINDOW RH

25 A

Rear Power Window Switch RH, Passenger Safety Power Window Module, Passenger Power Window Switch

MODULE 6

7.5 A

BDC

AMP

25 A

AMP

MODULE 4

10 A

ADAS Unit (Parking), Rear Corner Radar LH/RH, Front View Camera, Crash Pad Switch, ADAS UNIT (DRV)

P/SEAT DRV

30 A

Driver Power Seat Switch

P/WINDOW LH

25 A

Rear Power Window Switch LH, Driver Safety Power Window Module

DOOR LOCK

20 A

PDC (Door Lock/Unlock Relay)

S/HEATER REAR

25 A

Seat Heater Control Module

MODULE 8

10 A

Driver/Passenger Smart Key Outside Handle, VESS Unit, Power Tailgate Module

START

7.5 A

BDC, VCU

Motor compartment fuse panel (Motor compartment junction block)

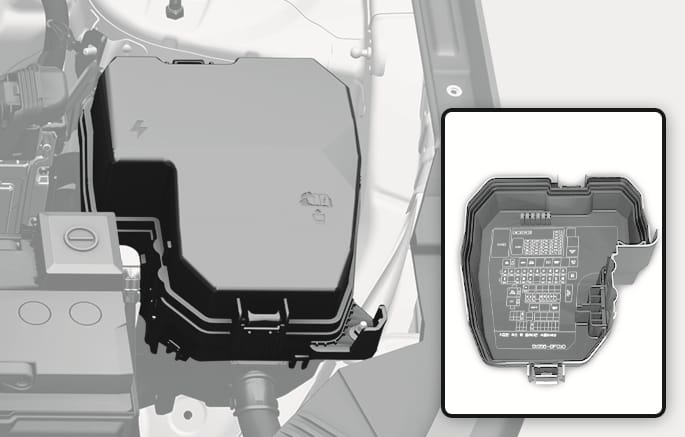

2C_EngineFuseLabel

Inside the fuse panel cover, you can find the fuse label describing fuse names and ratings.

Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label.

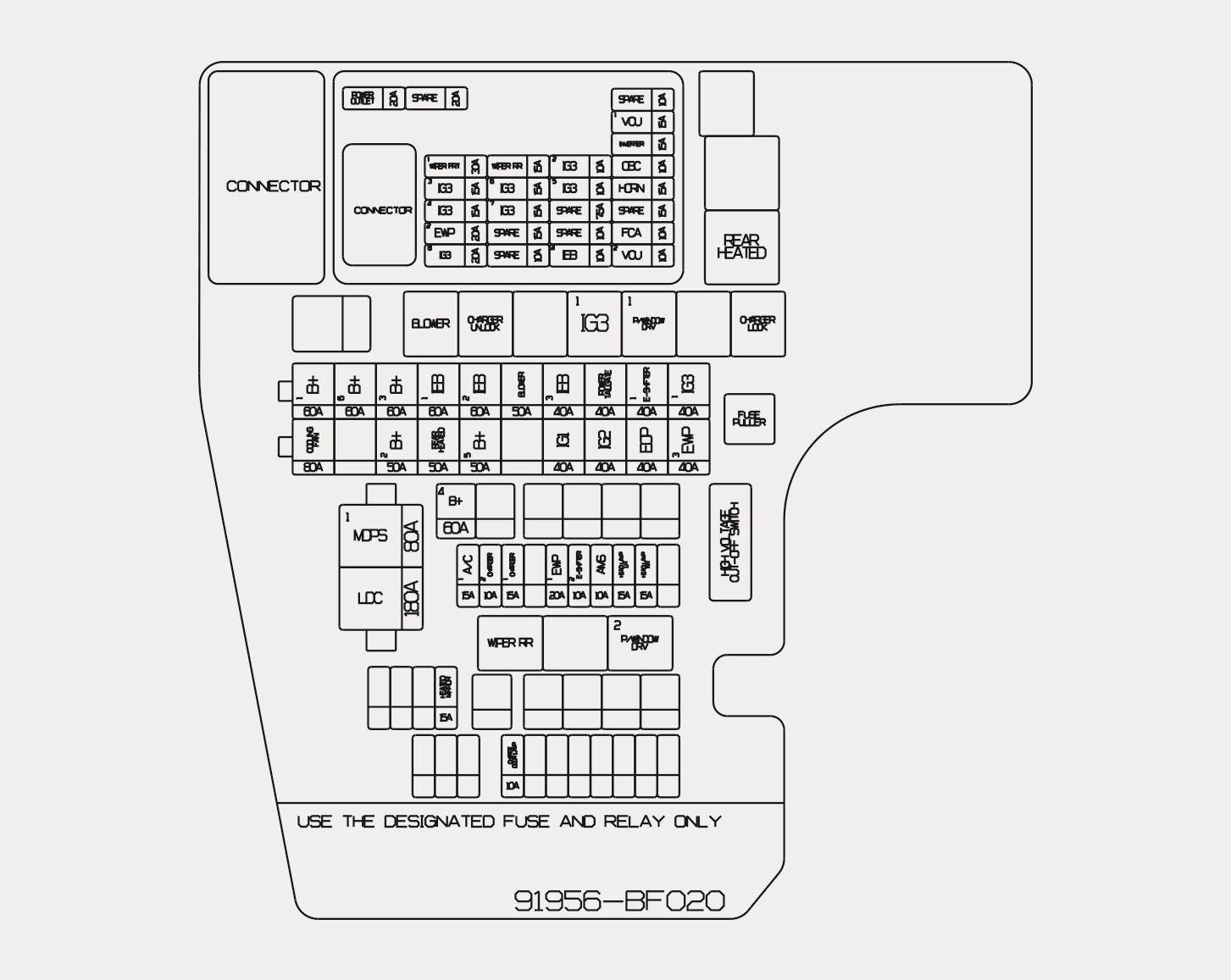

1C_EngineFuseLabel_3

Motor compartment fuse panel (Motor compartment junction block)

Type

Fuse name

Fuse rating

Circuit protected

MULTI FUSE-1

MDPS 1

80 A

MDPS Unit

LDC

180 A

CHARGE DOOR LAMP

MULTI FUSE-2

COOLING FAN

80 A

Cooling Fan Controller

B+2

50 A

PDC (IPS9 (4CH), IPS11 (2CH), IPS12 (4CH))

REAR HEATED

50 A

Motor Room Junction Block (RLY. 3)

B+5

50 A

PDC (Fuse - F29, F36, F48, F56)

IG1

40 A

PCB Block (ACC Relay, IG1 Relay)

IG2

40 A

PCB Block (IG2 Relay)

EOP

40 A

Front Electronic Oil Pump

EWP 3

40 A

Electronic Water Pump & Coolant Valve

MULTI FUSE-3

B+1

60 A

PDC (IPS3 (4CH), IPS7 (2CH), IPS4 (1CH), IPS2 (2CH), IPS6 (2CH), IPS5 (1CH))

B+6

60 A

PCB Block (IG3 Main Relay, Wiper Front Relay, Fuse - F19, F20, F21, F22, F23)

B+3

60 A

PDC (Fuse - F1, F2, F9, F10, F17, F25, F26, F33, F34, F44, F51, F52)

IEB 1

60 A

IEB

IEB 2

60 A

IEB

BLOWER

50 A

Motor Room Junction Block (RLY. 4)

IEB 3

40 A

Multipurpose Check Connector

POWER TAILGATE

40 A

Power Tailgate Module

E-SHIFTER 1

40 A

SCU

IG3 1

40 A

COOLANT HUB RLY (Motor Room Junction Block (RLY. 7))

FUSE

B+4

60 A

PDC (Fuse - F4, F12, F28, F37, F54, F55, IPS13 (1CH), Long Term Load Latch Relay)

A/C 1

15 A

A/C Control Module, BATT EXV

CHARGER 2

10 A

CHARGE LOCK/UNLOCK RLY (Motor Room Junction Block (RLY. 5, 10))

CHARGER 1

15 A

CDM

EWP 1

20 A

EWP

E-SHIFTER 2

10 A

SCU

AMS

10 A

12 V Battery Sensor

HEAD LAMP LH

15 A

Head Lamp LH

HEAD LAMP RH

15 A

Head Lamp RH

HEATED MIRROR

15 A

Driver/Passenger Power Outside Mirror

CHARGE DOOR LAMP

10 A

CHARGE DOOR LAMP

Motor compartment fuse panel (PCB block)

Fuse Name

Fuse Rating

Circuit Protected

POWER OUTLET

20 A

Power Outlet

WIPER FRT 1

30 A

PCB Block (Wiper Front Low Relay), Front Wiper Motor

IG3 3

15 A

VCU, INVERTER

IG3 4

15 A

SCU

EWP 2

20 A

EWP

IG3 8

20 A

PDC (Fuse – F16)

WIPER RR

15 A

Motor Room Junction Block (RLY.11), Rear Wiper Motor

IG3 6

15 A

3 WAY VALVE, EOP

IG3 7

15 A

VCMS, ICCU, CCU, CDM

IG3 2

10 A

BMS

IG3 5

10 A

E-COMP, COOLING FAN, Motor Room Junction Block (RLY.7)

IEB 4

10 A

IEB, Multipurpose Check Connector

VCU 1

15 A

VCU

INVERTER

15 A

INVERTER

OBC

10 A

VCMS, ICCU

HORN

15 A

PCB Block (Horn Relay)

FCA

10 A

Front Radar Unit

VCU 2

10 A

VCU
