Headlight, Parking Light, Turn Signal Light, Daytime Running Light (DRL) Replacement

Type A

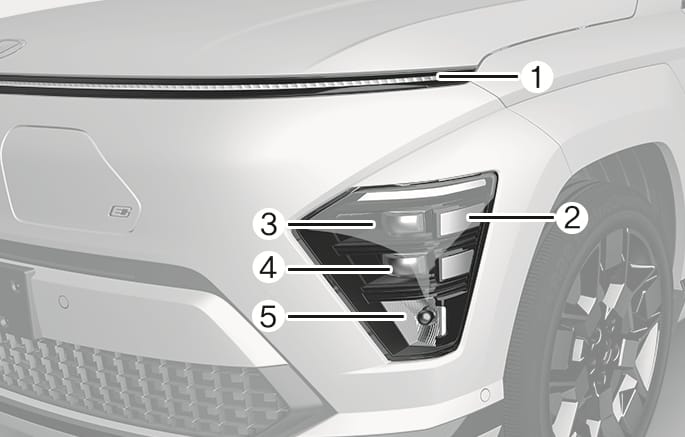

2C_FrontLampOverViewBulb

  1. Parking light/Daytime Running Light (DRL)
  2. Front side marker
  3. Headlight (Low)
  4. Headlight (High, Sub Low)
  5. Turn signal light

If the LED light does not operate, contact an authorized HYUNDAI dealer for replacement.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

Replacing turn signal light

  1. Apply the parking brake and turn off the vehicle.

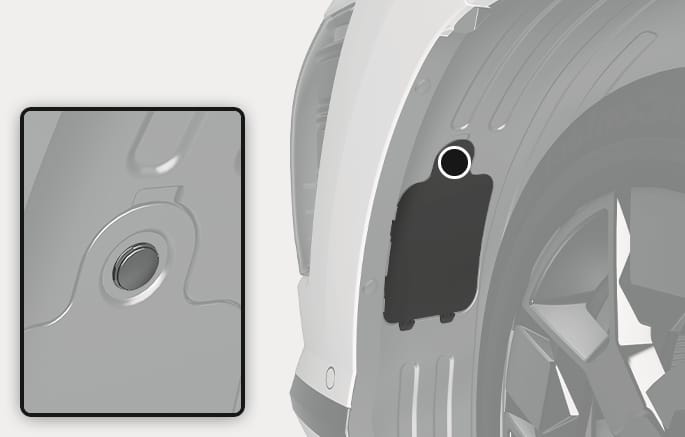

  2. Turn the wheel inwards and remove the clip on the service cover located on the back side of the bumper by using a flat-blade screwdriver.

    2C_TurnSignalLampChange

  3. Remove the service cover.

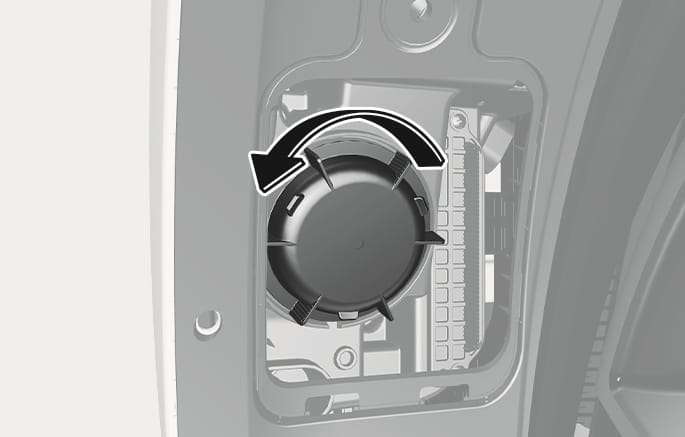

  4. Remove the socket cover by turning it counterclockwise.

    2C_TurnSignalLampChange_2

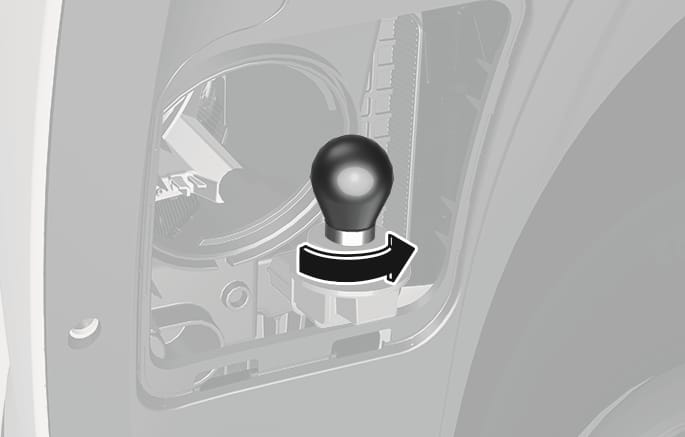

  5. Remove the bulb from the socket by pushing it in and rotating it counterclockwise.

    2C_TurnSignalLampChange_3

  6. Install a new bulb and reinstall in the reverse order.

Type B

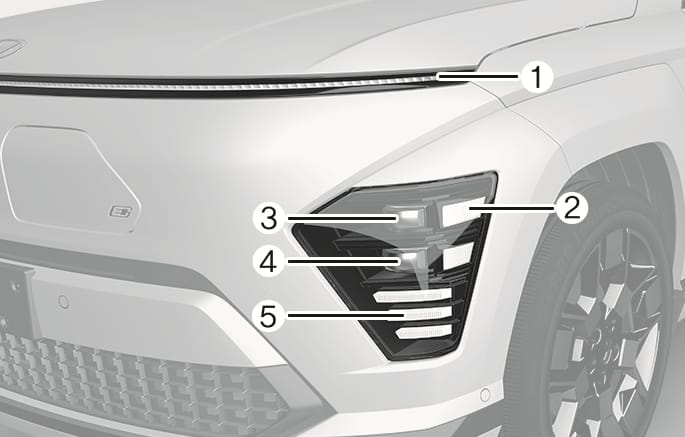

2C_FrontLampOverViewLED

  1. Parking light/Daytime Running Light (DRL)
  2. Front side marker
  3. Headlight (Low)
  4. Headlight (High, Sub low)
  5. Turn signal light

If the LED light does not operate, contact an authorized HYUNDAI dealer for replacement.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.
