State of Charge (SOC) Gauge for High Voltage Battery

2C_BatteryLevelGauge

  • The SOC gauge shows the charging status of the high voltage battery.

  • The low percentage number on the indicator indicates that there is not enough energy in the high voltage battery. 100 % indicates that the high voltage battery is fully charged.

  • When driving on highways, make sure to check in advance if the high voltage battery is charged enough.

  1. When the remaining battery is lower than 10 % on the SOC gauge, the High Voltage Battery Level (ª) warning light Illuminates, to alert you of the battery level.

  2. When the High Voltage Battery Level (ª) warning light Illuminates, the vehicle can drive an additional 18-25 mi. (30-40 km) depending on the driving speed, heater/air conditioner, weather, driving style, and other factors. Charging is required.

When the high voltage battery level is low, the Power Down (®) indicator light illuminates and the vehicle power is limited.

Charge the battery immediately since your vehicle may not be driven, or may roll back on a slope with the indicator light illuminated.

Outside temperature gauge

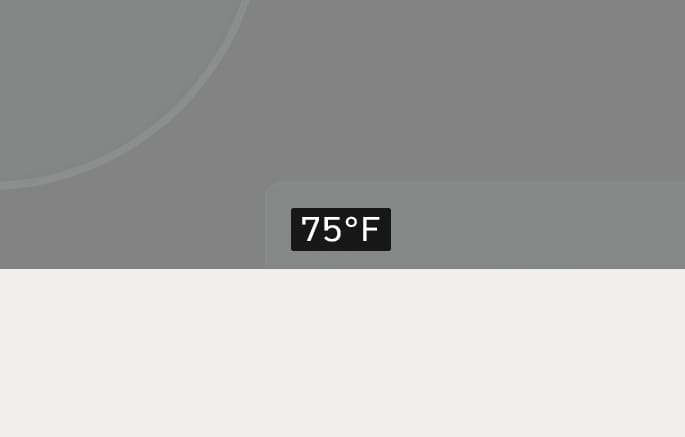

2C_OutsideTemp

The temperature reads in Fahrenheit or Celsius depending on the units selected from the infotainment system. The temperature indicated on the instrument cluster may not change as quickly as the outside temperature.

Press the Ų button, and then select General > Units > Temperature Unit.

Both the temperature unit on the instrument cluster and climate control screen is changed.

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Odometer

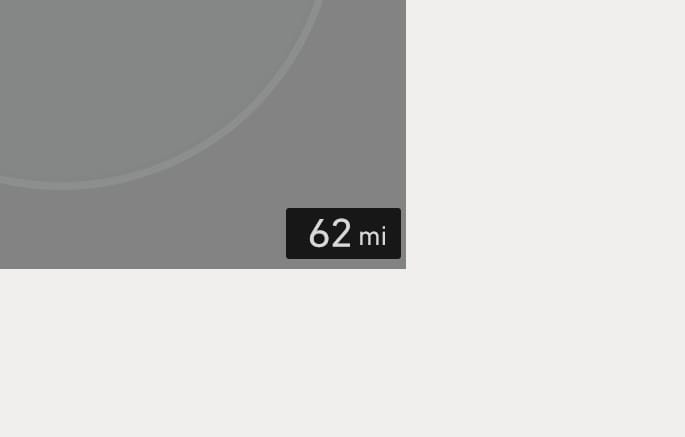

2C_Odometer

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance is required.

Distance to empty
Type A

2C_DistanceToEmpty

Type B

2C_DistanceToEmpty_2

Type C

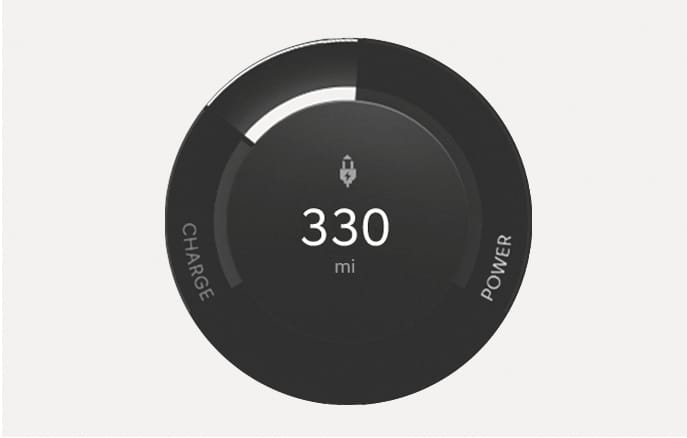

2C_DistanceToEmpty_3

The distance to empty is the estimated distance the vehicle can be driven with the remaining electric energy.

  • The distance to empty differs depending on which drive mode (ECO/NORMAL/SPORT/SNOW) is selected.

For more information, refer to the "Factors affecting the distance to empty" section in chapter 1.

  • The distance to empty may differ from the actual driving distance because it is only an estimate as it is an estimate of the available driving distance.

  • The distance to empty may differ significantly based on driving conditions, driving habits, and condition of the vehicle.

  • If the vehicle is not on level ground or the battery power has been interrupted, the distance to empty function may not operate correctly.
