Surround View Monitor Settings

Warning Method

With the vehicle on, press the Ų button, and then select Vehicle > Driver Assistance > Warning Method in the infotainment system to select the following:

Parking Safety Priority: Your vehicle lowers all other audio volumes when Surround View Monitor is operating.

If you change the Warning Method, Warning Method of other Driver Assistance systems may change.
Warning Method will maintain the last setting even if the vehicle is restarted.
The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

Camera settings

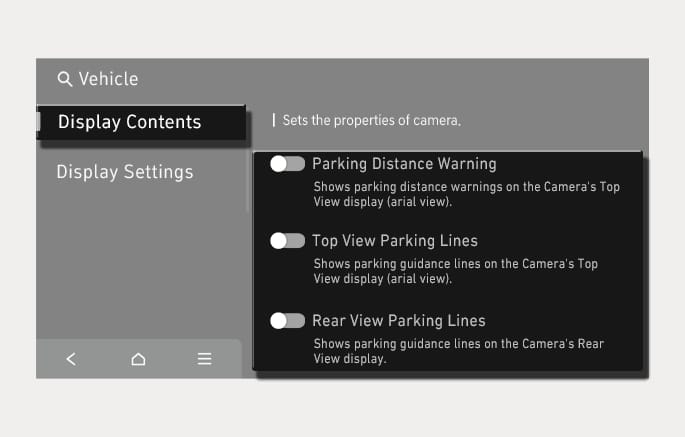

You can change Surround View Monitor "Display Contents" by touching the setup icon (Ĵ) on the screen while Surround View Monitor is operating, or by pressing the Ų button and then selecting Driver Assistance > Parking Safety > Camera Settings in the infotainment system while the vehicle is on.
In the "Display Contents", you can change settings for Parking Distance Warning, Top View Parking Lines and Rear View Parking Lines.

Parking Distance Warning

When the Parking Distance Warning is selected, parking distance warning is displayed on the right side of the Surround View Monitor screen.

Top View Parking Guidance

When the Top View Parking Lines is selected, parking guidance is displayed on the right side of the Surround View Monitor screen.

The image will be displayed only when Parking Distance Warning is warning the driver.

The horizontal guideline of the Rear Top View Parking Guidance shows the liftgate opening distance of 79 in. (2 m) from the vehicle.

Rear View Parking Guidance

When the Rear View Parking Lines is selected, parking guidance is displayed in the rear view.

The horizontal guideline shows the distance of 20 in. (0.5 m), 40 in. (1 m) and 91 in. (2.3 m).

Surround View Monitor Auto On

With the vehicle on, press the Ų button, and then select Driver Assistance > Parking Safety > Surround View Monitor Auto On in the infotainment system to use the function.
