Instrument Cluster

Type A

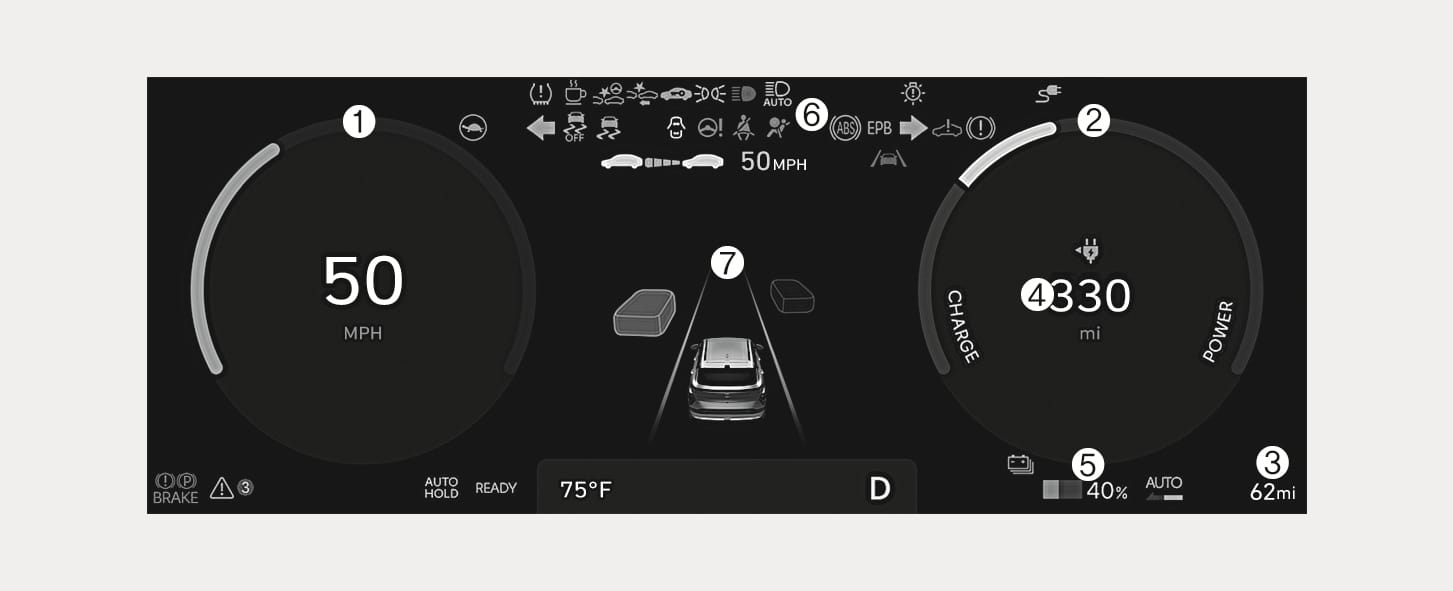

1C_ClusterOverview

Type B

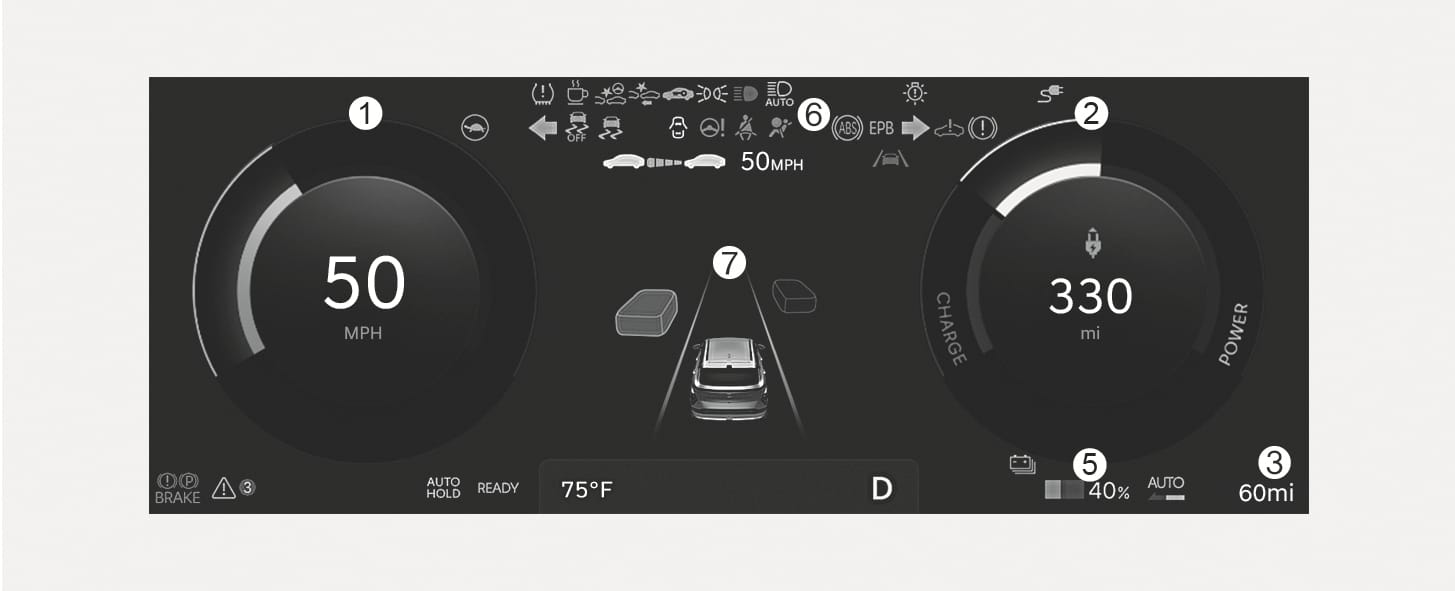

1C_ClusterOverview_2

Type C

1C_ClusterOverview_3

The actual cluster in the vehicle may differ from the illustration. For more information, refer to the "Gauges and Meters" section in this chapter.

  1. Speedometer
  2. Power/Charge gauge
  3. Odometer
  4. Distance to empty
  5. Battery SOC (State of Charge) gauge
  6. Warning and indicator lights
  7. Cluster display
