Motor Compartment Panel Fuse Replacement

Blade fuse/Cartridge fuse

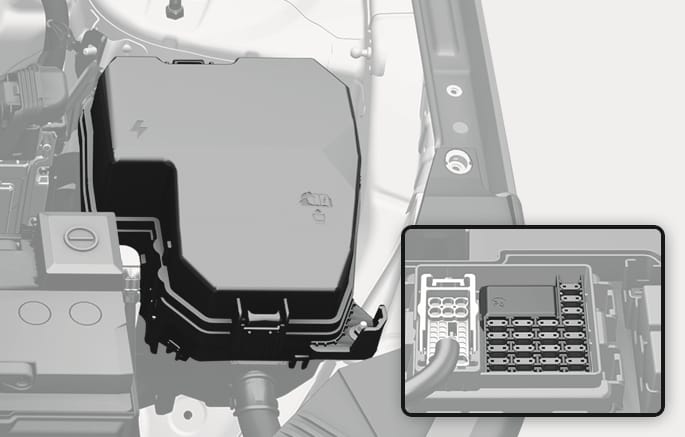

Blade type

2C_EngineRoomFuseReplacement_2

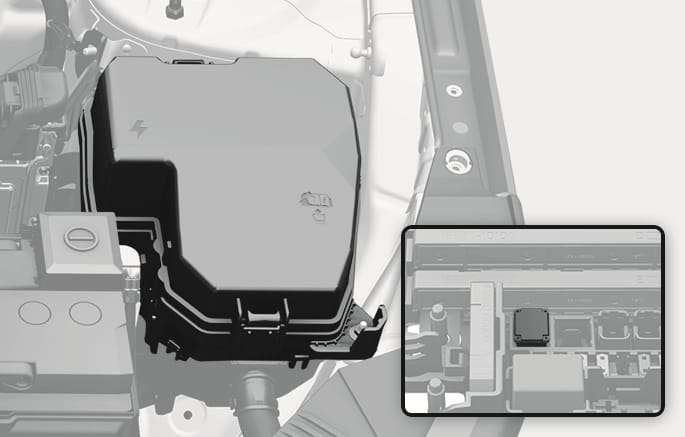

Cartridge type

2C_EngineRoomFuseReplacement_3

  1. Turn off the vehicle.

  2. Turn off all other switches.

  3. Remove the fuse panel cover by pressing the tap and pulling up.

  4. Check the removed fuse and replace it if it is blown. To remove or insert the fuse, use the fuse puller in the motor compartment fuse panel.

  5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it is not tight, contact consult an authorized HYUNDAI dealer.

Always securely install the fuse panel cover. Water may contact the fuse and cause an electrical failure.

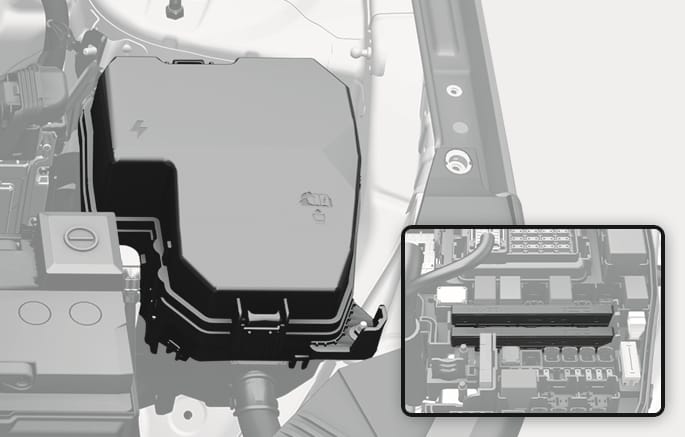

Multi fuse

2C_MultiTypeMainFuse

If the multi fuse is blown, contact an authorized HYUNDAI dealer.
