Filter Replacement

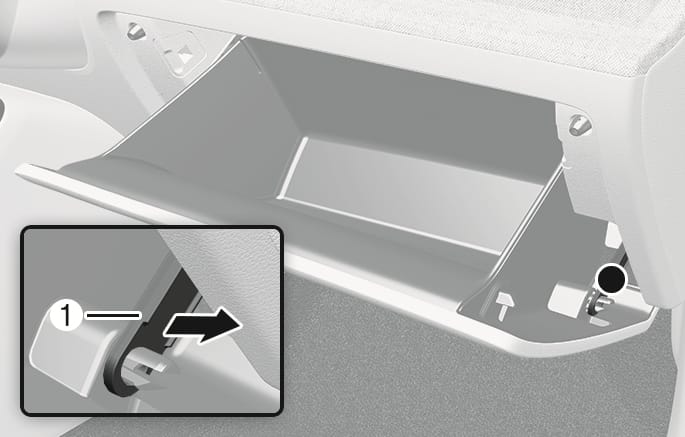

1. Open the glove box and remove the support rod (1).



   2C_AirFilterReplacementProcedure

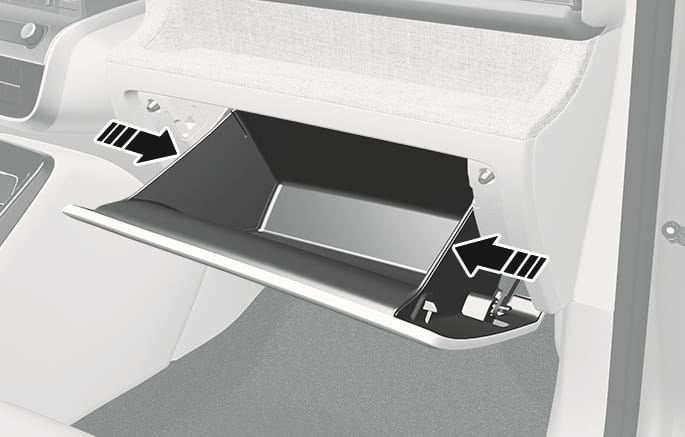

2. Press both sides of the glove box inward to release.



   2C_AirFilterReplacementProcedure_2

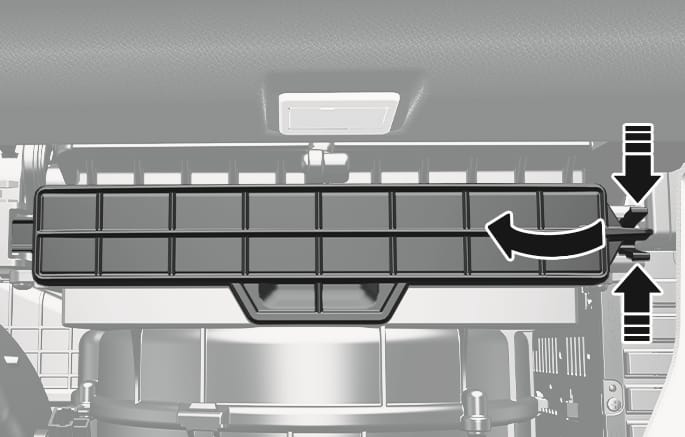

3. Press and hold the lock on the right side of the cover.



   2C_AirFilterReplacementProcedure_3

4. Pull out the cover.

5. Replace the cabin air filter.

6. Reassemble in the reverse order of disassembly.



   2C_AirFilterReplacementCaution

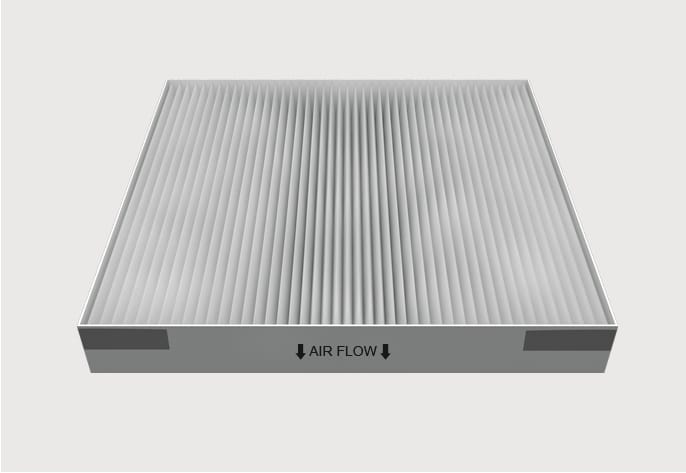

   • Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.

   • Always be sure that the front trunk cover is firmly closed after replacing the cabin air filter.

   Otherwise is may cause interior damage in the motor compartment, noise trouble, or entrance of foreign substances.
