Forward Collision-Avoidance Assist (FCA)

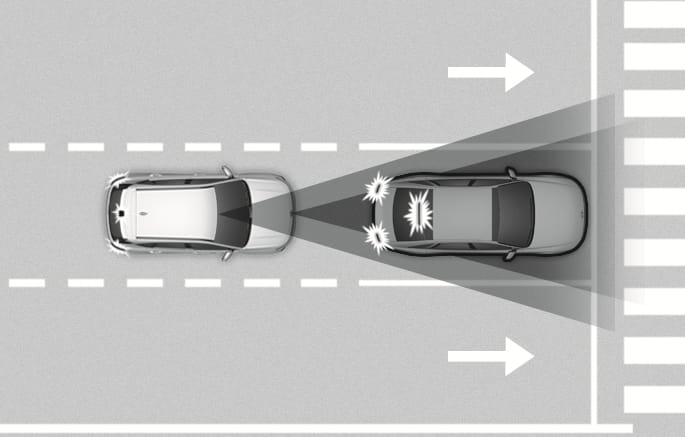

Basic function

Forward Collision-Avoidance Assist helps detect a vehicle, a powered-two wheeler, a pedestrian, or a cyclist ahead on the road and may warn you of a possible collision with a warning message on the instrument cluster and a warning sound. Also, Forward Collision-Avoidance Assist may assist with braking your vehicle to help reduce collision speed or avoid a collision.

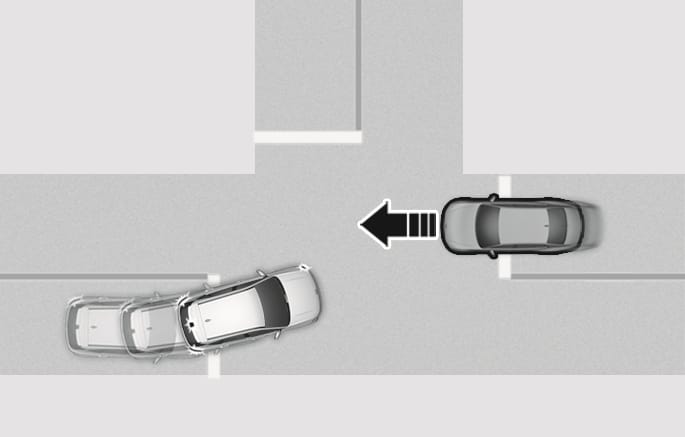

Junction Turning function

Junction Turning function can help avoid a collision with an oncoming vehicle, a powered-two-wheeler in an adjacent lane when turning left at a crossroad with the turn signal on by applying emergency braking.

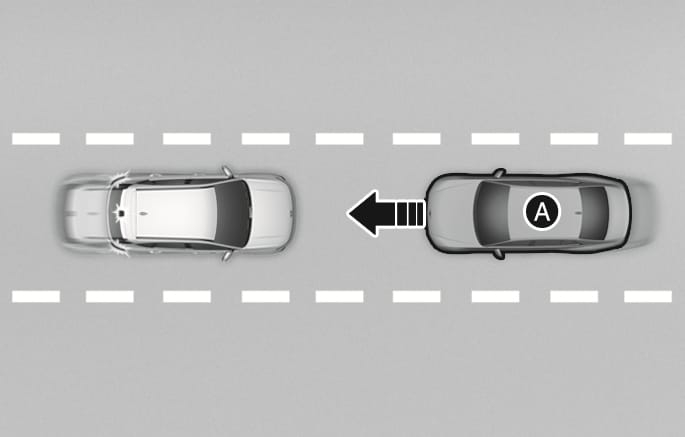

Direct Oncoming function

Oncoming vehicle

Direct Oncoming function helps reduce the speed at the collision when a vehicle approaching from the opposite side is detected.

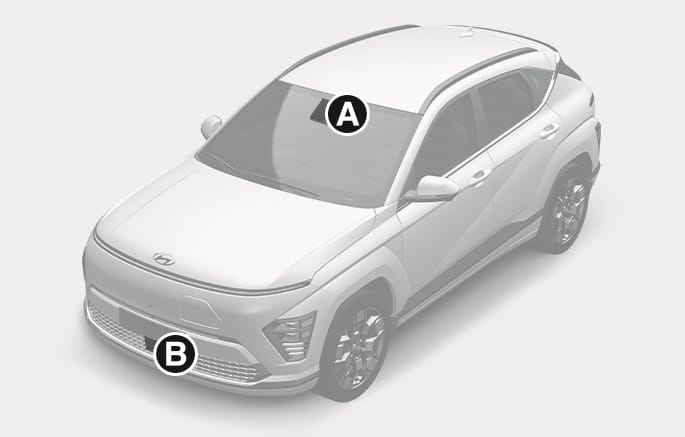

Detecting sensor

See the illustration above for the detailed location of the detecting sensors.

Take the following precautions to maintain optimal performance of the detecting sensor:

Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.
If the detecting sensors have been replaced or repaired, have your vehicle inspected by an authorized HYUNDAI dealer.
Never install any accessories or stickers on the front windshield, or tint the front windshield.
Exercise extreme caution to keep the front view camera dry.
Never place any reflective objects (for example, white paper, mirror) over the dashboard.
Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.
Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front radar cover.
Do not change the position of the license plate. The front radar's detection and control performance may be affected.
Always keep the front radar and cover clean and free of dirt and debris.

Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.
If the radar or around the radar has been damaged or impacted in any way, Forward Collision-Avoidance Assist may not properly operate even though a warning message does not appear on the instrument cluster. Have your vehicle inspected by an authorized HYUNDAI dealer.
The performance of the front radar cover genuine parts have been proven. Replacing or painting the front radar cover may result in poor performance of Forward Collision-Avoidance Assist. When the parts need to be replaced or modified, make sure to use genuine HYUNDAI parts.
