Filter replacement

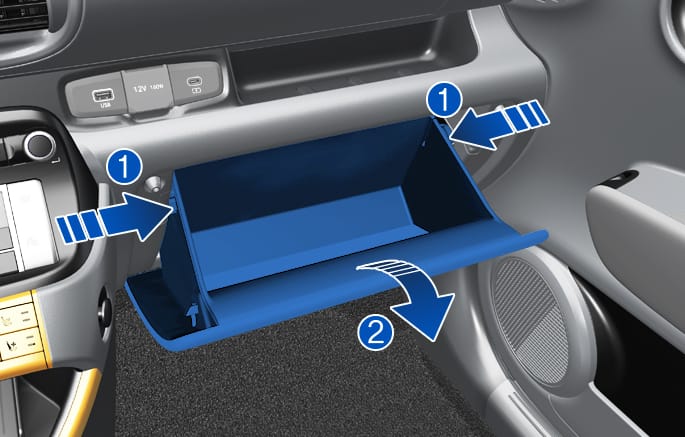

1. Open the glove box (2) and remove the support rod (1).



   2C_AirFilterReplacementProcedure

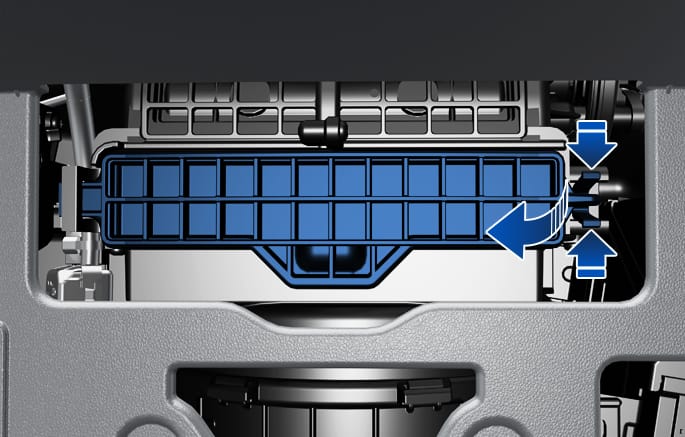

2. Press and hold the lock on the right side of the cover.



   2C_AirFilterReplacementProcedure_2

3. Pull out the cover.

4. Replace the cabin air filter.

5. Reassemble in the reverse order of disassembly.

2C_AirFilterReplacementCaution

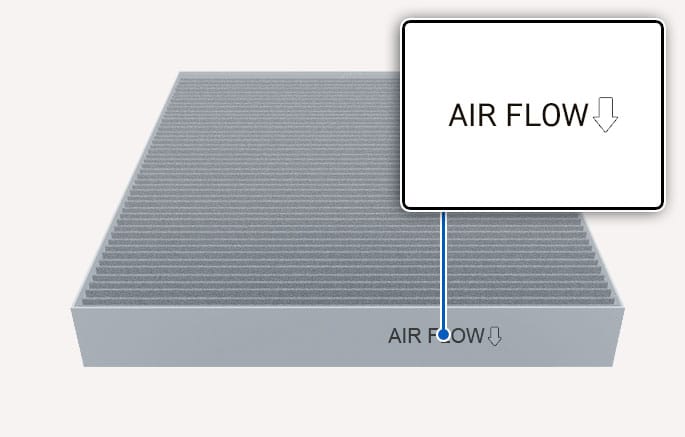

Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.

Otherwise is may cause interior damage in the motor compartment, noise trouble, or entrance of foreign substances.
