Surround View Monitor operation

Parking/View button

2C_RearTopViewFunction

Press the Parking/View button (1) to turn on Surround View Monitor.

Press the button again to turn off the function.

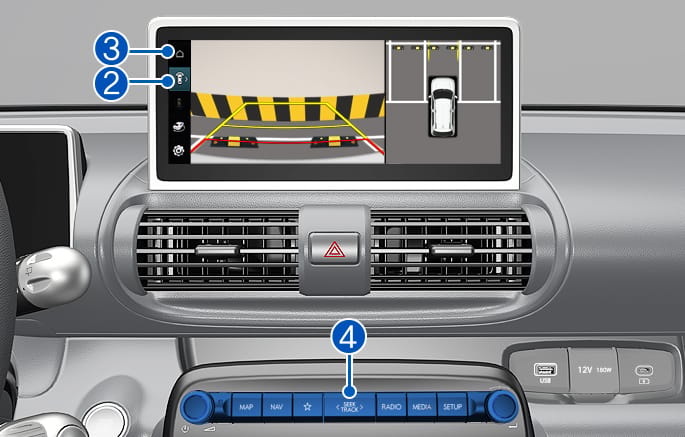

Front view

2C_SVMFrontViewInfo

The front view appears on the screen when the gear is in N (Neutral) or D (Drive) to assist in parking.

You may select top view, front view, and side view using the change view button (2).

Operating conditions

  • The gear is shifted to N (Neutral) or D (Drive) from R (Reverse) and the vehicle speed is 10 km/h (6 mph) or less.

  • The Parking/View button (1) is pressed, while the gear is in N (Neutral) or D (Drive), and vehicle speed is 10 km/h (6 mph) or less.

  • The Parking Distance Warning operates when the gear is shifted to D (Drive).

    select Driver assistance > Parking safety > Surround view monitor auto On in the infotainment system.

When the front view is activated, the latest used view mode is displayed.

Off conditions

  • The gear is shifted from N (Neutral) or D (Drive) to P (Park).

  • The Parking/View button (1) or the Infotainment system button (4) is Pressed.

  • Vehicle speed is above 10 km/h (6 mph).

  • The Home button (3) is pressed.

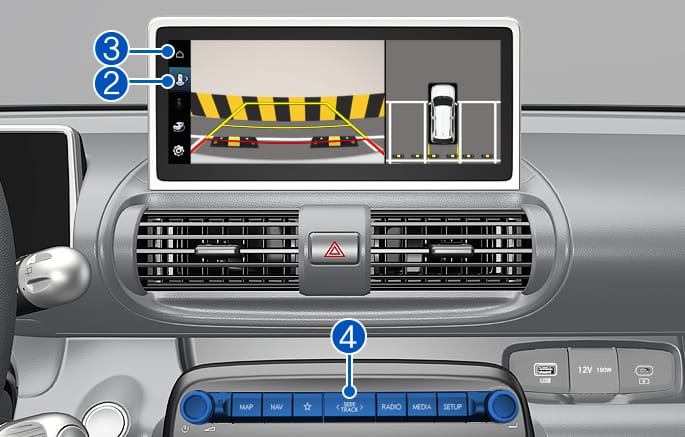

Rear view

2C_SVMRearViewInfo

The rear view appears on the screen to assist in parking.

You may select top view, rear view, and side view using the change view button (2).

Operating conditions

  • The gear is shifted to R (Reverse).

  • The rear view is selected by pressing the Parking/View button (1), while the gear is in P (Park).

Off conditions

  • The gear is shifted to P (Park).

  • The Home button (3) is pressed.

  • The Parking/View button (1) is pressed.

  • The Infotainment system screen button (4) is pressed.

When the gear is in R (Reverse), the rear view does not turn off even if the infotainment system button (4) is Pressed.

Rear View while driving

The driver is able to check the rear view on the screen while driving, it is to assist with backing up.

Operating conditions

  • You can turn on the Surround View Monitor by pressing the Parking/View button (1) when vehicle speed is above 10 km/h (6 mph) and the gear is shifted to N (Neutral) or D (Drive).

  • Press Parking/View button (1) when vehicle speed is above 10 km/h (6 mph). When driving below 10 km/h (6 mph), press rear view shift button (2) on the Surround View Monitor.

  • Press the rear view button when vehicle's speed drops below 10 km/h (6 mph) and the front view is turned on. Press the view shift button (2) to select the rear wide view or rear view while driving.

  • You may select rear wide view or rear view using the change view button (2).

Off conditions

  • The gear is shifted to P (Park).

  • The Parking/View button (1) is pressed.

  • The Infotainment system screen button (4) is pressed.

  • The Home button (3) is pressed.

  • When driving below 10 Km/h, press the other view mode button (2) on the surround view monitor.

  • Press the home button (2) on the surround view monitor.

  • When the rear view while driving is activated, the latest used view mode is displayed.

  • The Rear View Parking Lines does not operate on the rear view while driving.

  • The rear view while driving does not turn off even when the vehicle speed is lower than 10 km/h (6 mph) once it is on.

3D view

The 3D view shows the image around the vehicle from various angles.

You can change angles by tapping the screen. Press the 3D view button again to return to the initial angle.

Operating conditions

When the 3D view is selected by pressing the change view button (2):

  • The gear is in P (Park), N (Neutral) or D (Drive) when vehicle speed is below 10 km/h (6 mph).

  • The Surround View Monitor is turned on when the gear is in R (Reverse).

Off conditions

When the gear is in P (Park), N (Neutral) or D (Drive):

  • The gear is shifted to P (Park) from N (Neutral) or D (Drive).

  • The Parking/View button (1) or the Infotainment system button (4) is Pressed.

  • Vehicle speed is above 10 km/h (6 mph).

When the gear is in R (Reverse):

  • The gear is shifted to P (Park)

3D view does not display guidelines.
