• Standard battery: The high voltage battery level reaches below 25 %.

• Long range battery: The high voltage battery level reaches below 20 %.

• Cross battery: The high voltage battery level reaches below 20 %.

• The (ª) warning light on the instrument cluster turns on simultaneously.

• Standard battery: The high voltage battery level reaches below 15 %.

• Long range battery: The high voltage battery level reaches below 10 %.

• Cross battery: The high voltage battery level reaches below 10 %.

• The (ª) warning light on the instrument cluster turns on simultaneously.

• The vehicle's power may be reduced to minimize the energy consumption of the high voltage battery.

This message appears if the Start/Stop button is pressed to the OFF position without the gear in the P (Park) position.

If this occurs, the Start/Stop button goes to the ACC position.

When the Start/Stop button is pressed to the OFF position, a message may appear, indicating the internal battery of the smart key is low. Replace the smart key battery.

This message appears if the Start/Stop button is pressed repeatedly without depressing the brake pedal.

Start the vehicle by depressing the brake pedal and then pressing the Start/Stop button.

This message appears if the smart key is not in the vehicle when you have left the vehicle with the Start/Stop button in the ON or Start position.

Always turn off the vehicle before leaving your vehicle.

If you cannot start the vehicle after the Start/Stop button is pressed, attempt to start the vehicle by pressing the Start/Stop button again.

If the warning message appears each time you press the Start/Stop button, we recommend that the vehicle be inspected by an authorized HYUNDAI dealer.

This message appears if the brake switch fuse is disconnected. Replace the fuse before starting the vehicle.

If that is not possible, start the vehicle by pressing the Start/Stop button for 10 seconds in the ACC position.

This message appears if you try to start the vehicle in any other position except P (Park).

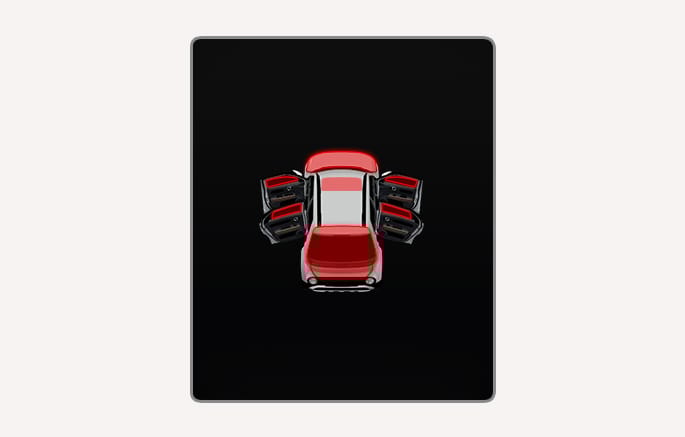

2C_DoorOpenWarning

This warning appears if any door or hood or tailgate is left open. The warning indicates which door is open on the cluster display.

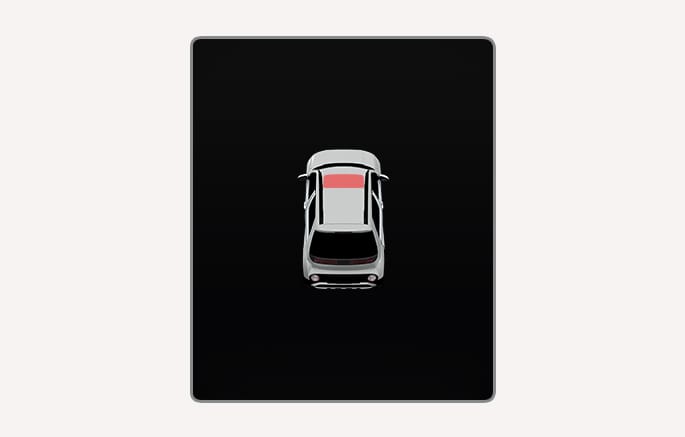

2C_SunroofOpenWarning

This warning appears if you turn off the vehicle when the sunroof is open.

Close the sunroof securely before leaving your vehicle.

2C_TireLowPressureWarning

This warning message appears if the tire pressure is low.

For more information, refer to the "Tire pressure monitoring system (TPMS)" section in chapter 8.

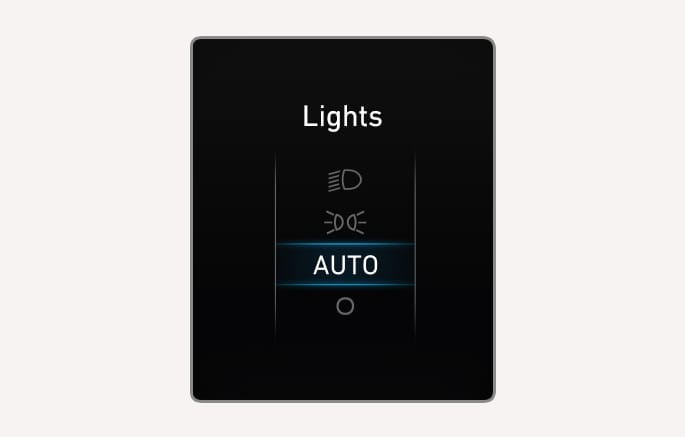

2C_LightMode

This indicator displays which exterior light is selected using the lighting control.

You can activate or deactivate Wiper/Lights display function in the instrument cluster or infotainment system. Select Cluster > Wiper/Lights Display in the instrument cluster or Cluster > Content selection > Wiper/lights display in the infotainment system.

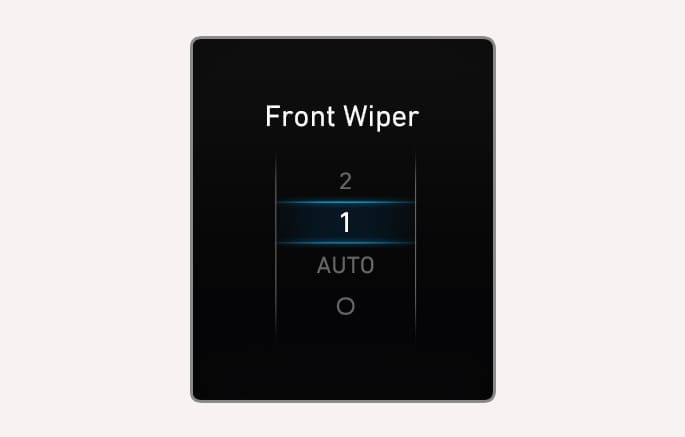

Front

2C_FrontWiperMode

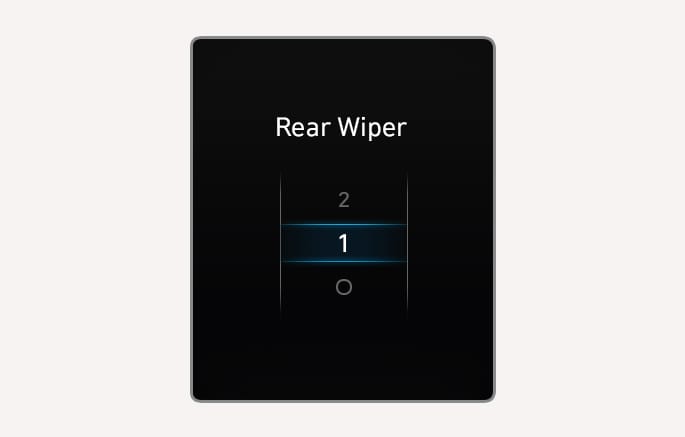

Rear

2C_RearWiperMode

This indicator displays which wiper speed is selected using the wiper control.

You can activate or deactivate Wiper/Lights display function in the instrument cluster or infotainment system. Select Cluster > Wiper/Lights Display in the instrument cluster or Cluster > Content selection > Wiper/lights display in the infotainment system.

This message appears if the washer fluid level in the reservoir is nearly empty.

Have the washer fluid reservoir refilled.

This message appears if the turn signal lights are not operating properly.

Replace the burned out bulb with a new one with the same wattage rating.

This message appears if there is a problem with the LED headlight. We recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

This warning message appears in the following situations:

• There is a malfunction with the actuator flap.

• There is a malfunction with the actuator air flap controller.

• The air flap does not open.

When all of the above conditions are fixed, the warning disappears.
