Lane Following Assist operation

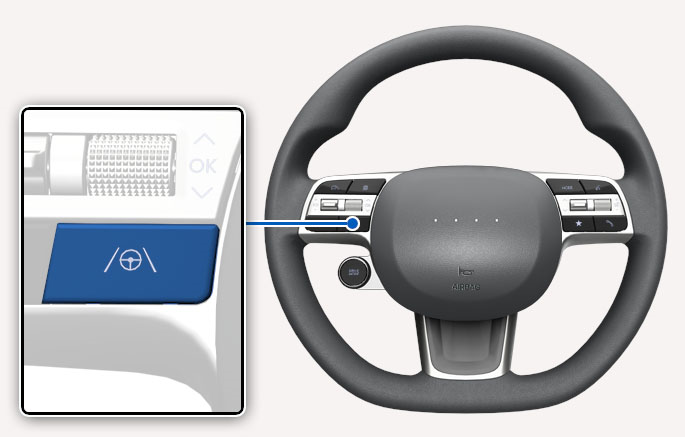

Turning Lane Following Assist On/Off

2C_LKAButton

With the vehicle on, shortly press the Lane Driving Assist button located on the steering wheel to turn on Lane Following Assist. The gray or green (º) indicator light will appear on the cluster.

Press the button again to turn off the function.

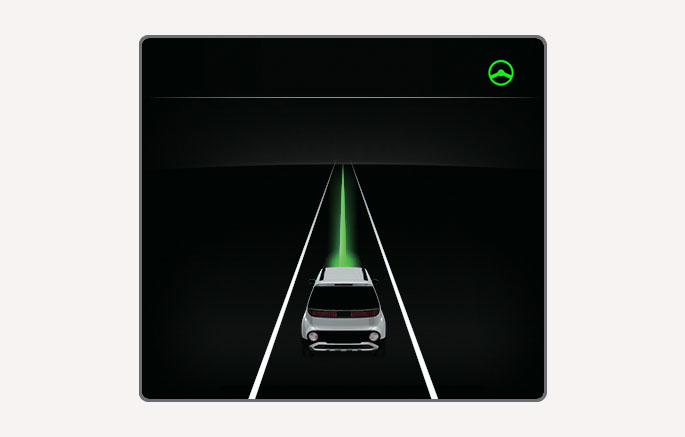

Lane Following Assist

2C_LFALaneDetectInfo

If the vehicle ahead and/or both lane markings are detected and your vehicle speed is below 140 km/h (85 mph), the green (º) indicator light appears on the cluster, and Lane Following Assist helps center the vehicle in the lane by assisting the steering wheel.

When the steering wheel is not assisted, the white (º) indicator light blinks and changes to gray.

Hands-off warning

2C_HandOffWarning

If the driver takes their hands off the steering wheel for several seconds, the "Keep hands on steering wheel" warning message will appear with a warning sound in stages.

  • First stage: Warning message

  • Second stage: Warning message (red steering wheel) with a warning sound

2C_DisableLFAWarning

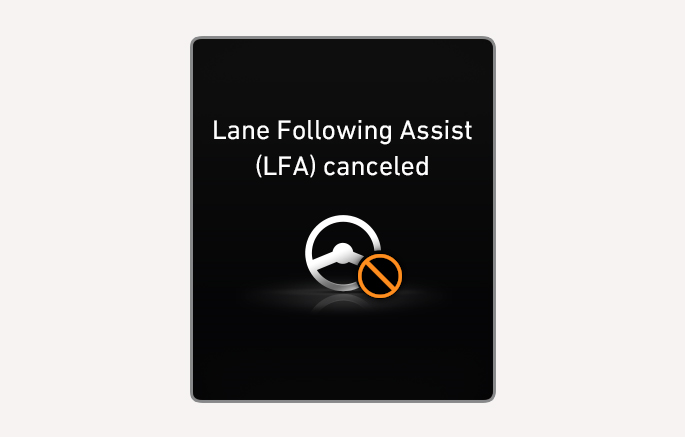

If the driver still does not have their hands on the steering wheel after the hands-off warning, the "Lane Following Assist (LFA) canceled" warning message will appear and Lane Following Assist will be automatically canceled.

  • The steering wheel may not be assisted if the steering wheel is held very tight or the steering wheel is steered over a certain degree.

  • Lane Following Assist does not operate at all times. It is the responsibility of the driver to safely steer the vehicle and to maintain the vehicle in its lane.

  • The hands-off warning message may appear late depending on road conditions. Always have your hands on the steering wheel while driving.

  • If you wear the gloves or the steering wheel is held very lightly the hands-off warning message may appear because Lane Following Assist may not recognize that the driver has their hands on the steering wheel.

  • If you attach objects to the steering wheel, the hands-off warning may not work properly.

  • For more information on instrument cluster settings, refer to the "Cluster display (Type B)" section in chapter 4.

  • When both lane markings are detected, the lane lines on the cluster will change from gray to white.

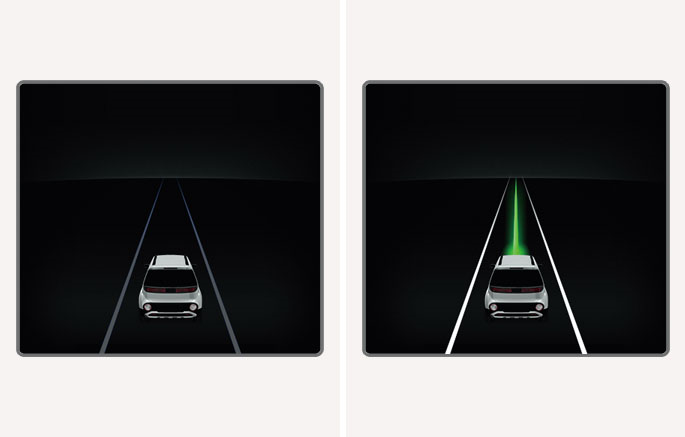

    Lane undetected/detected

    2C_LaneDetectionInfo

  • The images and colors in the instrument cluster may differ depending on the cluster type or theme selected in the infotainment system.

  • If lane markings are not detected, steering wheel control by Lane Following Assist can be limited depending on whether a vehicle is in front or the driving conditions of the vehicle.

  • Even though the steering is assisted by Lane Following Assist, the driver may control the steering wheel.

  • The steering wheel may feel heavier or lighter when the steering wheel is assisted by Lane Following Assist than when it is not.
