Cluster display modes

Modes

Explanation

Trip Computer

This mode displays driving information such as the tripmeter, energy economy, etc.

For more details, refer to "Trip computer" in this chapter.

Turn By Turn (TBT)

This mode displays the state of the navigation.

Driving Assist

  • Lane Keeping Assist

  • Smart Cruise Control

  • Lane Following Assist

User Settings

In this mode, you can change settings of the doors, lamps, etc.

Warning

This mode displays warning messages related to the light malfunction, Tire pressure information, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

Trip computer group

2C_CurrentDrivingInfo

The trip computer group displays information related to vehicle driving parameters including energy economy, tripmeter information and vehicle speed.

For more details, refer to "Trip computer" in this chapter.

Turn By Turn (TBT) group

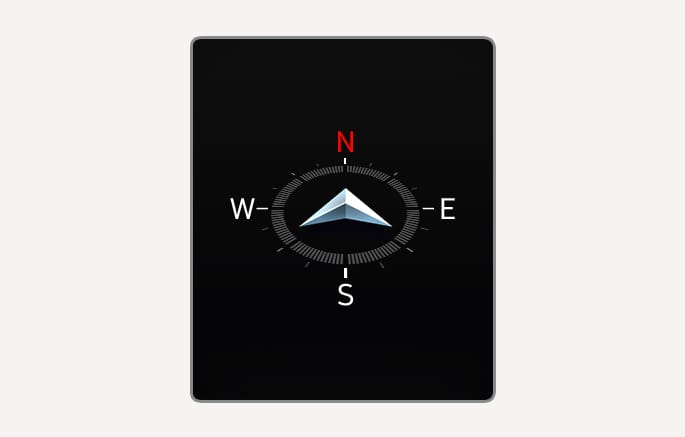

2C_TurnByTurnMode

This group displays the state of the navigation.

Driving Assist group

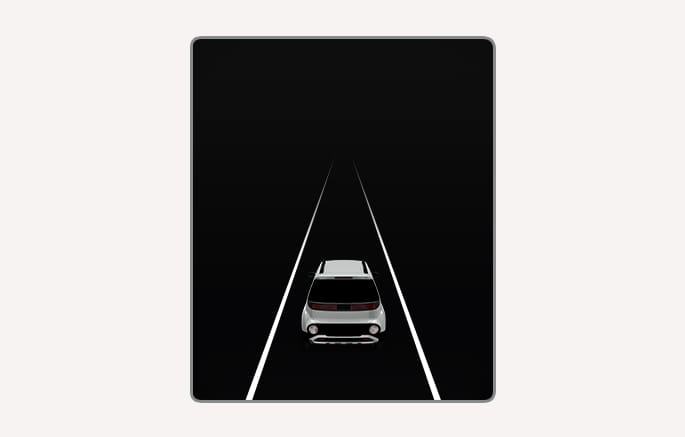

2C_DrivingAssistMode

LKA/SCC/LFA

Displays the state of Lane Keeping Assist, Smart Cruise Control and Lane Following Assist. For more information, refer to each system information in Chapter 7.

Master warning group

2C_BCAMalfunction

This warning light informs the driver the following situations.

  • Forward Collision-Avoidance Assist malfunction (if equipped)

  • Forward Collision-Avoidance Assist radar blocked (if equipped)

  • Blind-Spot Collision-Avoidance Assist malfunction (if equipped)

  • Blind-Spot Collision-Avoidance Assist radar blocked (if equipped)

  • Lamp malfunction (if equipped)

  • High Beam Assist malfunction (if equipped)

  • Smart Cruise Control malfunction (if equipped)

The Master Warning Light illuminates if one or more of the above warning situations occur.

At this time, a Master Warning icon (X) will appear beside the User Settings icon (Ǖ), on the cluster display.

If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

Tire Pressure

2C_TireLowPressureInfo

This mode displays information related to Tire Pressure.

For more details, refer to "Tire pressure monitoring system (TPMS)" in chapter 8.
