Cargo security screen

Use the cargo security screen to cover items stored in the cargo area.

  • If the cargo area cover is connected to the tailgate, the cover lifts with the tailgate when opening the tailgate.

  • If you do not want the cargo area cover to lift with the tailgate, disconnect the strap holder from the rear headrest.

Removing and store cargo c cover

To remove the cargo area cover:

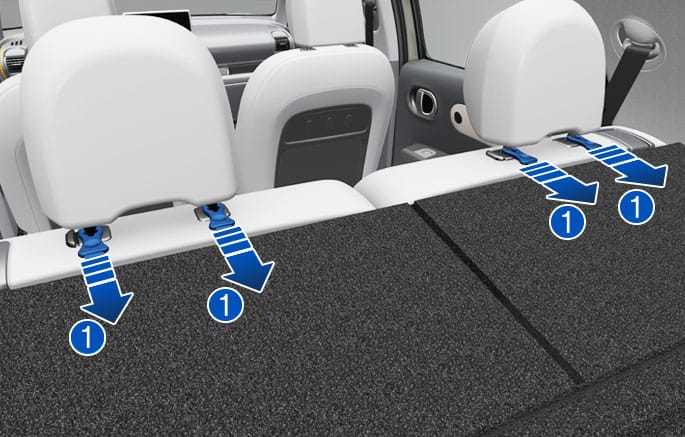

  1. Disconnect the strap holder (1) from the rear headrest.

    2C_UsingCoveringShelf

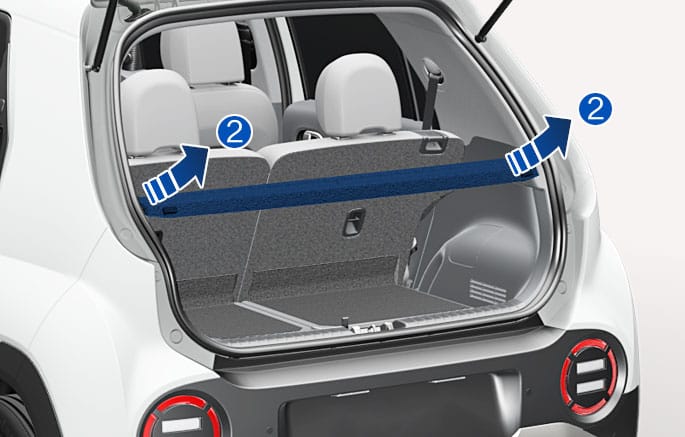

  2. Lift the cover diagonally and pull it out (2).

    2C_UsingLuggageShelf_1

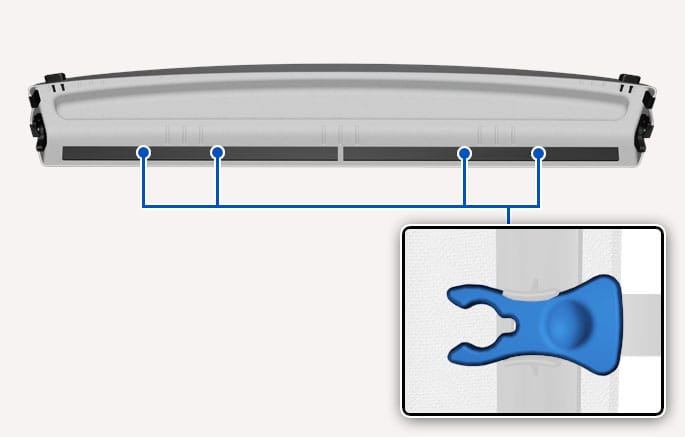

  3. When not in use, store the screen holder on the covering shelf or screen by securing it to the bracket on the back.

    2C_UsingLuggageShelf_2

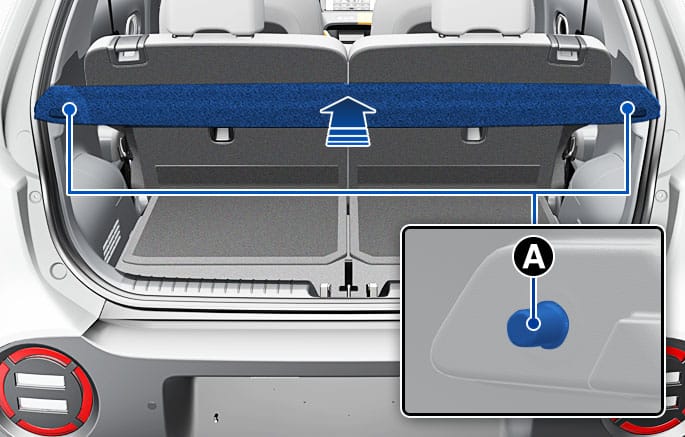

  4. To mount, lay the covering shelf down and slide it onto the bottom fixing [A], taking care not to catch on any other parts.

  • When the cargo area cover is removed, you can secure the cover to the rear seatback not to distract you while driving.

  • Since the cargo area cover also lifts when opening the tailgate, move the items placed on top of the cover to a safe place so they do not fall.

  • Do not put excessive pressure or weight on the cargo area cover. The cargo area cover may be damaged.
