Vehicle Auto-Shut Off Function

If you forget to turn off the vehicle that EV Drivable for a period of time, Vehicle Shuts Off automatically to prevent waste electric power.

Operating Conditions

Vehicle Auto-Shut Off timer activates when the following conditions are met

  • Not Auto-Shut Off timer reset condition

    • Vehicle is not EV ready state(Only Ignition On) or the utility mode on

    • Gear Shift Other than P

    • Stepped on the brake pedal of the accelerator pedal

    • Fastened driver’s seat belt and passenger’s seat belt

    • Passenger’s seat is occupied

    • The vehicle moves(vehicle speed is above 2 mph (3 km/h))

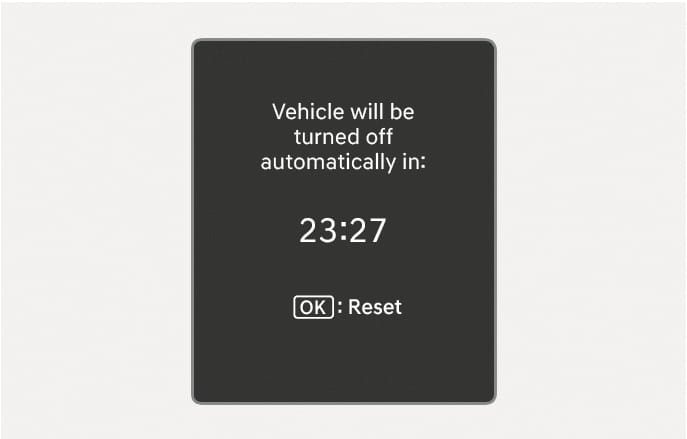

    • When Auto-Shut Off timer is left 10minutes, the user setting mode pops up in the instrument cluster. And you can check the time left. If you push the ‘OK’ button, Auto-Shut off timer is reset.

2C_AutoShutOffInfo

  • Head unit is not updating

  • Outside of vehicle charging connector engaged or outside V2L used

  • If you want to deactivate auto-shut off function during inside V2L, use the Utility mode

System Operation

If the system is satisfied operating conditions after 90 minutes, vehicle shut off automatically.
