Filter Replacement

  1. Open the hood.

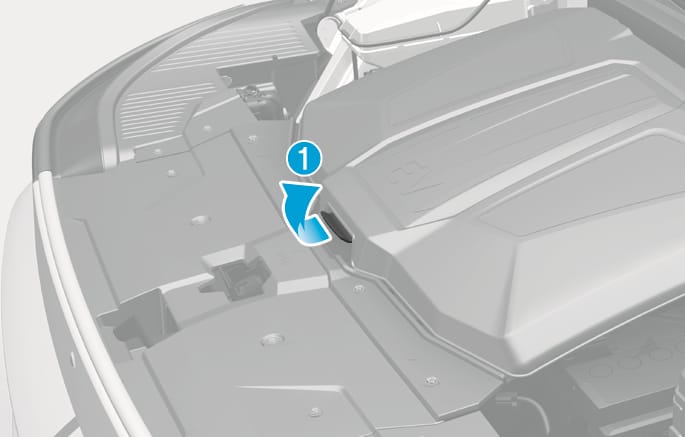

  2. Lift up the front trunk cover while depressing the front trunk lever (1).

    2C_AirFilterReplacementProcedure

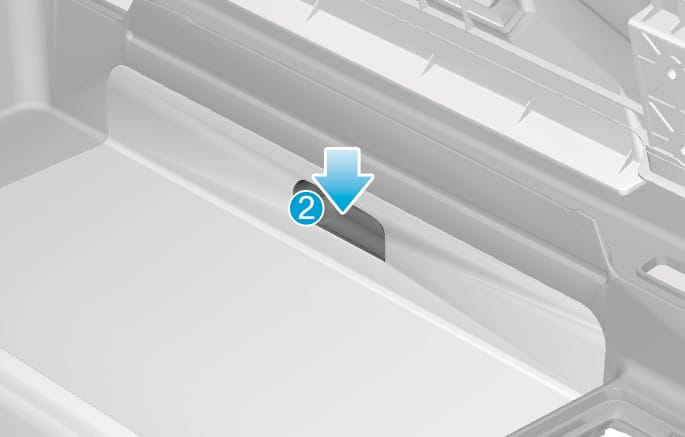

  3. Remove the cover by pulling the front trunk handle (2).

    2C_AirFilterReplacementProcedure_1

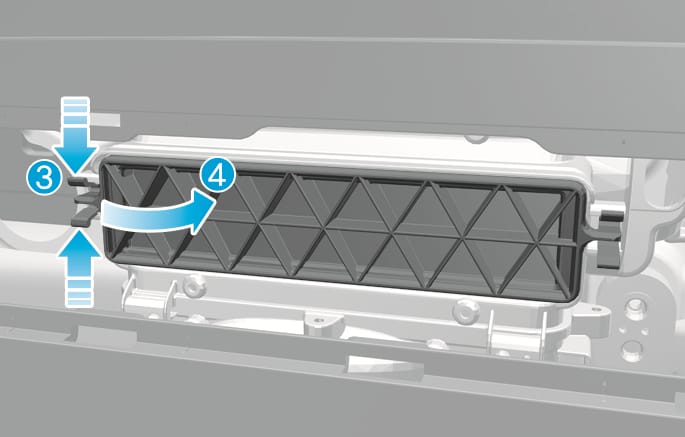

  4. Press and hold the lock (3) on the left side of the cover (4).

    2C_AirFilterReplacementProcedure_3

  5. Replace the cabin air filter.

  6. Reassemble in the reverse order of disassembly.

2C_AirFilterReplacementCaution

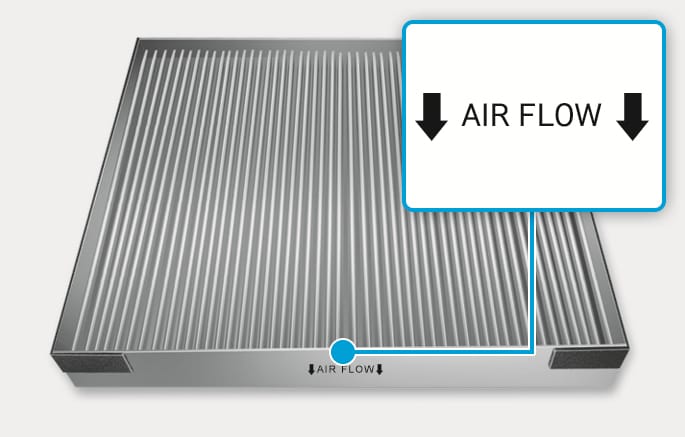

  • Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.

  • Always be sure that the front trunk cover is firmly closed after replacing the cabin air filter.

    Otherwise is may cause interior damage in the motor compartment, noise trouble, or entrance of foreign substances.
