Gauges and Meters

Speedometer
Type A

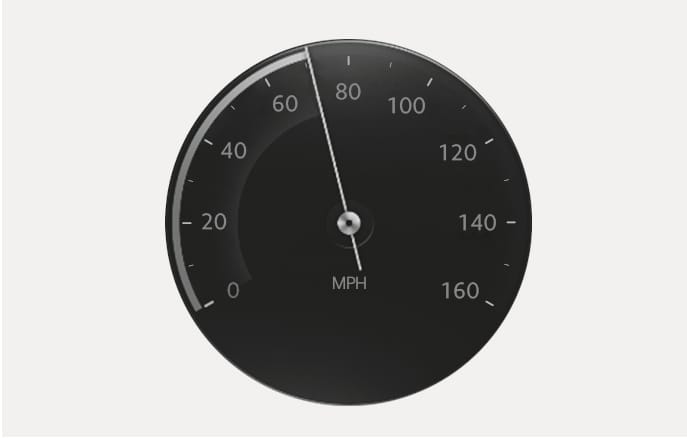

2C_Speedmeter

Type B

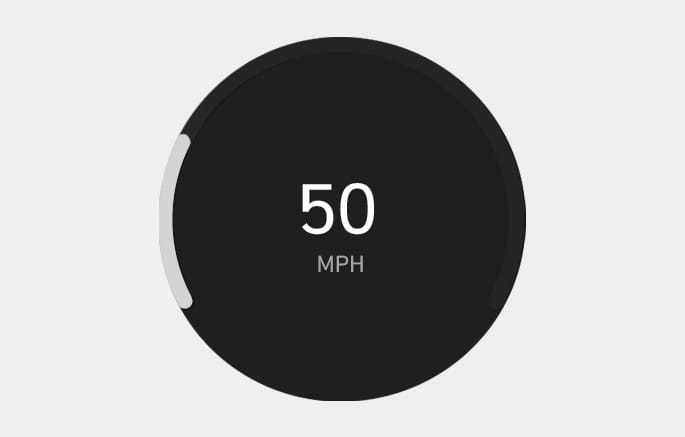

2C_Speedmeter_2

Type C

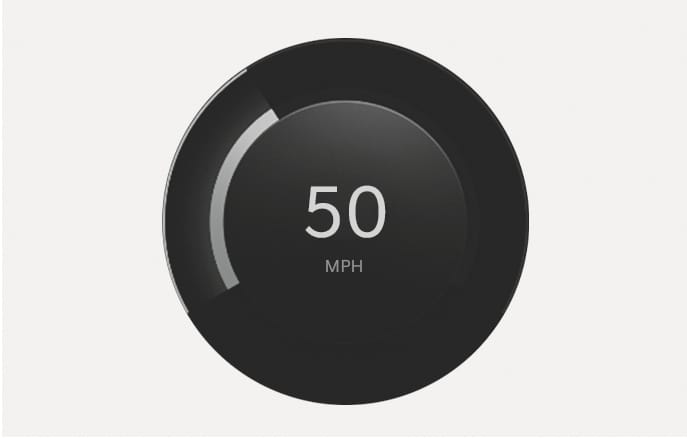

2C_Speedmeter_3

The speedometer indicates the speed of the vehicle and is calibrated in mi. per hour (MPH).

Power/charge gauge
Type A

2C_PowerChargeGauge

Type B

2C_PowerChargeGauge_2

Type C

2C_PowerChargeGauge_3

The Power/Charge Gauge shows the energy consumption rate of the vehicle and the charge/discharge status of the regenerative brakes.

  • POWER : It shows the energy consumption rate of the vehicle when driving uphill or accelerating. The more electric energy is used, the higher the gauge level.

  • CHARGE : It shows the charging status of the battery when it is being charged by the regenerative brakes (decelerating or driving on a downhill road). The more electric energy is charged, the lower the gauge level.

State of Charge (SOC) Gauge for High Voltage Battery

2C_BatteryLevelGauge

  • The SOC gauge shows the charging status of the high voltage battery.

  • A 100 % indicates that the high voltage battery is fully charged. A lower percentage indicates the battery is partially charged. Refer to the Distance To Empty reading to ensure you have the range for your next trip, or plan on charging before or during the trip.

  • When driving on highways, make sure to monitor the Distance to Empty to verify you have sufficient range to your destination.

  1. When the remaining battery is lower than 10 % on the SOC gauge, the High Voltage Battery Level (ª) warning light Illuminates, to alert you of the battery level.

  2. When the High Voltage Battery Level (ª) warning light Illuminates, the vehicle can drive an additional 18-25 mi. (30-40 km) depending on the driving speed, heater/air conditioner, weather, driving style, and other factors. Charging is required.

When the high voltage battery level is too low, the Power Down (®) indicator light illuminates and the vehicle power is limited.

Charge the battery immediately since your vehicle may not be driven, or may roll back on a slope with the indicator light illuminated.

Outside temperature gauge

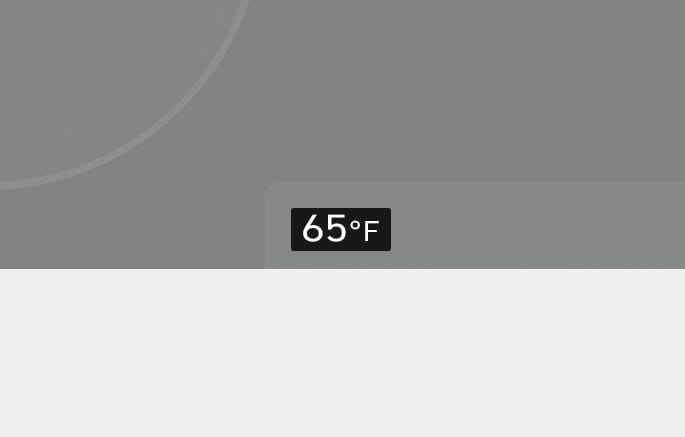

2C_OutsideTemp

The temperature reads in Fahrenheit or Celsius depending on the units selected from the infotainment system. The temperature indicated on the instrument cluster may not change as quickly as the outside temperature. Select:

  • Setup > General > Units.

The temperature unit is changed on the instrument cluster and climate control screen.

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Odometer

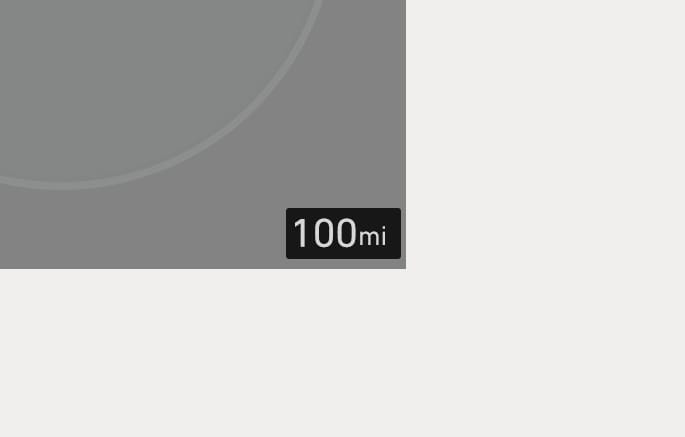

2C_Odometer

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance is required.

Distance to empty
Type A

2C_DistanceToEmpty

Type B, Type C

2C_DistanceToEmpty_2

The distance to empty is the estimated distance the vehicle can be driven with the remaining electric energy.

  • The distance to empty differs depending on which drive mode (ECO/NORMAL/SPORT) is selected.

For more information, refer to the "Factors affecting the distance to empty" section in chapter 1.

  • The distance to empty may differ from the actual driving distance because it is only an estimate as it is an estimate of the available driving distance.

  • The distance to empty may differ significantly based on driving conditions, driving habits, and condition of the vehicle.

  • If the battery power has been interrupted, the distance to empty function may not operate correctly.
