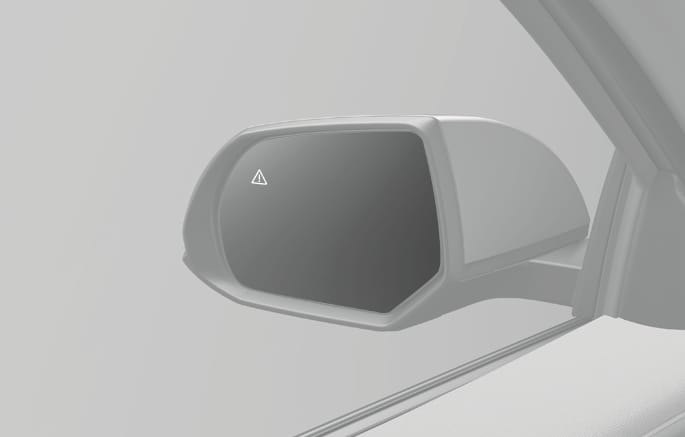

Side View Mirrors

2C_SideViewMirror

Your vehicle is equipped with both left-hand and right-hand side view mirrors. The mirrors can be adjusted remotely with mirror adjustment control switch. Adjust the side view mirrors to your desired position before driving. The side view mirrors can be folded manually to help prevent damage when going through an automatic car wash or when passing through a narrow street.

Make sure to adjust the side view mirrors to your desired position before you begin driving.

The right side view mirror is convex. Objects seen in the mirror are closer than they appear.

Use the side view mirror or turn your head and look to determine the actual distance of other vehicles prior to changing lanes.

Do not adjust or fold the side view mirrors while driving. This may cause loss of vehicle control resulting in an accident.

  • Do not scrape ice off the mirror face; this may damage the surface of the glass.

  • If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved de-icer (not radiator antifreeze) spray, or a sponge or soft cloth with very warm water, or move the vehicle to a warm place and allow the ice to melt.

  • Do not clean the mirror with harsh abrasives, fuel or other petroleum based cleaning products.

Adjusting the side view mirrors

2C_AdjustSideViewMirror

Adjusting the side view mirrors:

  1. When the Start/Stop button is in the ACC, ON or START position, move either the L (Left side) or R (Right side) lever (1) to select the side view mirror you would like to adjust.

  2. Use the mirror adjustment control switch (2) to position the selected mirror up, down, left or right.

  3. After adjustment, move the lever (1) to the middle to prevent inadvertent adjustment.

  • The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, because this can damage the motor.

  • Do not attempt to adjust the side view mirrors by hand, because this can damage the motor.

Folding the side view mirrors

2C_FoldSideViewMirror

Folding button

The side view mirrors can be folded or unfolded by pressing the button.

Infotainment system setting

  • Enable on door unlock

    If Setup > Vehicle > Lights > Welcome Mirror > On door unlock is selected from the Settings menu in the infotainment system screen,

    • The mirror will fold or unfold when the door is locked or unlocked by the smart key.

    • The mirror will fold or unfold when the door is locked or unlocked by the touch sensor or button on the outside door handle.

  • Enable on driver approach

    If Setup > Vehicle > Lights > Welcome Mirror > On driver approach is selected from the Settings menu in the infotainment system screen, the mirror will unfold when the vehicle is approached with the smart key in possession.

  • For your safety, the side view mirrors cannot be folded automatically when driving at a speed of 9 mph (15 km/h) or faster.

  • The infotainment system may change after software updates. For more information, refer to the user’s manual provided in the infotainment system and the quick reference guide.

The electric type side view mirror operates even though the Start/Stop button is in the OFF position. However, to prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary while the vehicle is not running.

Do not fold the electric type side view mirror by hand. It could cause motor failure.
