Head Restraint

The vehicle’s front and rear seats have adjustable head restraints. The head restraints provide comfort for passengers, but more importantly they are designed to help protect passengers from whiplash and other neck and spinal injuries during an accident, especially in a rear impact collision.

To reduce the risk of serious injury or death in an accident, take the following precautions when adjusting your head restraints:

  • Always properly adjust the head restraints for all passengers BEFORE starting the vehicle.

  • NEVER let anyone ride in a seat with the head restraint removed or reversed.

    2C_HeadrestRightPosition

  • Adjust the head restraints so the middle of the head restraint is at the same height as the height of the top of the eyes.

  • NEVER adjust the head restraint position of the driver’s seat when the vehicle is in motion.

  • Adjust the head restraint as close to the passenger’s head as possible. Do not use a seat cushion that holds the body away from the seatback.

  • Make sure the head restraint locks into position after adjusting it.

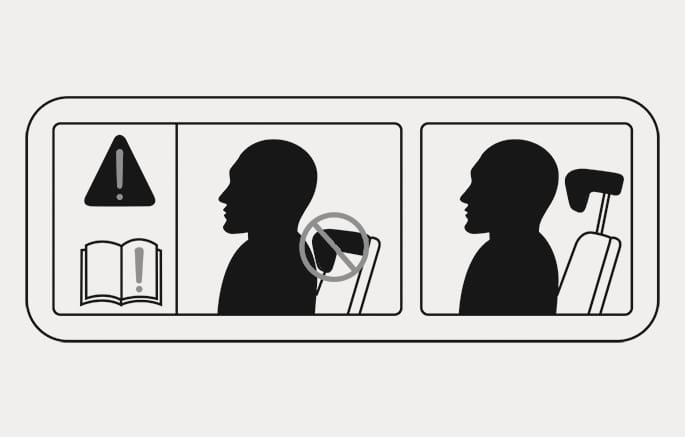

2C_RearHeadrestCaution

When sitting on the rear seat, do not adjust the height of the head restraint to the lowest position.

When there is no occupant in the rear seats, adjust the height of the head restraint to the lowest position. The rear seat head restraint can reduce the visibility of the rear area.

To prevent damage, NEVER hit or pull on the head restraints.

Front seat head restraints

2C_HeadrestOverview

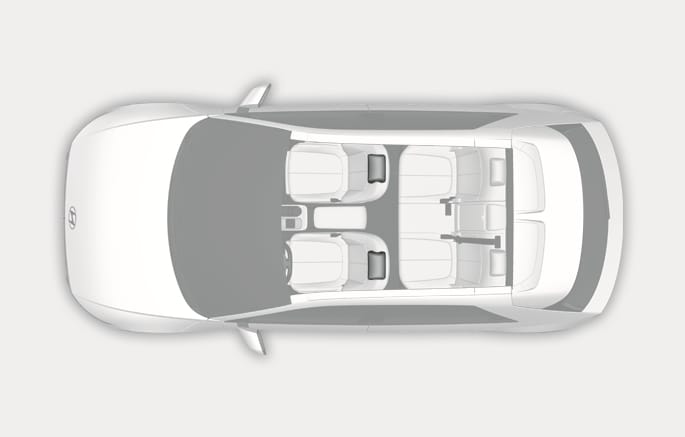

The driver’s and front passenger’s seats are equipped with adjustable head restraints for the passengers safety and comfort.

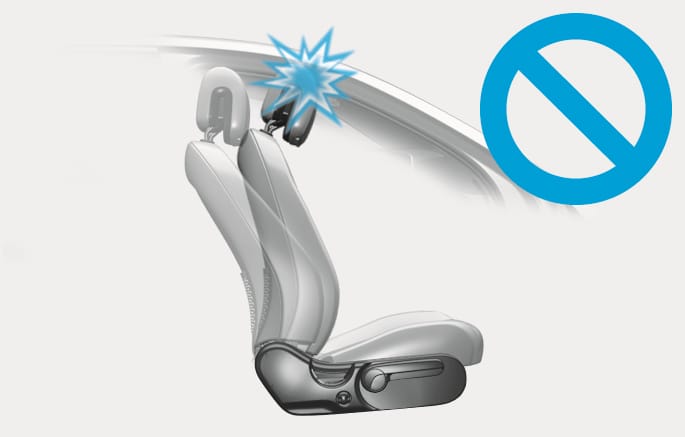

2C_AdjustHeadrestCaution

If you recline the seatback towards the front with the head restraint and seat cushion raised, the head restraint may come in contact with the sunvisor or other parts of the vehicle.

Adjusting the height up and down

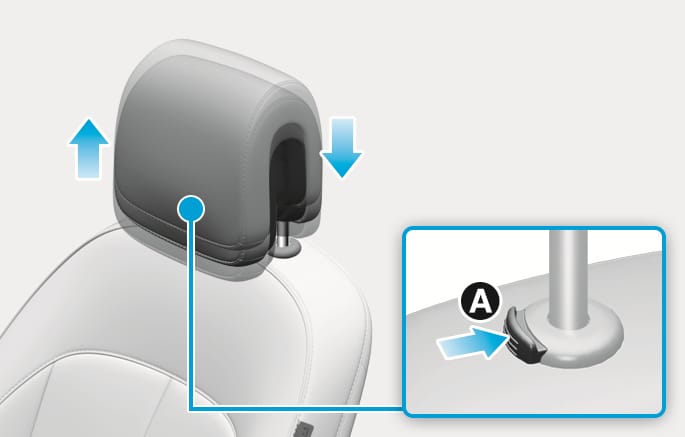

2C_AdjustHeadrestUpDown

To raise the head restraint:

  1. Pull it up to the desired position.

To lower the head restraint:

  1. Push and hold the release button (A) on the head restraint support.

  2. Lower the head restraint to the desired position.

Forward and rearward adjustment

2C_AdjustHeadrestForwardBackward

The head restraint may be adjusted forward by pulling the head restraint forward to the desired detent. To adjust the head restraint to it's furthest rearwards position, pull it fully forward to the farthest position and release it.

Removal/Reinstall

Manual seat

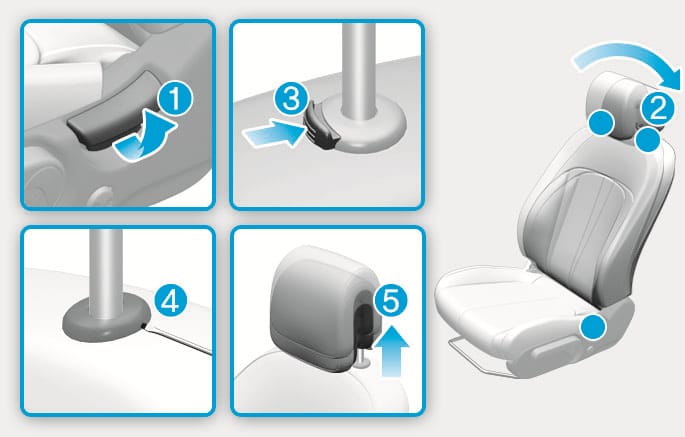

2C_RemoveHeadrestManual

Power seat

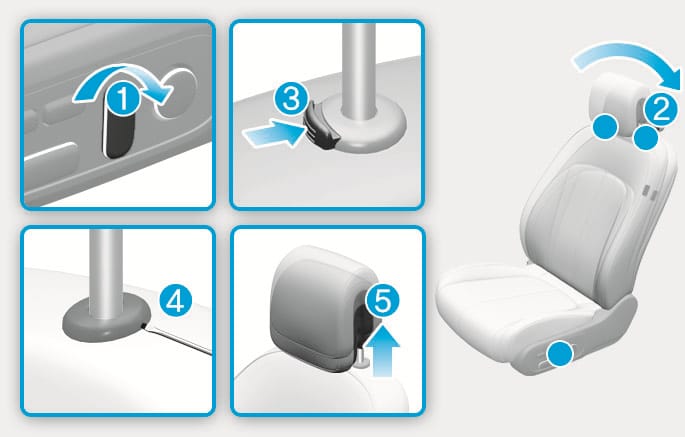

2C_RemoveHeadrestAuto

To remove the head restraint:

  1. Recline the seatback (2) with the seatback angle switch (1).

  2. Press the release button (3) and pull up the head restraint to the upmost position.

  3. Insert the small, pointed objects (such as a mini screwdriver) into a hole (4), press release button (3) simultaneously and pull the head restraint (5) up to remove.

NEVER allow anyone to travel in a seat with the head restraint removed.

Manual seat

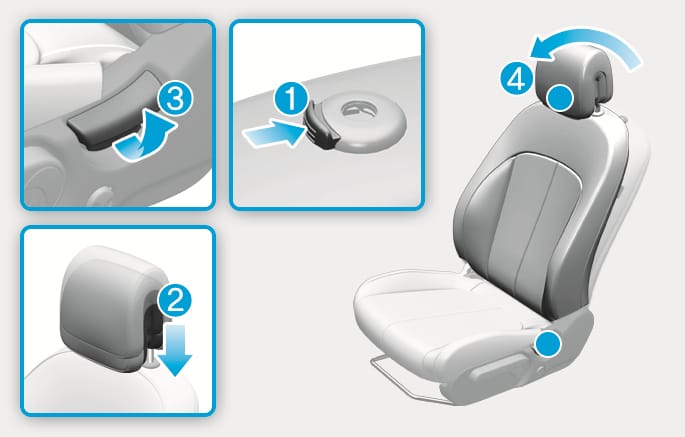

2C_InstallHeadrestManual

Power seat

2C_InstallHeadrestAuto

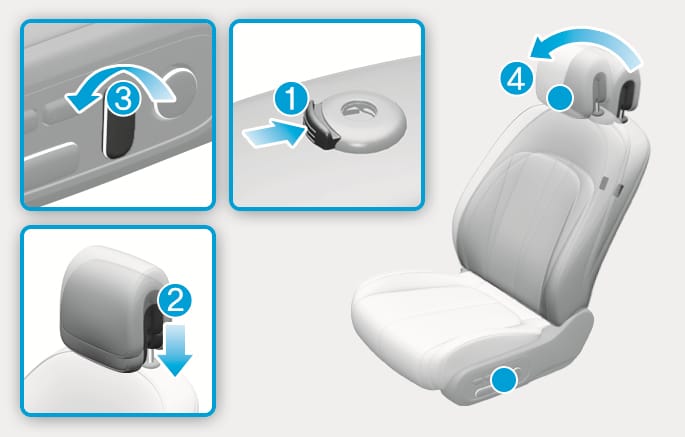

To reinstall the head restraint :

  1. Recline the seat back by pressing seatback angle lever or switch (3).

  2. Put the head restraint poles (2) into the holes while pressing the release button (1).

  3. Adjust the head restraint to the appropriate height.

  4. Adjust the seatback angle (4) with the seatback angle switch (3).

Always make sure the head restraint locks into position after reinstalling and adjusting it properly.

Rear seat head restraints

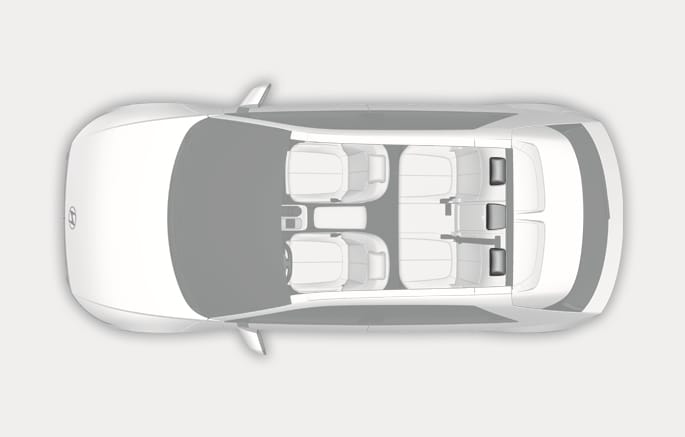

2C_RearHeadrestPosition

The rear seats are equipped with head restraints in all the seating positions for the passenger’s safety and comfort.

Adjusting the height up and down

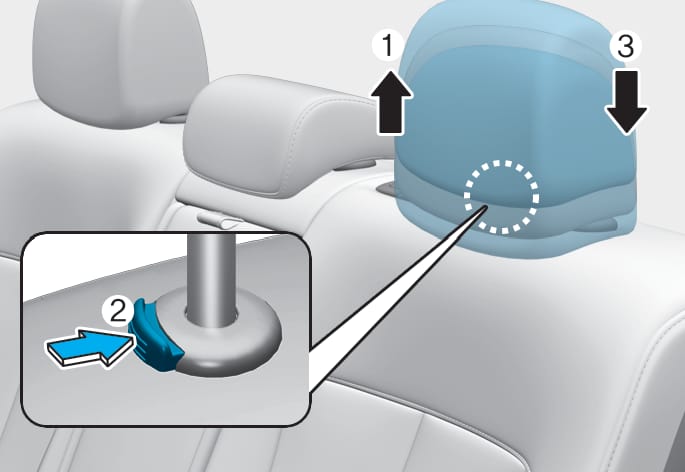

ONE1031030N

To raise the head restraint:

  1. Pull it up to the desired position (1).

To lower the head restraint:

  1. Push and hold the release button (2) on the head restraint support.

  2. Lower the head restraint to the desired position (3).

Removal/Reinstallation

ONE1031083N

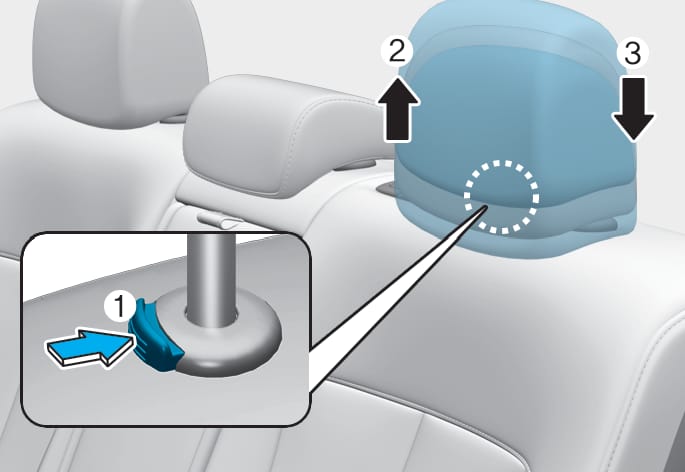

To remove the head restraint:

  1. Raise the head restraint as far as it can go.

  2. Press the head restraint release button (1) while pulling the head restraint up (2).

To reinstall the head restraint:

  1. Put the head restraint poles into the holes (3) while pressing the release button (1).

  2. Adjust the head restraint to the appropriate height.
