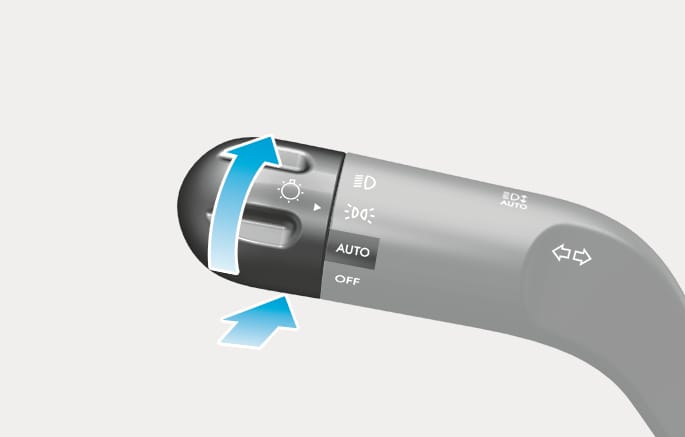

High Beam Assist (HBA)

2C_HBASwitch

High Beam Assist will automatically adjust the headlight range (switches between high beam and low beam) depending on the brightness of detected vehicles and certain road conditions.

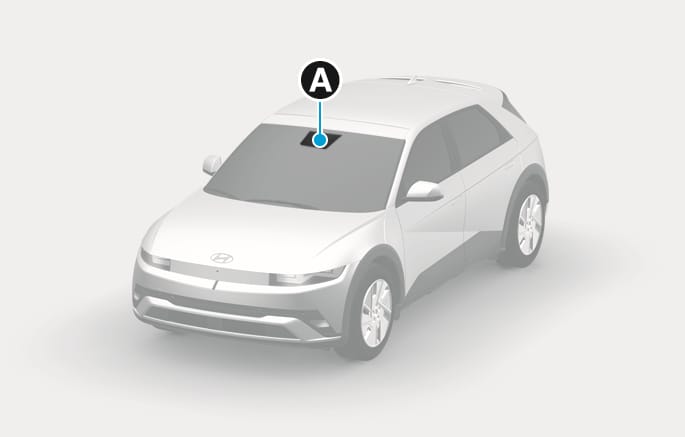

Detecting sensor

2C_FrontViewCamera

1. Front view camera

The front view camera is used as a detecting sensor to detect ambient light and brightness while driving.

Refer to the picture above for the detailed location of the detecting sensor.

• Always keep the front view camera in good condition to maintain optimal performance of High Beam Assist.

• For more details on the precautions of the front view camera, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.
