Smart Key

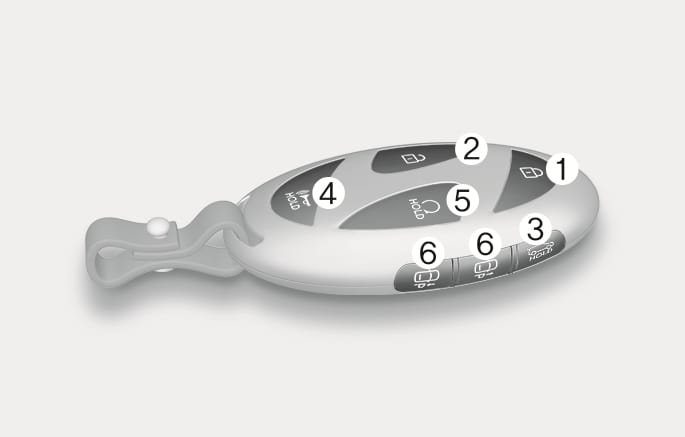

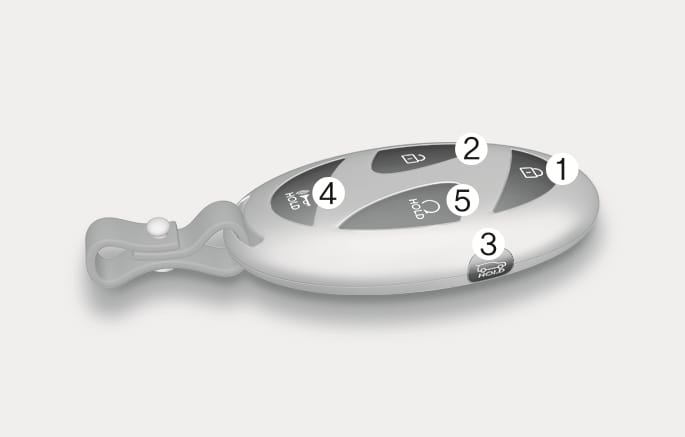

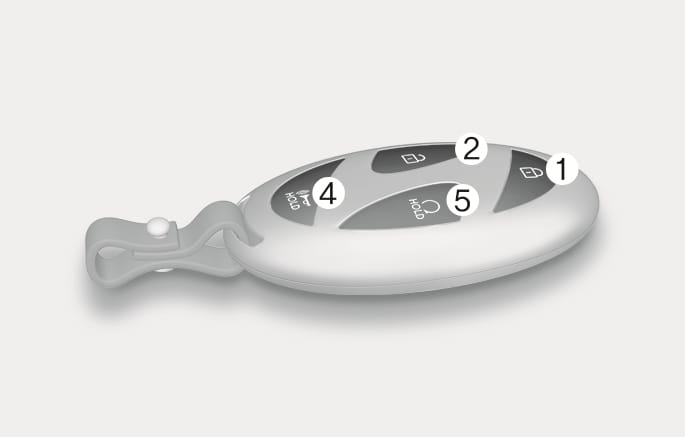

Your electric vehicle uses a Smart Key, which you can use to lock or unlock the driver and passenger doors, the charging door or the rear liftgate.

Door lock
Door unlock
Liftgate open/close
Panic
Remote Start
Remote Smart Parking Assist (Forward/Backward)

Locking your vehicle (1)

To lock your vehicle using the door handle button or the Smart Key:

Make sure all doors, the hood and the liftgate are closed.
Press the Door Lock button (1) on the Smart Key. The hazard warning lights will blink with an alarm, and the doors will be locked.

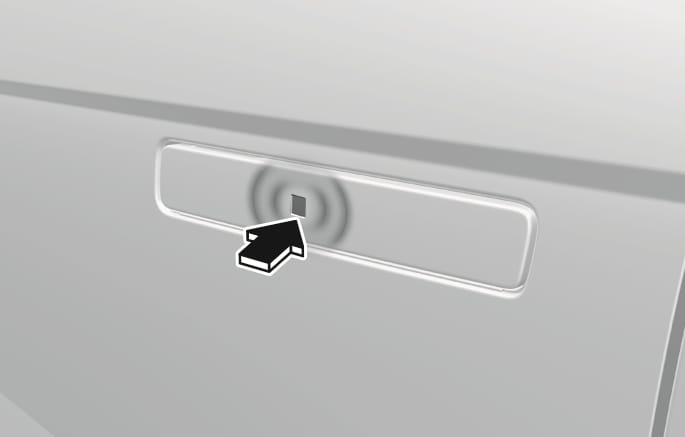

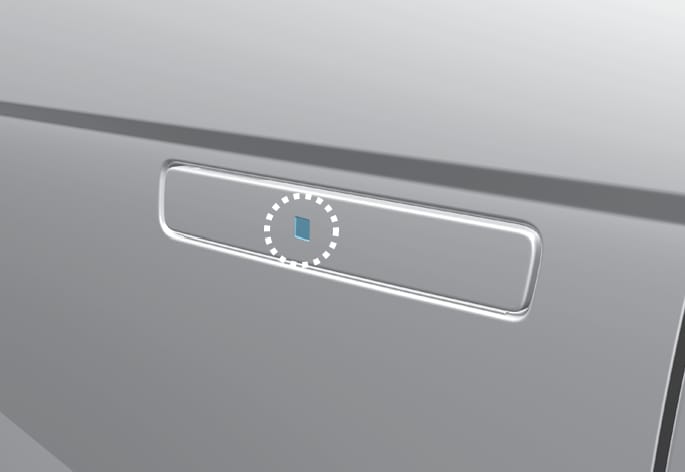

In addition, pushing the button on the door handle (the engraved part) while keeping the smart key will lock all doors.

To lock your vehicle using the door handle touch sensor or the Smart Key:

Make sure all doors, the hood and the liftgate are closed.
Press the Door Lock button (1) on the Smart key. The hazard warning lights will blink with an alarm, and the handles will retract back.

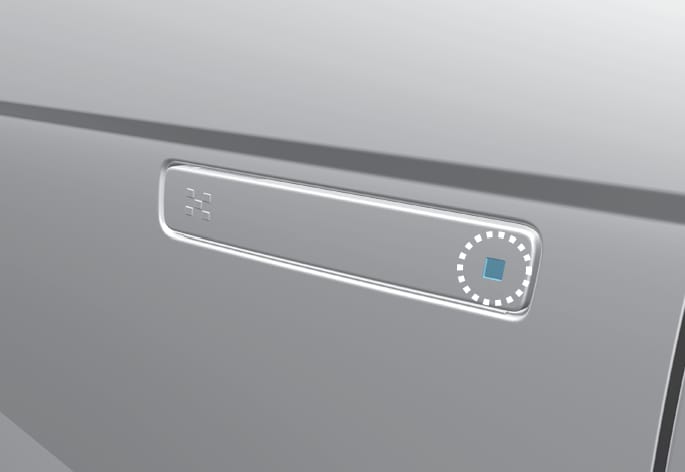

In addition, touching the touch sensor on the door handle (the engraved part) while keeping the smart key will lock all doors and let the door handle to retract back.

The side view mirror will unfold if ‘Approach Unlock’ is selected from the Settings menu in the infotainment system screen. Select:
- Setup > Vehicle > Lights > Welcome Mirror > Approach Unlock
The door handle touch sensor will only operate when the smart key is within 28~40 in. (0.7~1 m) from the outside door handle.
Touching the door handle touch sensor does not unlock the doors. To unlock the doors, refer to the following page.
Note that you cannot lock your vehicle using the door handle touch sensor if any of the following occur:
- The Smart Key is in the vehicle.
- The Start/Stop button is in ACC or ON position.
- Any of the doors are open (except for the liftgate).

Do not leave the Smart Key in your vehicle with unsupervised children. Unattended children could press the Start/ Stop button and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.

Unlocking your vehicle (2)

To unlock your vehicle using the door handle button or the Smart Key:

Make sure you have the smart key in your possession.
Pushing the button on the door handle(engraved part) or press the Door Unlock button (2) on the smart key. All doors handles will be unlocked and the hazard warning lights will blink twice.
After unlocking the doors, the doors will automatically re-lock after 30 seconds unless a door is opened.

To unlock your vehicle using the door handle touch sensor or the Smart Key:

Make sure you have the smart key in your possession.
Touch the touch sensor on the door handle(engraved part) or press the Door Unlock button (2) on the smart key. All door handles will pop out and the doors will be unlocked and the hazard warning lights will blink and the chime will sound.
After unlocking the doors, the doors will automatically re-lock after 30 seconds unless a door is opened.

The side view mirror will unfold if ‘Approach Unlock’ is selected from the Settings menu in the infotainment system screen.

Select:
- Setup > Vehicle > Lights> Welcome Mirror > On driver approach
The door handle touch sensor will only operate when the smart key is within 28~40 in. (0.7~1 m) from the outside door handle.
The doors may lock or unlock if the touch sensor of the outer door handle is recognized while washing your car or due to heavy rain.
To prevent unintentional door lock or unlock:

Press the lock button on the smart key and immediately press the unlock button along with the lock button for more than 4 seconds. The hazard warning lights will blink four times. At this time, the doors will not lock or unlock even though the touch sensor is touched on the outside door handle.

To deactivate the function, press the door lock or unlock button on the smart key.
The doors may not lock or unlock in the following situations.
- If the touch sensor is touched with gloves on
- If the door is suddenly approached
The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Setting the Two Press Unlock feature

You can activate or deactivate the Two Press Unlock feature from the infotainment system. Select:

Setup > Vehicle > Door > 2 Press Unlock

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Setting the door lock/unlock prevention feature

The doors may lock or unlock if the touch sensor of the outer door handle is recognized while washing your car or due to heavy rain.

To prevent unintentional door lock or unlock, press the lock button on the smart key and immediately press the unlock button along with the lock button for more than 4 seconds. The hazard warning lights blink four times.

At this time, the doors are not lock or unlock even though the touch sensor is touched on the outside door handle.

To deactivate the function, press the door lock or unlock button on the smart key.

During a car wash or rain, in order to minimize unintentional operation of the touch sensor, the touch sensor may become insensitive. This is not a malfunction.
The doors may not lock or unlock in the following situations.
- If the touch sensor is touched with gloves on
- If the door is suddenly approached

Smart key reminder

If the smart key is in the vehicle, and the door is locked with the central door lock/unlock button in the vehicle with a door open, the doors are not locked but unlocked again.

Unlocking/Opening the liftgate (3)

To open the liftgate:

Have the smart key with you.
Press the liftgate open/close button (3) on the smart key or press and hold the liftgate handle switch on the liftgate for more than one second. The hazard warning lights will blink two times and the liftgate will open.

For more information on opening/closing the liftgate, refer to the "Liftgate" and "Power Liftgate" section in this chapter.

The liftgate open/close button will only operate when the smart key is within 28 in. (0.7 m) from the liftgate.

Using panic alarm (4)

The horn sounds and the hazard warning lights blink for about 30 seconds if this button (4) is pressed for more than 1 second. To stop the horn and lights, press any button on the smart key.

Remotely starting vehicle (5) (See the MyHyundai app for alternative remote options)

You can start the vehicle using the Remote Start button (5) on the smart key.

To start the vehicle remotely:

Press the door lock button on the smart key within 32 ft. (10 m) from the vehicle.
Press the Remote Start button (5) for more than 2 seconds within 4 seconds after pressing the door lock button.
The hazard warning lights will blink, the vehicle will start, and the climate control system will be set to your last setting.
To turn off the remote start function, press the Remote Start button (5) once.

The vehicle must be in P (Park) for the remote start function to start.
The vehicle turns off if you get in the vehicle without a registered smart key.
The vehicle turns off if you do not get in the vehicle within 10 minutes after remotely starting the vehicle.
The Remote Start button (5) may not operate if the smart key is not within 32 ft. (10 m).
The vehicle will not remotely start if the vehicle hood or liftgate is opened.

Remotely moving vehicle forward or backward (6)

With the smart key, the driver can move the vehicle forward or backward using the Forward or Backward button (6) on the smart key.

For more details, refer to “Remote Smart Parking Assist 2 (RSPA 2)” section in chapter 7.

Starting the vehicle

Your vehicle is equipped with a Start/Stop button instead of a key cylinder. You can leave your smart key in your pocket or purse when you start your vehicle.

For more details, refer to the “Start/Stop button” section in chapter 6.

If the smart key is not moved for some time, the detection function for smart key operation will pause. Lift the smart key to activate the detection again.

To prevent damaging the smart key:

Keep the smart key in a cool, dry place to avoid damage or malfunction. Exposure to moisture or high temperature may cause the internal circuit of the smart key to malfunction which may not be covered under warranty.
Avoid dropping or throwing the smart key.
Protect the smart key from extreme temperatures.

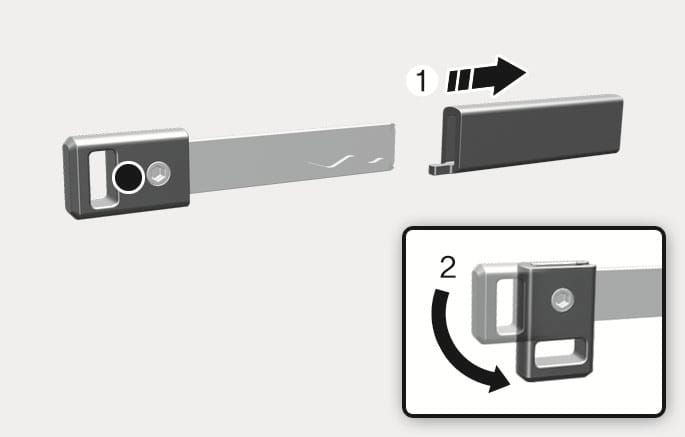

Mechanical key

If the Smart Key does not operate normally, you can lock or unlock the driver’s door using the mechanical key.

Turn the knob (2) of the mechanical key after removing the key protector (1).

After using the mechanical key, turn the key knob (2) and insert the key protector (1).

Loss of a smart key

A maximum of three Smart Keys can be registered to a single vehicle.

If you happen to lose your smart key, it is recommended that you should immediately take the vehicle and remaining keys to your authorized HYUNDAI dealer or tow the vehicle, if necessary.

Smart key precautions

The smart key may not work if any of the following occur:

The smart key is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the transmitter.
The smart key is near a mobile two way radio system or a mobile phone.
Another vehicle’s smart key is being operated close to your vehicle.
If your windows are tinted, especially with metallic window tint, it may cause frequency interference, reducing the smart key operating range.

If the smart key does not work correctly, open and close the door with the mechanical key. Press the Start/Stop button with the key fob. If you have a problem with the smart key, contact an authorized HYUNDAI dealer.

If the smart key is in close proximity to your mobile phone, the signal could be blocked by your mobile phone’s normal operational signals. This is specifically relevant when the phone is active such as making and receiving calls, text messaging, and/or sending/receiving emails. When possible, avoid keeping the smart key and your mobile phone in the same location such as pants or jacket pocket to avoid interference between the two devices.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If the keyless entry system is inoperative due to changes or modifications not expressly approved by the party responsible for compliance, it will not be covered by your manufacturer’s vehicle warranty.

Keep the smart key away from electromagnetic materials that blocks electromagnetic waves to the key surface.
Always have the smart key with you when leaving the vehicle. If the smart key is left near the vehicle, the vehicle battery may be discharged.

Battery replacement

If the smart key is not working properly, try replacing the battery with a new one.

Battery Type: CR2450

To replace the battery:

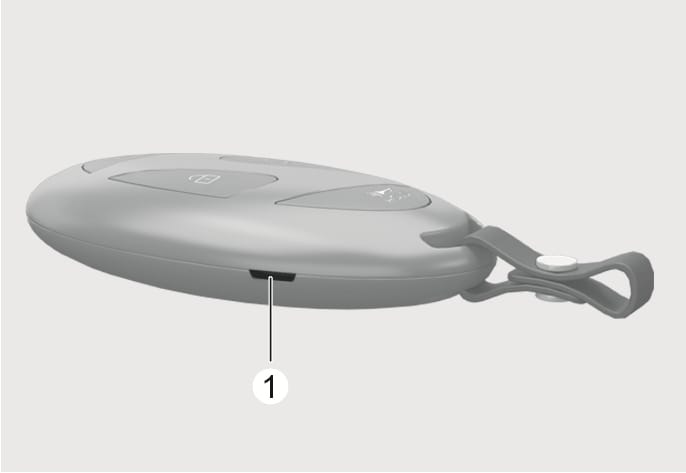

Insert a slim tool into the slot (1) and gently open the rear cover.

2C_RemoveSmartKeyCover

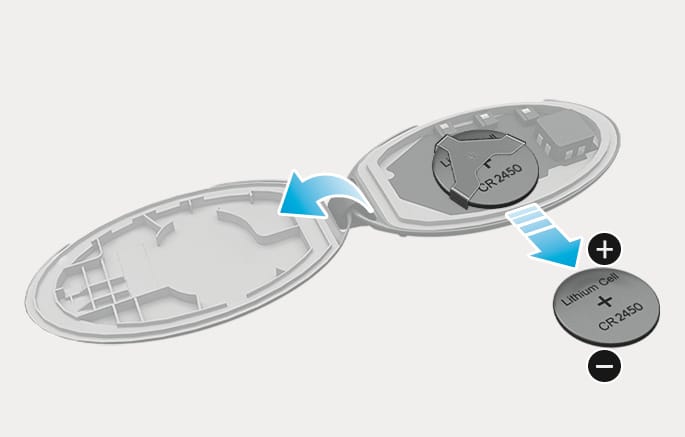

Remove the old battery and insert a new battery. Make sure the battery position is correct. An improperly positioned battery may discharge the battery, causing smart key failure.
Reinstall the rear cover of the smart key.

2C_ReplaceSmartKeyBattery

If you suspect your smart key might have sustained some damage or you feel your smart key is not working correctly, contact an authorized HYUNDAI dealer.

THIS PRODUCT CONTAINS A BUTTON BATTERY.

If swallowed, a lithium button battery can cause severe or fatal injuries within 2 hours. Keep batteries out of reach of children.

If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.

An inappropriately disposed battery can be harmful to the environment and human health. Dispose of the battery according to your local law(s) or regulations.
