Cruise Control operation

Setting speed

  1. Accelerate to the desired speed, which must be more than 20 mph (30 km/h).

  2. Press the Driving Assist button at the desired speed. The set speed and Cruise () indicator will illuminate on the instrument cluster.

    2C_SpeedControlButton

    • A long press turns on MSLA, not Cruise Control. Use a short press to turn on Cruise Control.

  3. Release the accelerator pedal.

    Vehicle speed will maintain the set speed even when the accelerator pedal is not depressed.

  • The vehicle may slightly slow down or speed up while driving uphill or downhill.

  • The Driving Assist button symbol may vary depending on your vehicle option.

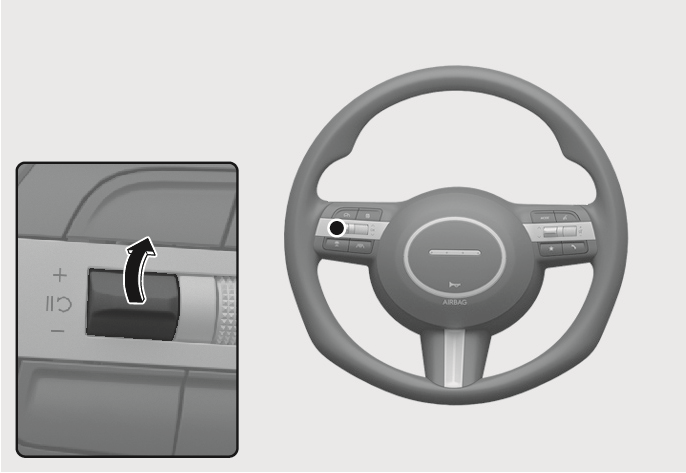

Increasing set speed

2C_SpeedControlSwitch_2

  • Push the + switch up and release it immediately. The set speed will increase by 1 mph (1 km/h) each time the switch is operated in this manner.

  • Push the + switch up and hold it while monitoring the set speed on the instrument cluster. The set speed will increase to the nearest multiple of five (multiple of ten in km/h) at first, and then increase by 5 mph (10 km/h) each time the switch is operated in this manner.

    Release the switch when the desired speed is shown and the vehicle will accelerate to that speed.

The set speed may differ depending on the vehicle specifications. You may not increase the set speed above the maximum set speed.

Decreasing set speed

  • Push the - switch down and release it immediately. The set speed will decrease by 1 mph (1 km/h) each time the switch is operated in this manner.

  • Push the - switch down and hold it while monitoring the set speed on the instrument cluster. The set speed will decrease to the nearest multiple of five (multiple of ten in km/h) at first, and then decrease by 5 mph (10 km/h) each time the switch is operated in this manner.

    Release the switch at the speed you want to maintain.

Accelerating temporarily

If you want to speed up temporarily when Cruise Control is on, depress the accelerator pedal.

To return to the set speed, take your foot off the accelerator pedal.

If you push the + switch up or - switch down at increased speed, the set speed will be set to the current increased speed.

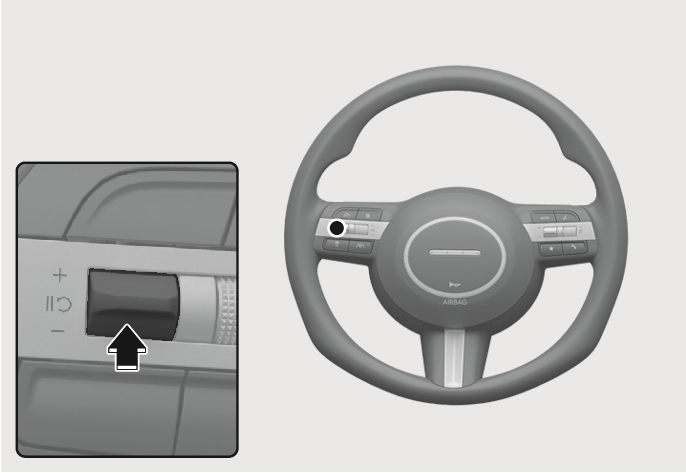

Temporarily pausing Cruise Control

2C_CCTemporarilyPausing

Cruise Control will be paused when:

  • Depressing the brake pedal.

  • Pressing the switch.

  • Shifting the gear to N (Neutral).

  • Decreasing vehicle speed to less than about 20mph (30 km/h).

  • ESC (Electronic Stability Control) is operating.

  • Downshifting to 2nd gear when in Manual Shift mode.

The set speed will turn off but the Cruise () indicator will stay on.

If Cruise Control pauses during a situation that is not mentioned, have the vehicle inspected by an authorized HYUNDAI dealer.

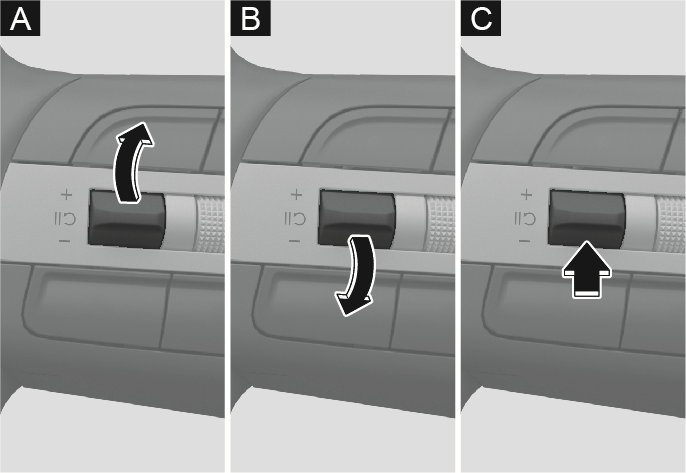

Resuming Cruise Control

2C_SpeedControlResuming

Operate the +, - or switch.

If you push the + switch up [A] or - switch down [B], vehicle speed will be set to the current speed on the instrument cluster.

If you press the switch [C], vehicle speed will resume to the preset speed.

The vehicle speed must be above 20 mph (30 km/h) for Cruise Control to resume.

Check the driving condition before using the switch. Driving speed may sharply increase or decrease when you press the switch.

Turning off Cruise Control

2C_SpeedControlButton

Press the Driving Assist button to turn Cruise Control off. The Cruise () indicator will go off.

Always press the Driving Assist button to turn Cruise Control off when not in use.

If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Cruise Control. However, Manual Speed Limit Assist will turn on.

Take the following precautions when using Cruise Control:

  • Always set the vehicle speed under the speed limit in your area.

  • Keep Cruise Control off when the system is not in use, to avoid inadvertently setting a speed. Check that the Cruise () indicator is off.

  • Cruise Control does not substitute for proper and safe driving. It is the responsibility of the driver to always drive safely and should always be aware of unexpected and sudden situations from occurring.

  • Always drive cautiously to prevent unexpected and sudden situations from occurring. Pay attention to the road conditions at all times.

  • Do not use Cruise Control when it may be unsafe to keep the vehicle at a constant speed:

    • When driving in heavy traffic, or when traffic conditions make it difficult to drive at a constant speed

    • When driving on rainy, icy, or snow-covered roads

    • When driving on hilly or windy roads

    • When driving in windy areas

    • When driving with limited view (possibly due to bad weather, such as fog, snow, rain and sandstorm)

  • Do not use Cruise Control when towing a trailer.
