Air ventilation seats

The air ventilation seats cool the front seats by blowing air through small vent holes on the surface of the seat cushions and seatbacks.

When the air ventilation seat is not desired, keep the air ventilation seats off.

To prevent damage to the air ventilation seats:

  • Never use a solvent such as paint thinner, benzene, alcohol, or gasoline to clean the seats.

  • Avoid spilling liquids on the surface of the front seats and seatbacks. This may cause the air vent holes to become blocked and not to work properly.

  • Do not place materials such as plastic bags or newspapers under the seats. They may block the air intake causing the air vents not to work properly.

  • Do not change the seat covers.

  • If the air vents do not operate, restart the vehicle. If there is no change, have your vehicle inspected by an authorized HYUNDAI dealer.

Front air ventilation seats

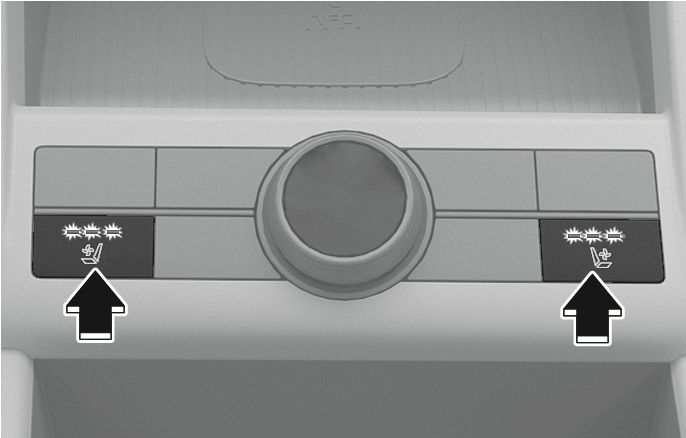

Type A

2C_FrontSeatVentilationSwitch

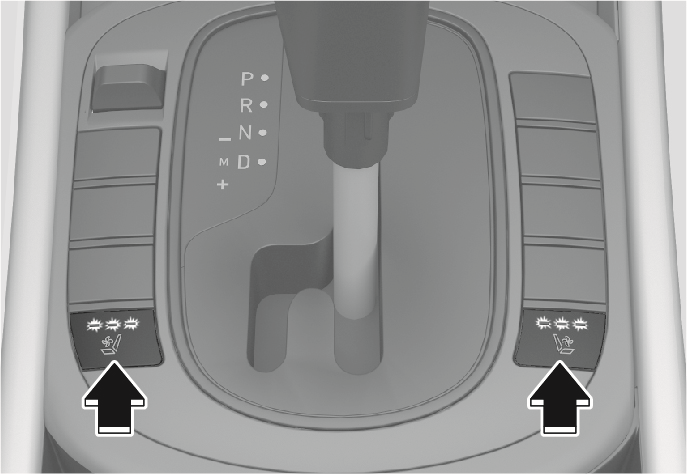

Type B

2C_FrontSeatVentilationSwitch_2

While the engine running, press the switches to cool the driver's seat or front passenger's seat.

  • Press the button repeatedly to cycle through the airflow speeds from high, medium, low, and off.

  • The air ventilation seat defaults to the OFF position whenever the Engine Start/Stop button is pressed to the ON position.
