Fuse/relay panel description
2C_InstrumentPanelFuseLabel

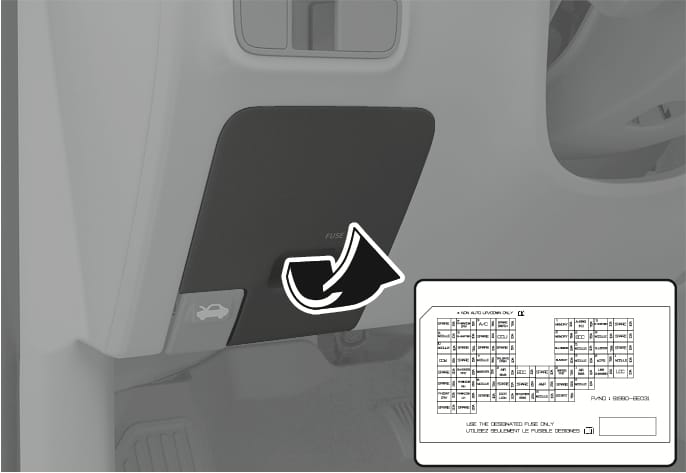

Inside the fuse panel cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label in your vehicle.
1C_InstrumentPanelFuseLabel_2

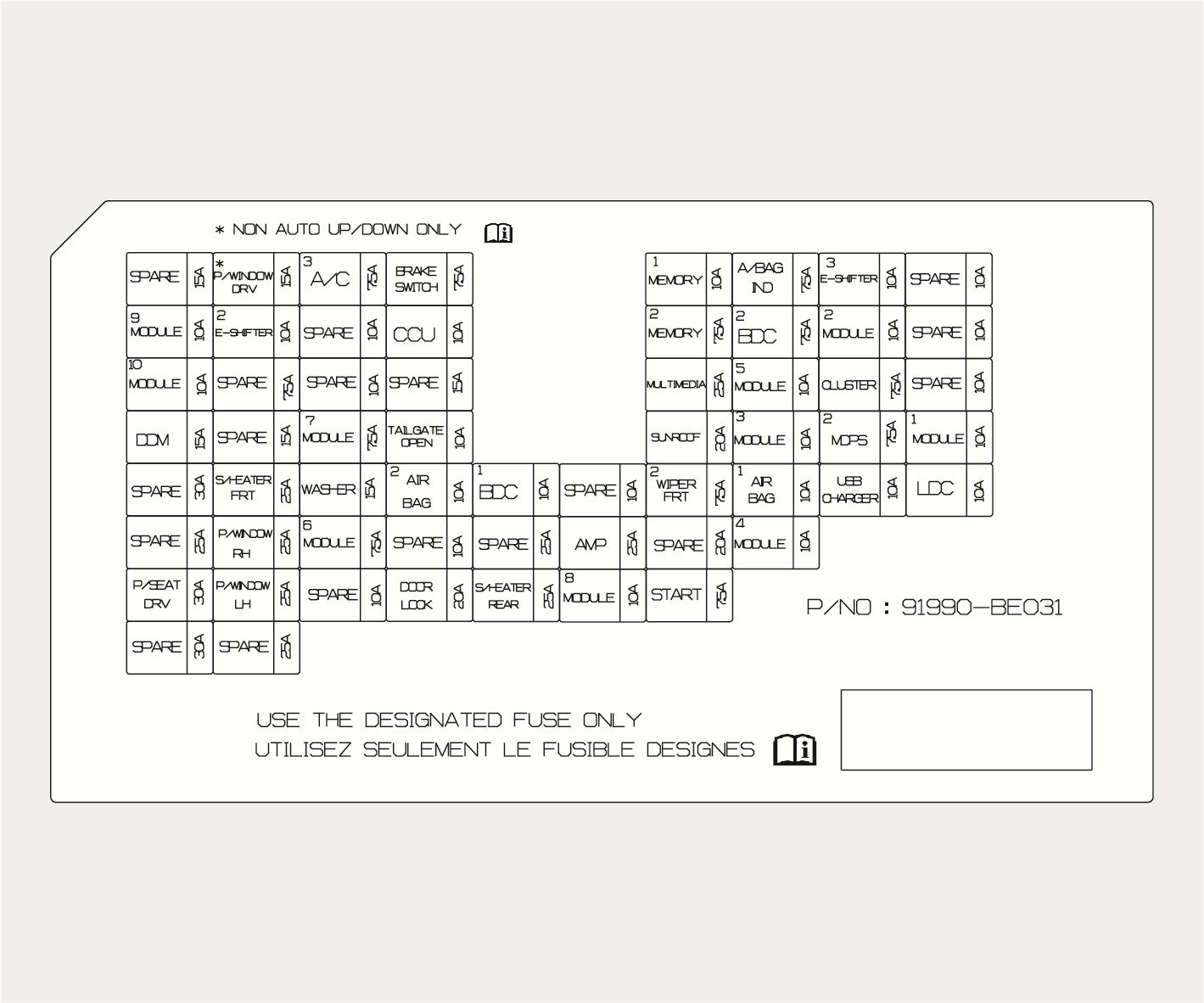

Instrument panel fuse panel
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
SPARE |
As Rated |
Not Used |
|
MODULE 9 |
10 A |
Rain Sensor, Data Link Connector, Hazard Switch, BDC |
|
MODULE 10 |
10 A |
In Cabin Camera (ICC) Unit |
|
DDM |
15 A |
Driver door Module |
|
P/SEAT DRV |
30 A |
Driver Power Seat Switch |
|
P/WINDOW DRV |
15 A |
E/R Junction Block (Driver Power Window #1/#2 Relay) |
|
E-SHIFTER2 |
10 A |
SCU, Electronic ATM Shift Lever |
|
S/HEATER FRT |
25 A |
Front Air Ventilation Control Module, Seat Heater Control Module |
|
P/WINDOW RH |
25 A |
Rear Power Window Switch RH, Passenger Power Window Switch, Passenger Safety Power Window Module |
|
P/WINDOW LH |
25 A |
Rear Power Window Switch LH, Driver Safety Power Window Module |
|
A/C 3 |
7.5 A |
E/R Junction Block (PTC Heater 1/2 Relay), A/C Control Module, Duct Sensor |
|
MODULE 7 |
7.5 A |
12 V Lithium Auxiliary Battery |
|
WASHER |
15 A |
Multifunction Switch |
|
MODULE 6 |
7.5 A |
BDC |
|
BRAKE SWITCH |
7.5 A |
BDC, Stop Lamp Switch |
|
CCU |
10 A |
CCU |
|
TAILGATE OPEN |
10 A |
PDC (Tailgate Relay) |
|
AIR BAG2 |
10 A |
SRS Control Module |
|
DOOR LOCK |
20 A |
PDC (Door Lock/Unlock Relay, Two Turn Unlock Relay) |
|
BDC1 |
10 A |
BDC, ATM Shift Lever |
|
S/HEATER REAR |
25 A |
Seat Heater Control Module |
|
AMP |
25 A |
[With ISG] DC-DC Converter [W/O ISG] AMP |
|
MODULE 8 |
10 A |
Driver/Passenger Smart Key Outside Handle, Power Tailgate Module |
|
MEMORY 1 |
10 A |
ADAS Unit (Parking), Instrument Cluster, Cluster Unit, Mood Lamp, Mood Lamp Unit, DC-DC Converter, A/C Control Module, Driver/Passenger Door Mood Lamp |
|
MEMORY 2 |
7.5 A |
DCU |
|
MULTIMEDIA |
25 A |
[With ISG] DC-DC Converter [W/O ISG] CCNC Head Unit |
|
SUNROOF |
20 A |
Sunroof Blind Motor, Sunroof Glass Motor |
|
WIPER FRT 2 |
7.5 A |
BDC, PCB Block (Wiper LOW Relay) |
|
START |
7.5 A |
[W/O SBW] Inhibitor Switch [With SBW] BDC, E/R Junction Block (Start Relay) |
|
A/BAG IND |
7.5 A |
Overhead Console Keypad |
|
BDC 2 |
7.5 A |
BDC |
|
MODULE 5 |
10 A |
AMP, CCNC Head Unit, In Cabin Camera (ICC) Unit, DC-DC Converter, A/C Control Module, Data Link Connector, Electro Chromic Mirror, Overhead Console Keypad, Smart Phone Wireless Charger Unit, ATM Shift Lever IND., Driver/Passenger Console Switch |
|
MODULE 3 |
10 A |
Driver Door Module, Front Console Switch, Passenger Airbag IND. & Seat Belt Reminder Lamp |
|
AIR BAG 1 |
10 A |
SRS Control Module, Occupant Detection Sensor |
|
MODULE 4 |
10A |
AWD ECM, ADAS Unit (Parking), Rear Corner Radar LH/RH, Front View Camera, Crash Pad Switch |
|
E-SHIFTER 3 |
10 A |
SCU, Electronic ATM Shift Lever |
|
MODULE 2 |
10 A |
CCU, Stop Lamp Switch |
|
CLUSTER |
7.5 A |
Instrument Cluster, Cluster Unit |
|
MDPS 2 |
7.5 A |
MDPS Unit |
|
USB CHARGER |
10 A |
Front USB Charger Connector, Rear USB Charger Connector |
|
MODULE 1 |
10 A |
ADAS Unit (Parking), Front Console Keyboard, BDC, DCU, CCU, DC-DC Converter, AMP, CCNC Head Unit |
|
LDC |
10 A |
CCNC Head Unit, Smart Phone Wireless Charger Unit, USB Jack, A/C Control Module, Instrument Cluster, Cluster Unit, ADAS Unit (Parking), Rear Corner Radar LH/RH |
2C_EngineFuseLabel

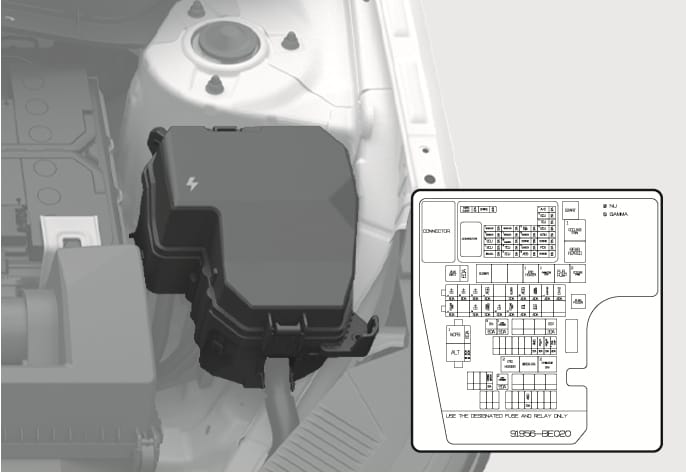

Inside the fuse panel cover, you can find the label describing fuse names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label in your vehicle.
1C_EngineFuseLabel_2

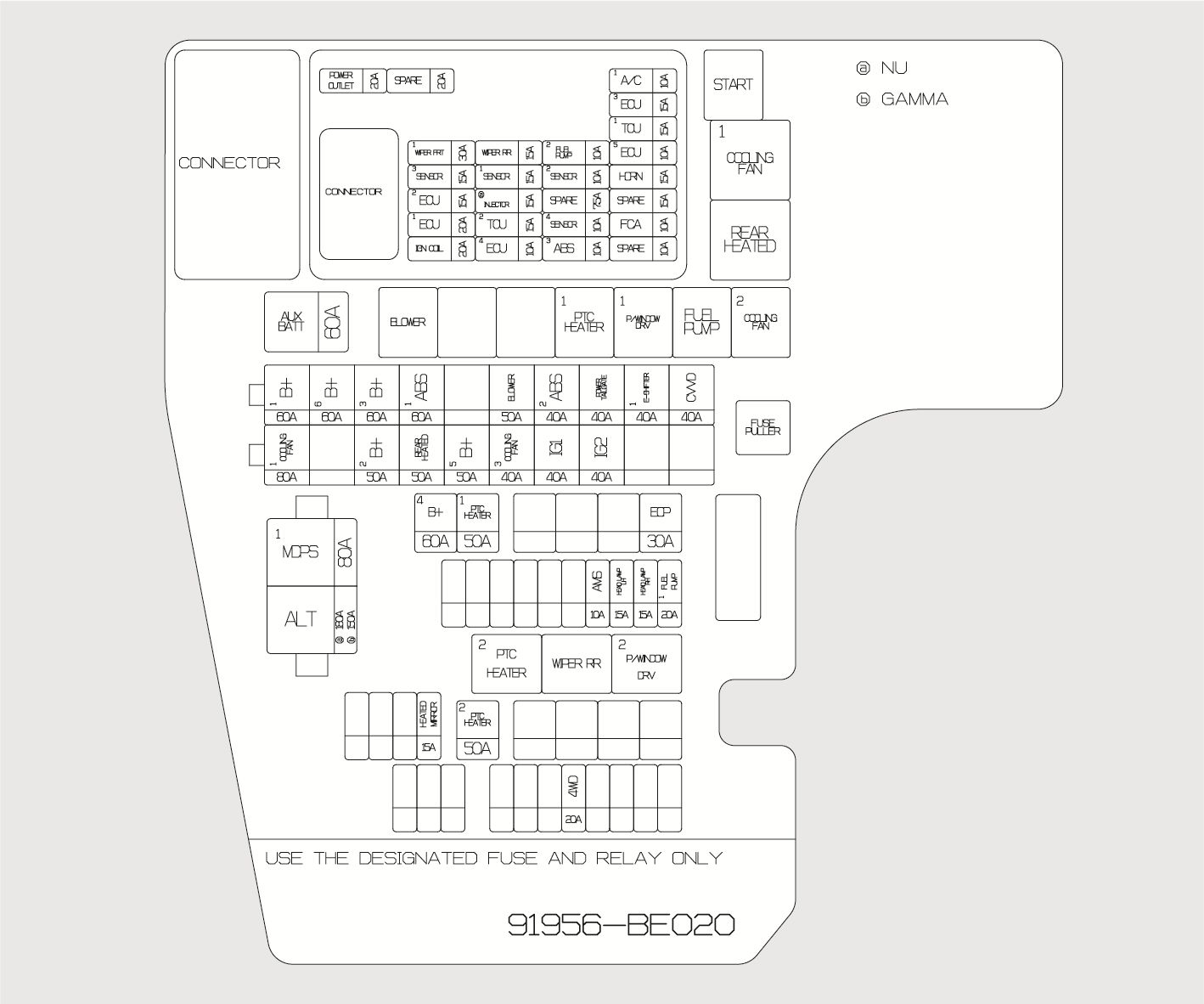

Engine compartment fuse panel (Engine compartment junction block)
|
Type |
Fuse Name |
Fuse Rating |
Circuit Protected |
|
MULTI FUSE-1 |
MDPS 1 |
80 A |
MDPS Unit |
|
ALT |
150 A |
Smartstream G 1.6 T-GDi : E/R Junction Block (Fuse - 4WD, PTC HEATER2) |
|
|
180 A |
Smartstream G 2.0 Atkinson : E/R Junction Block (Fuse - 4WD, PTC HEATER2) |
||
|
MULTI FUSE-2 |
COOLING FAN 1 |
80 A |
Smartstream G 1.6 T-GDi : Cooling Fan Controller |
|
B+2 |
50 A |
PDC (IPS9 (4CH), IPS11 (2CH), IPS12 (4CH)) |
|
|
REAR HEATED |
50 A |
E/R Junction Block (Rear Heated Relay) |
|
|
B+5 |
50 A |
PDC (Fuse - AMP, MODULE8, AIRBAG2, SUNROOF) |
|
|
COOLING FAN 3 |
40 A |
Smartstream G 2.0 Atkinson : E/R Junction Block (Cooling Fan 1/2 Relay) |
|
|
IG1 |
40 A |
PCB Block (ACC Relay, IG1 Relay) |
|
|
IG2 |
40 A |
E/R Junction Block (Start Relay), PCB Block (IG2 Relay) |
|
|
MULTI FUSE-3 |
B+1 |
60 A |
PDC (IPS3 (4CH), IPS7 (2CH), IPS4 (1CH), IPS2 (2CH), IPS6 (2CH), IPS5 (1CH)) |
|
B+6 |
60 A |
PCB Block (Main Relay, Wiper Front Relay, Fuse - TCU1, ECU5, ECU3, HORN, A/C) |
|
|
B+3 |
60 A |
PDC (Fuse - MODULE9, P/SEAT DRV, S/HEATER FRT, DDM, E-SHIFTER2, MODULE10, P/WINDOW DRV, P/WINDOW LH/RH) |
|
|
ABS1 |
60 A |
ESP Module |
|
|
BLOWER |
50 A |
E/R Junction Block (Blower Relay) |
|
|
ABS 2 |
40 A |
ESP Control Module, Multipurpose Check Connector |
|
|
POWER TAILGATE |
40 A |
Power Tailgate Module |
|
|
E-SHIFTER 1 |
40 A |
SCU (Shift By Wire Control Unit) |
|
|
CVVD |
40 A |
CVVD Actuator |
|
|
FUSE |
AUX BATTERY |
60 A |
12 V Lithium Auxiliary Battery |
|
B+4 |
60 A |
PDC (Fuse - BDC1, CCU, DOOR LOCK, BRAKE SWITCH, TAILGATE OPEN, S/HEATER REAR, IPS13 (1CH)) |
|
|
PTC HEATER 1 |
50 A |
E/R Junction Block (PTC Heater1 Relay) |
|
|
EOP |
30 A |
Electronic Oil Pump |
|
|
AMS |
10 A |
Battery Sensor |
|
|
HEAD LAMP LH |
15 A |
Head Lamp LH |
|
|
HEAD LAMP RH |
15 A |
Head Lamp RH |
|
|
FUEL PUMP 1 |
20 A |
E/R Junction Block (Fuel Pump Relay) |
|
|
HEATED MIRROR |
15 A |
Driver/Passenger Power Outside Mirror, ECM |
|
|
PTC HEATER 2 |
50 A |
E/R Junction Block (PTC Heater2 Relay) |
|
|
4WD |
20 A |
AWD ECM |
Engine compartment fuse panel (PCB block)
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
POWER OUTLET |
20 A |
Power Outlet |
|
WIPER FRT 1 |
30 A |
PCB Block (Wiper Front Low Relay), Front Wiper Motor |
|
SENSOR 3 |
15 A |
[Smartstream G 1.6 T-GDi] Cooling Fan Controller |
|
ECU 2 |
15 A |
ECM |
|
ECU 1 |
20 A |
ECM/PCM |
|
IGN COIL |
20 A |
Ignition Coil #1/#2/#3/#4 |
|
WIPER RR |
15 A |
E/R Junction Block (Rear Wiper Relay), Rear Wiper Motor |
|
SENSOR 1 |
15 A |
Oxygen Sensor (Up/Down) |
|
INJECTOR |
15 A |
[Smartstream G 2.0 Atkinson] Injector #1/#2/#3/#4 |
|
TCU 2 |
15 A |
[Smartstream G 1.6 T-GDi] TCM, [Smartstream G 2.0 Atkinson] Inhibitor Switch |
|
ECU 4 |
10 A |
[Smartstream G 1.6 T-GDi] ECM, CVVD Actuator, [Smartstream G 2.0 Atkinson] PCM |
|
FUEL PUMP 2 |
10 A |
E/R Junction Block (Fuel Pump Relay) |
|
SENSOR 2 |
10 A |
[Smartstream G 1.6 T-GDi] PCB Block (A/C Relay), RCV Control Solenoid Valve, Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Oil Control Valve #1/#2, Canister Close Valve, Oil Level Sensor [Smartstream G 2.0 Atkinson] PCB Block (A/C Relay), E/R Junction Block (Cooling Fan 1/2 Relay), Canister Close Valve, Oil Control Valve #1/#2, Oil Level Sensor, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Oil Pressure Solenoid Valve |
|
SENSOR 4 |
10 A |
Electric oil pump |
|
ABS 3 |
10 A |
ESC Control Module, Multipurpose Check Connector |
|
A/C 1 |
10 A |
PCB Block (A/C Relay) |
|
ECU 3 |
10 A |
ECM/PCM |
|
TCU 1 |
15 A |
[Smartstream G 1.6 T-GDi] TCM [Smartstream G 2.0 Atkinson] PCM |
|
ECU 5 |
10 A |
[Smartstream G 1.6 T-GDi] ECM |
|
HORN |
15 A |
PCB Block (Horn Relay) |
|
FCA |
10 A |
Front Radar Unit |
