Instrument cluster

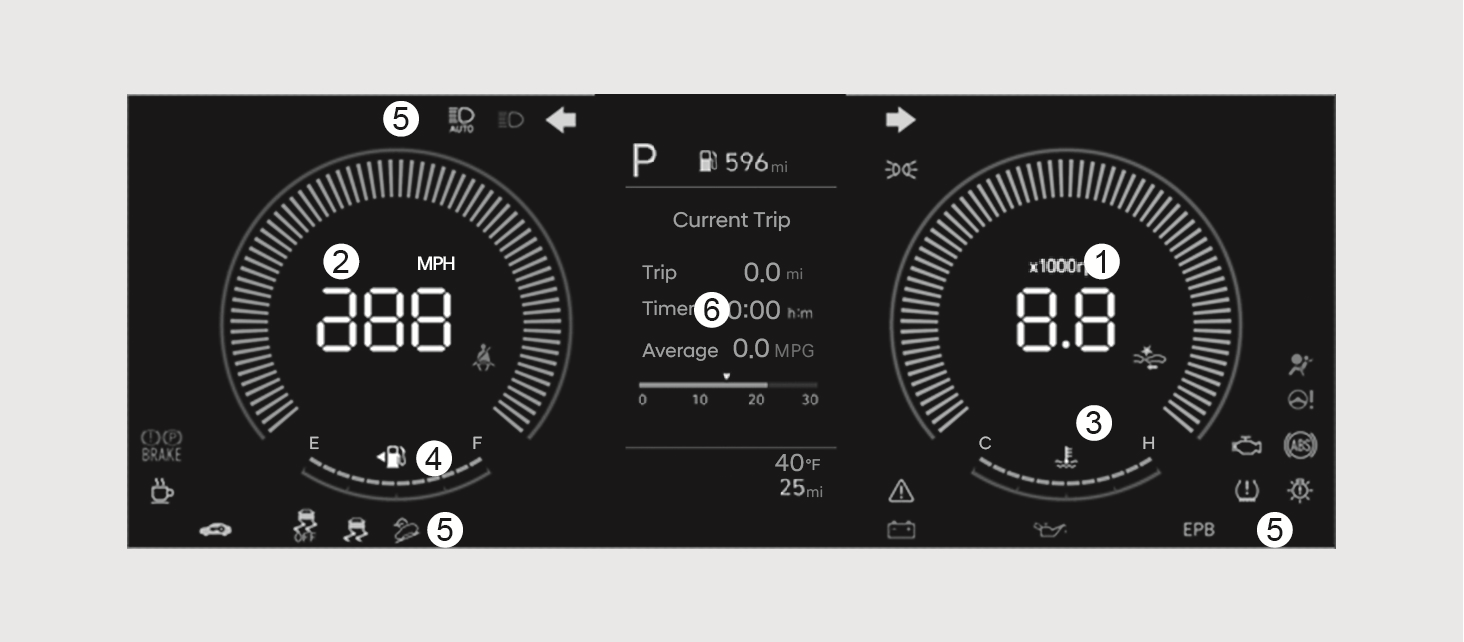

Type A
1C_ClusterOverview

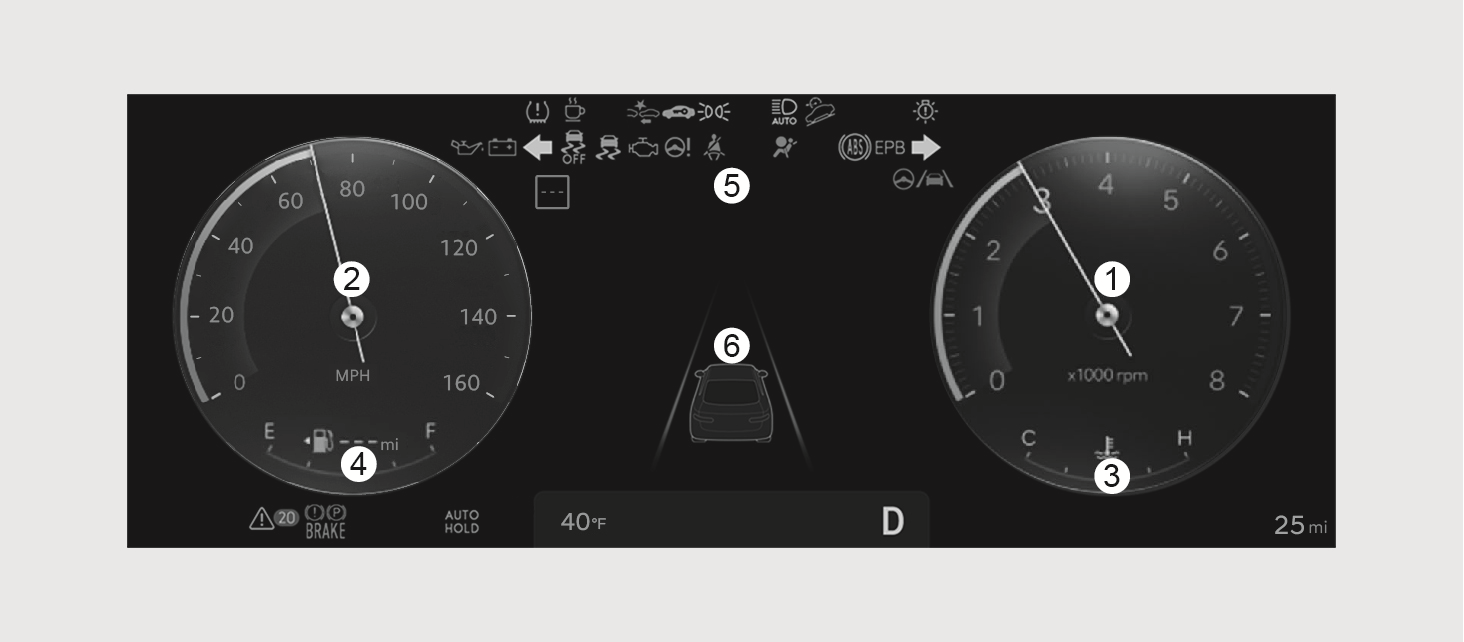

Type B
1C_ClusterOverview_2

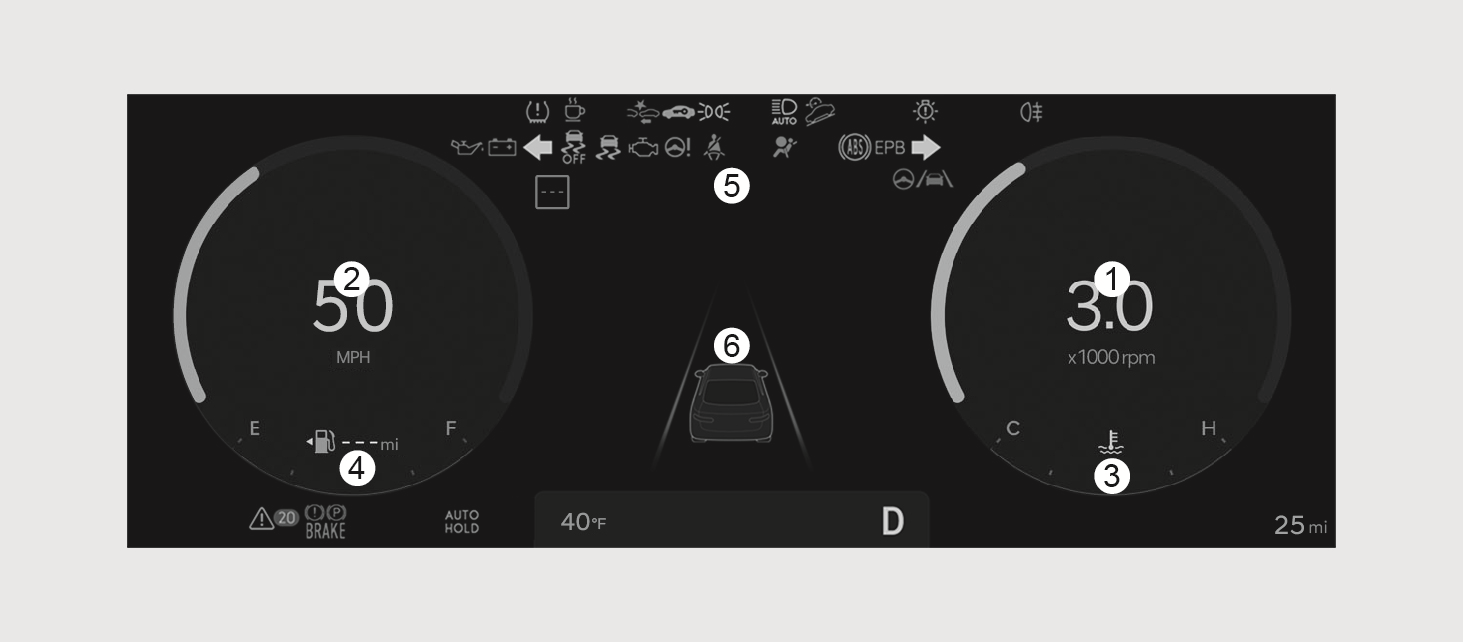

Type C
1C_ClusterOverview_3

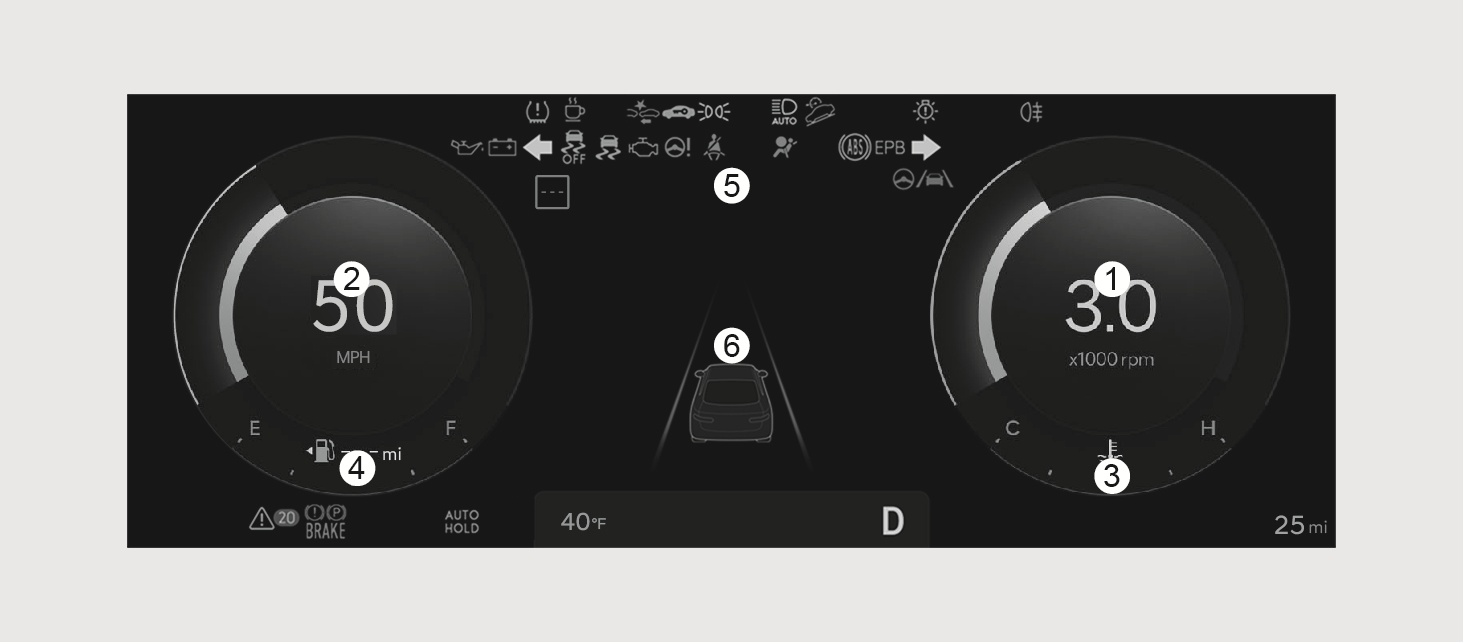

Type D
1C_ClusterOverview_4
The actual cluster in the vehicle may differ from the illustration. For more information, refer to the “Gauges and meters” section in this chapter.
- Tachometer
- Speedometer
- Engine coolant temperature gauge
- Fuel gauge
- Warning and indicator lights
- Cluster display
