Rear View Monitor operation

Parking/View button

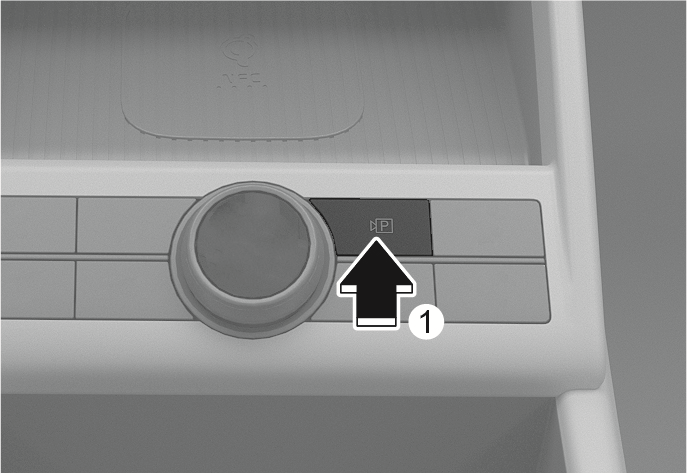

Type A

2C_ParkingViewButton

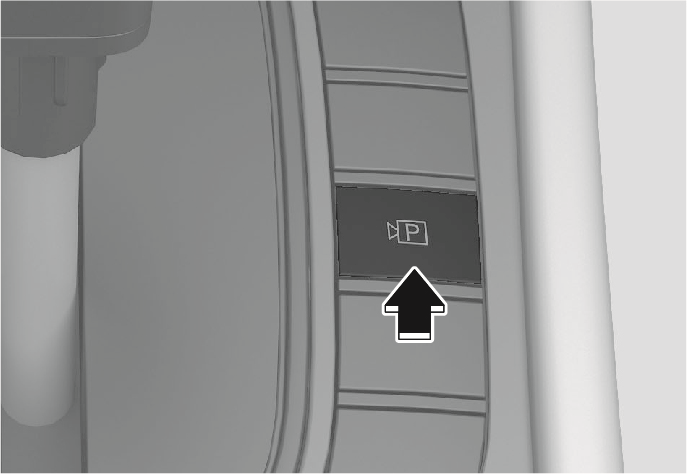

Type B

2C_ParkingViewButton_2

Press the Parking/View button (1) while the gear is in P (Park), D (Drive) or N (Neutral) to turn on the Rear View Monitor.

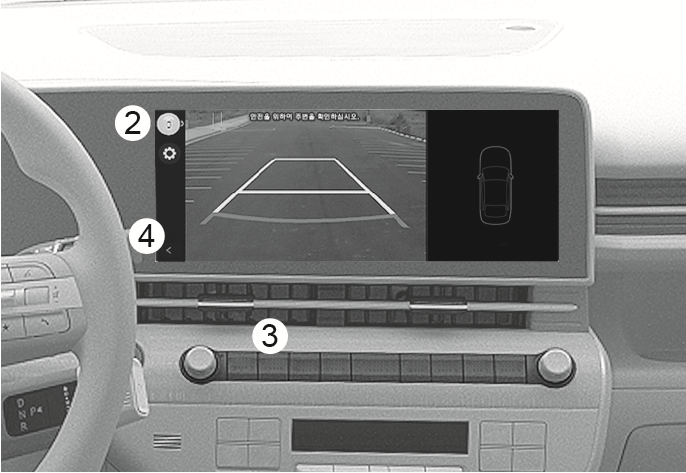

Rear view

2C_RearViewInfo

Operating conditions

  • The gear is shifted to R (Reverse).

  • The Parking/View button (1) is pressed while the gear is in P (Park), N (Neutral) or D (Drive), and vehicle speed is 6 mph (10 km/h) or less.

Touch the Change View button (2) to select rear view or rear top view.

Off conditions

  • The gear is shifted to P (Park).

  • The Parking/View button (1) or the Infotainment system button (3) is Pressed.

  • The gear is in N (Neutral) or D (Drive) and the vehicle speed is above 6 mph (10 km/h).

  • The previous button (4) is selected on the rear view menu.

When the gear is in R (Reverse), the rear view does not turn off.

Extended Rear View Monitor

The rear view will maintain showing on the screen to help you when parking.

Operating conditions

The gear is shifted from R (Reverse) to N (Neutral) or D (Drive), and vehicle speed is 6 mph (10 km/h) or less.

Off conditions

  • When vehicle speed is above 6 mph (10 km/h), the rear view will turn off.

  • Shift the gear to P (Park), the rear view will turn off.

  • Press the Parking/View button (1), the rear view will turn off.

  • The rear view does not turn off regardless of the mode when the gear is in R (Reverse).

  • The rear view is always displayed when the gear is in R (Reverse).

  • The rear parking guidelines are displayed in rear view and rear top view mode. (When selected in Setup > Vehicle > Driver Assistance > Parking Safety > Camera Settings > Display Contents > Rear View Parking Lines from the Settings menu in the infotainment system).
