Interior light replacement

Map lamp, room lamp, vanity mirror lamp, glove box lamp, mood lamp, and luggage compartment lamp (LED type)

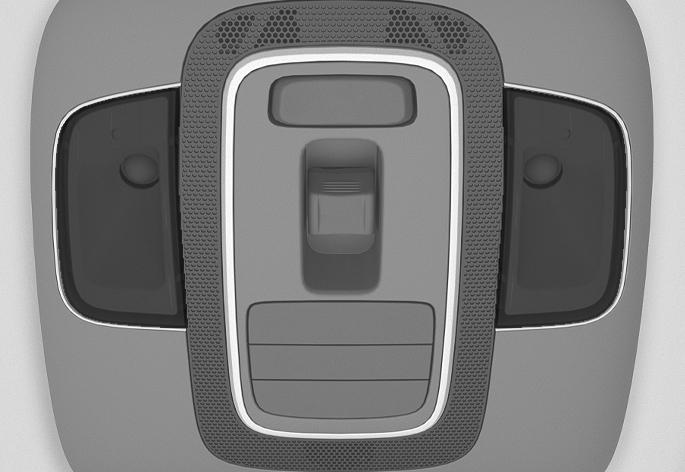

Map lamp

2C_MapLampLED

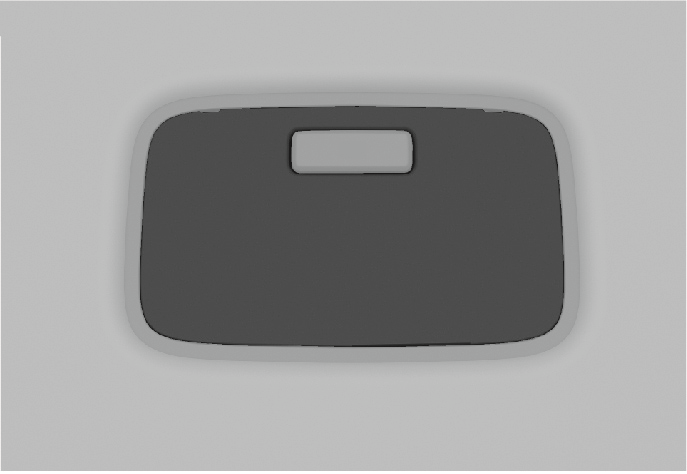

Room lamp

2C_RoomLampLED

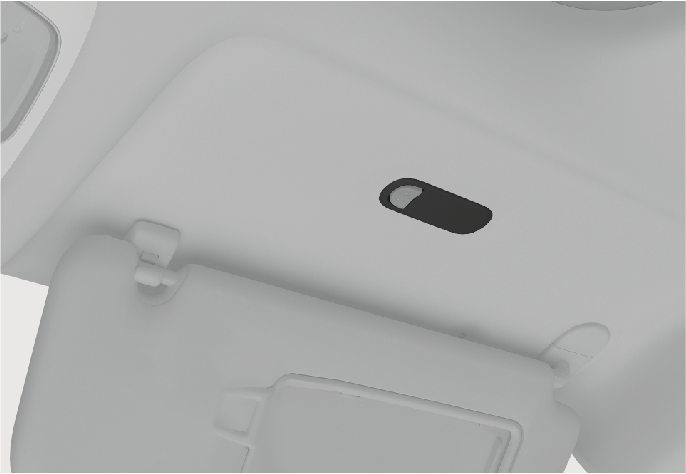

Vanity mirror lamp

2C_SunvisorLampLED

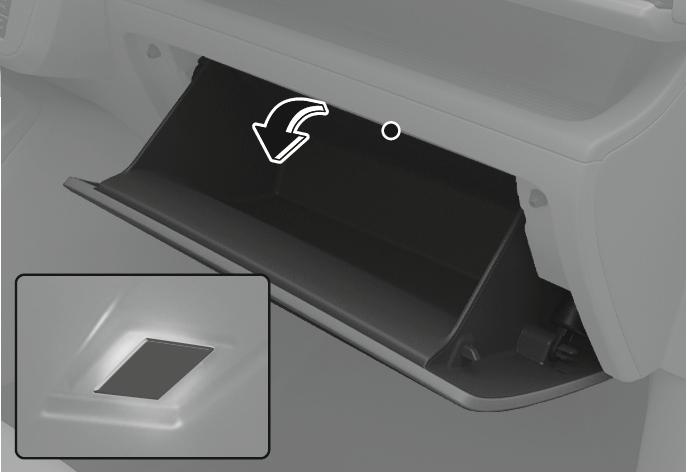

Glove box lamp

2C_GloveBoxLampLED

Mood lamp

2C_MoodLampLED

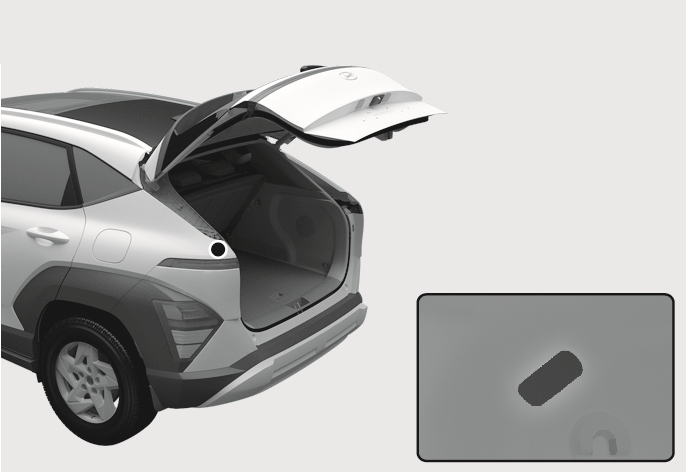

Luggage compartment lamp

2C_LuggagRoomLampLED

If the LED lamp does not operate, have your vehicle inspected by an authorized HYUNDAI dealer.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

Map lamp, room lamp, vanity mirror lamp, and glove box lamp (bulb type)
Map lamp

2C_MapLampBulb

Room lamp

2C_RoomLampBulb

Vanity mirror lamp

2C_SunvisorLampBulb

Glove box lamp

2C_GloveBoxLampBulb

  1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.

  2. Remove the bulb by pulling it straight out.

  3. Install a new bulb into the socket.

  4. Align the lens tabs with the interior light housing notches and snap the lens into place.

Be careful not to damage the cover, tab, and plastic housing.
