Fuse panel description
2C_InstrumentPanelFuseLabel
Inside the fuse panel cover, you can find the label describing fuse names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label.

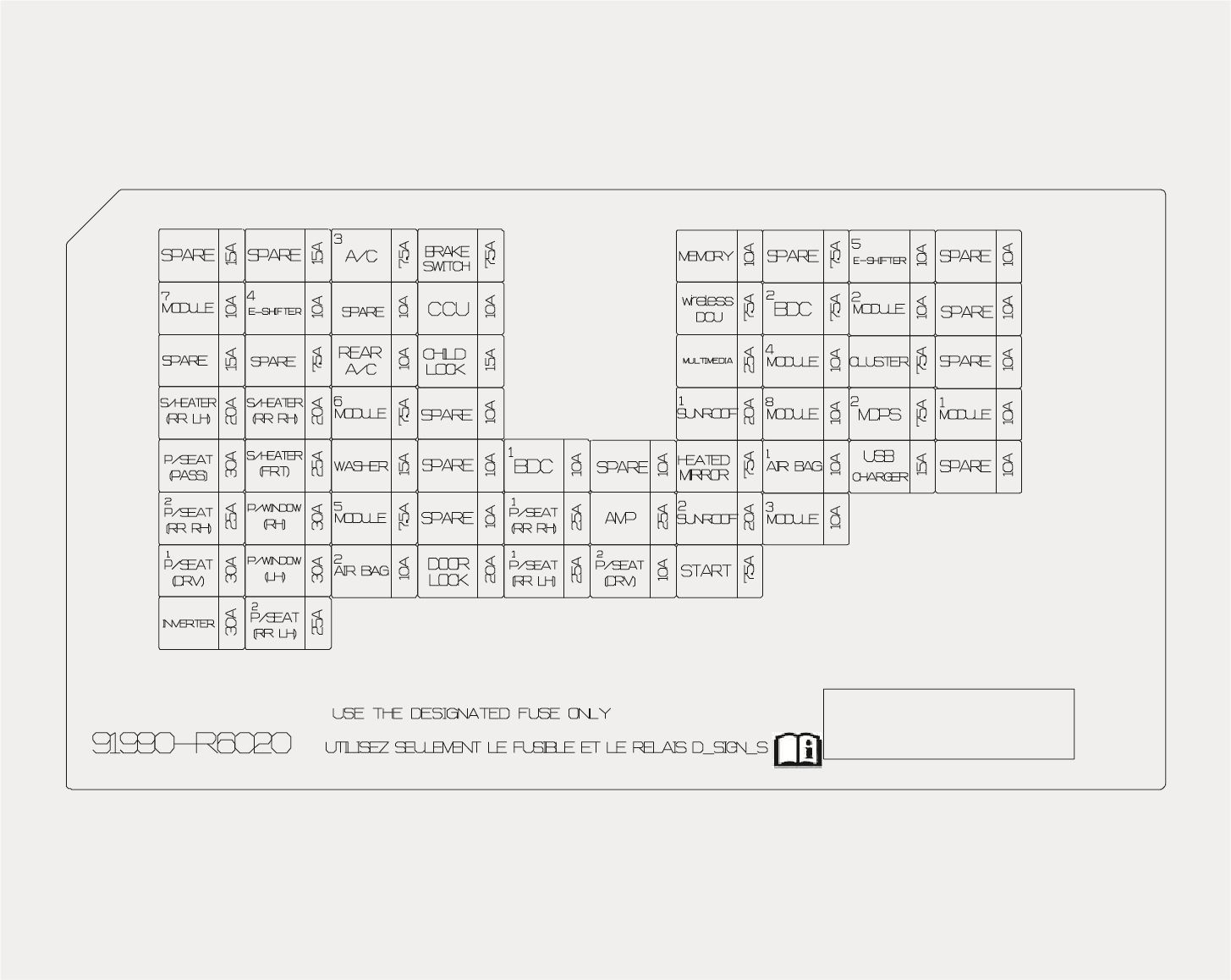

1C_InstrumentPanelFuseLabel_2
Instrument panel fuse panel
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
AAF |
15A |
Active Air Flap (Upper LH/RH, Lower) |
|
A/C3 |
7.5A |
E/R Junction Block (PTC Heater Relay) [Auto A/C] Front A/C Control Module, Incar Temperature Sensor, Front A/C Control Panel [Manual A/C] Front A/C Control Module |
|
BRAKE SWITCH |
7.5A |
BDC, Stop Lamp Switch |
|
MEMORY |
10A |
Rear A/C Control Module, Fingerprint Recognition Unit, BDC, Infotainment Jack Assembly, Front A/C Control Module, CDCU, Head-Up Display, Mood Lamp Unit, Front Corner Radar LH/RH, Driver/Passenger Mood Lamp, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp, Mood Lamp (Monitor) [With AMP] Low DC-DC Converter (AMP) [Auto A/C] Front A/C Control Panel |
|
E-SHIFTER5 |
10A |
Electronic ATM Shift Lever 10A |
|
MODULE7 |
10A |
E/R Junction Block (Blower Relay), Data Link Connector, Hazard Switch, Rain Sensor, In Cabin Camera (ICC) Unit, Power Liftgate Unit, Driver/Passenger Power Outside Mirror, Driver/Passenger Smart Key Outside Handle, Driver Lumbar Support Unit, Driver/Passenger Power Seat Switch, Driver/Passenger Power Seat Module, Driver Door Module, Passenger Seat Heater Control Module, Passenger Air Ventilation Seat Control Module |
|
E-SHIFTER4 |
10A |
Electronic ATM Shift Lever |
|
CCU |
10A |
CCU |
|
BDC2 |
7.5A |
BDC |
|
MODULE2 |
10A |
CCU, Stop Lamp Switch |
|
REAR A/C |
10A |
Rear A/C Control Module |
|
CHILD LOCK |
15A |
Child Lock/Unlock Relay |
|
MULTIMEDIA |
25A |
[W/O AMP] Low DC-DC Converter |
|
MODULE4 |
10A |
Driver Power Seat Module, AMP, Overhead Console Assembly, Electro Chromic Mirror, UVC Lamp, Fingerprint Recognition, CCNC Head Unit, Low DC-DC Converter, Data Link Connector, Front A/C Control Module, Wireless Charger Connector #1/ #2 [With Auto A/C] Front A/C Control Panel |
|
CLUSTER |
7.5A |
Cluster Unit, Head-Up Display |
|
S/HEATER (RR LH) |
20A |
2ND Power Seat Control Module LH |
|
S/HEATER (RR RH) |
20A |
2ND Seat Heater Control Module, 2ND Seat Heater Control Module |
|
MODULE6 |
7.5A |
AC Inverter Module, AC Inverter Outlet, Head Lamp LH/RH, 12V Lithium Auxiliary Battery |
|
SUNROOF1 |
20A |
Front Sunroof Motor |
|
MODULE8 |
10A |
Driver Door Module |
|
MDPS2 *1 |
7.5A |
MDPS Unit |
|
MODULE1 |
10A |
ADAS Unit (Parking), BDC, CCU, DCU, CCNC Keyboard, Low DC-DC Converter |
|
P/SEAT (PASS) |
30A |
Passenger Power Seat Switch |
|
S/HEATER (FRT) |
25A |
[W/O Power Seat] Passenger Seat Heater Control Module, [With Power Seat] Passenger Air Ventilation Seat Control Module |
|
WASHER |
15A |
Multifunction Switch |
|
BDC1 |
10A |
Driver/Passenger Smart key Outside Handle, Bluetooth Unit, Rear UWB Unit LH/RH, Front UWB Unit LH/RH, BDC |
|
wireless DCU |
10A |
DCU |
|
HEATED MIRROR |
7.5A |
Driver/Passenger Power Outside Mirror |
|
AIR BAG1 |
10A |
SRS Control Module, Passenger Occupant Detection Sensor |
|
USB CHARGER |
15A |
Infotainment Jack Assembly, Luggage USB Charger, Connector LH/RH, Driver/Passenger USB Charger Connector |
|
P/SEAT (RR RH)2 |
25A |
2ND Seat Reclining Folding Actuator RH |
|
P/WINDOW (RH) |
30A |
Rear Safety Power Window Module RH, Rear Power Window, Switch RH, Passenger Safety Power Window Module, Passenger Power Window Switch |
|
MODULE5 |
7.5A |
BDC |
|
P/SEAT (RR RH)1 |
25A |
2ND Power Seat Control Module RH |
|
AMP |
25A |
Low DC-DC Converter |
|
SUNROOF2 |
20A |
Roller Blind Motor |
|
MODULE3 |
10A |
CDCU, ADAS Unit (Driving/Parking), Crash Pad Switch, Floor Console Switch, In Cabin Camera (ICC) Unit, AWD ECM, Front View Camera (ADAS), Front Corner Radar LH/RH, Smart Cruise Control Unit, Rear Corner Radar LH/RH |
|
P/SEAT (DRV)1 |
30A |
Driver Power Seat Module, Driver Power Seat Switch |
|
P/WINDOW (LH) |
30A |
Rear Safety Power Window Module LH, Driver Safety Power Window Module, Rear Power Window Switch LH |
|
AIR BAG2 |
10A |
SRS Control Module |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay |
|
P/SEAT (RR LH)1 |
25A |
2ND Power Seat Control Module LH |
|
P/SEAT (DRV)2 |
10A |
Driver Power Seat Switch |
|
START |
7.5A |
BDC, PCM |
|
INVERTER |
30A |
AC Inverter Module, AC Inverter Module |
|
P/SEAT (RR LH)2 |
25A |
2ND Seat Reclining Folding Actuator LH |
MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

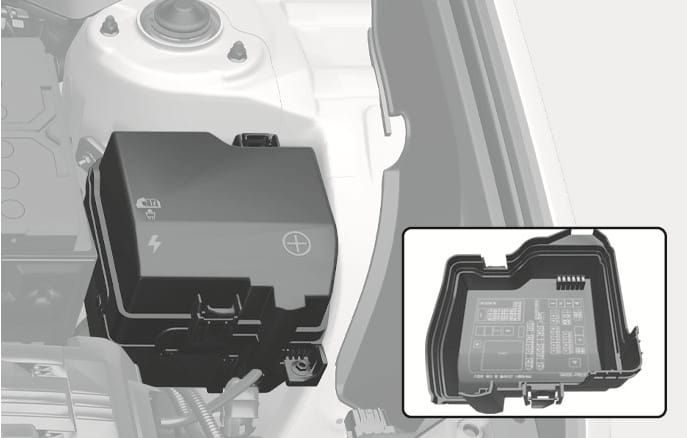

2C_EngineFuseLabel
Inside the fuse panel cover, you can find the label describing fuse names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label.

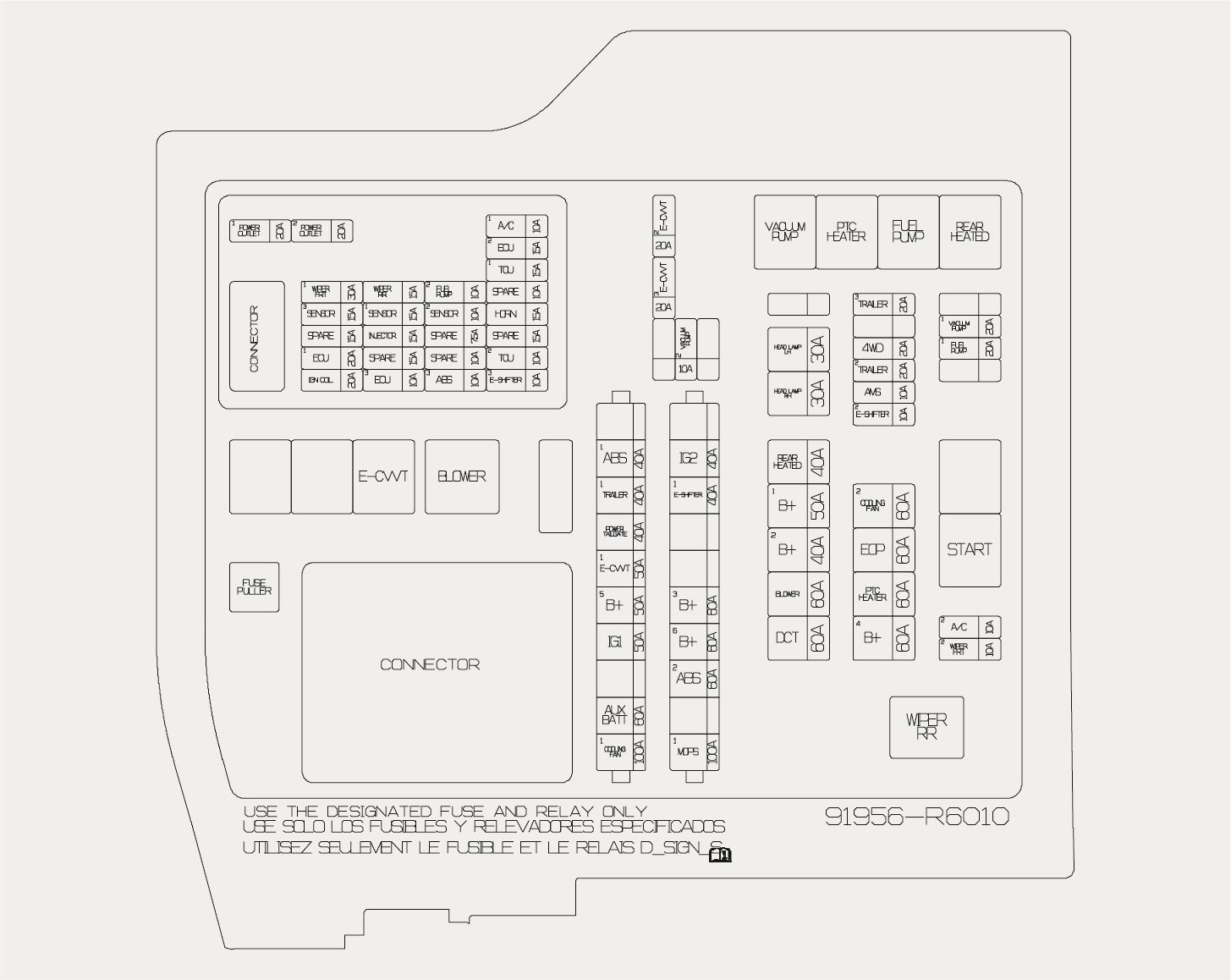

1C_EngineFuseLabel_2
Engine compartment fuse panel
|
Type |
Fuse Name |
Fuse Rating |
Circuit Protected |
|
MULTI FUSE A |
ABS1 |
40A |
ESC Module |
|
TLAILER1 |
40A |
Trailer Connector |
|
|
POWER TAILGATE |
40A |
Power Liftgate Unit |
|
|
E-CVVT1 |
50A |
E/R Junction Block (E-CVVT Relay) |
|
|
B+5 |
50A |
PDC (Fuse : AMP, SUNROOF1, SUNROOF2, AIR BAG2, P/SEAT(DRV)2, WIRELESS DCU) |
|
|
IG1 |
50A |
PCB Block (ACC Relay, IG1 Relay) |
|
|
AUX BATT |
60A |
12 V Lithium Auxiliary Battery |
|
|
COOLING FAN1 |
100A |
Cooling Fan Motor |
|
|
MULTI FUSE B |
IG2 |
30A |
E/R Junction Block (Start Relay), PCB Block (IG2 Relay) |
|
E-SHIFTER1 |
30A |
SCU |
|
|
B+3 |
60A |
PDC (Fuse - P/SEAT (RR LH)2, P/SEAT (RR RH)2, P/SEAT (DRV)1, P/SEAT (FRT), P/SEAT(PASS), AAF) |
|
|
B+6 |
60A |
PCB Block (Fuse : ECU2, HORN, A/C1, Wiper Relay, Main Relay) |
|
|
ABS2 |
60A |
ESC Module |
|
|
MDPS1*1 |
80A |
MDPS Unit |
|
|
FUSE |
REAR HEATED |
40A |
E/R Junction Block (Rear Heated Relay) |
|
B+1 |
50A |
PDC (IPS4, IPS5, IPS6, IPS7) |
|
|
B+2 |
40A |
PDC (IPS11, IPS12) |
|
|
BLOWER |
60A |
E/R Junction Block (Blower Relay) |
|
|
DCT |
60A |
TCM |
|
|
COOLING FAN2 |
60A |
Cooling Fan Motor |
|
|
EOP |
60A |
Electronic Oil Pump |
|
|
PTC HEATER |
60A |
E/R Junction Block (PTC Heater Relay) |
|
|
B+4 |
60A |
PDC (Fuse : DOORLOCK, CCU, BRAKESWITCH, BDC1, CHILDLOCK, P/SEAT (RR LH)1, P/SEAT (RR RH)1, IPS13), Long Term Load Latch Relay (Fuse : MULTIMEDIA, MEMORY) |
|
|
HEAD LAMP LH |
30A |
Head Lamp LH |
|
|
HEAD LAMP RH |
30A |
Head Lamp RH |
|
|
TRAILER3 |
20A |
Trailer Controller |
|
|
4WD |
20A |
AWD ECM |
|
|
TRAILER2 |
20A |
Trailer Connector |
|
|
AMS |
10A |
Battery Sensor |
|
|
E-SHIFTER2 |
10A |
SCU |
|
|
VACUUM PUMP1 |
20A |
E/R Junction Block (Vacuum Pump Relay) |
|
|
FUEL PUMP |
20A |
E/R Junction Block (Fuel Pump Relay) |
|
|
A/C2 |
10A |
Rear A/C Control Module, Rear Blower Motor |
|
|
WIPER FRT2 |
10A |
BDC, PCM |
|
|
E-CVVT2 |
20A |
PCM |
|
|
E-CVVT3 |
20A |
PCM |
|
|
VACUUM PUMP2 |
10A |
ESC Module |
MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)
Engine compartment fuse panel (PCB block)
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
POWER OUTLET1 |
20A |
Luggage Power Outlet |
|
POWER OUTLET2 |
20A |
Front Power Outlet |
|
WIPER FRT1 |
30A |
Front Wiper Motor |
|
SENSOR3 |
15A |
Canister Close Valve |
|
ECU1 |
20A |
PCM |
|
IGN COIL |
20A |
Ignition Coil #1, #2, #3, #4 |
|
WIPER RR |
15A |
Rear Wiper Motor, E/R Junction Block (Wiper RR Relay) |
|
SENSOR1 |
15A |
Oxygen Sensor (UP/DOWN) |
|
INJECTOR |
15A |
Injector #1, #2, #3, #4 (MPI) |
|
ECU3 |
10A |
PCM |
|
FUEL PUMP2 |
10A |
E/R Junction Block (Fuel Pump Relay) |
|
SENSOR2 |
10A |
A/C Relay, Purge Control Solenoid Valve, Oil Control Valve, Variable Oil Pump Solenoid, Cooling Fan Motor, RCV Control Solenoid Valve, Oil Level Sensor |
|
ABS3 |
10A |
ESC Module |
|
A/C1 |
10A |
A/C Relay |
|
ECU2 |
15A |
PCM |
|
TCU1 |
15A |
- |
|
HORN |
15A |
Horn Relay |
|
TCU2 |
10A |
TCM |
|
E-SHIFTER3 |
10A |
SCU |
