Rear Seats

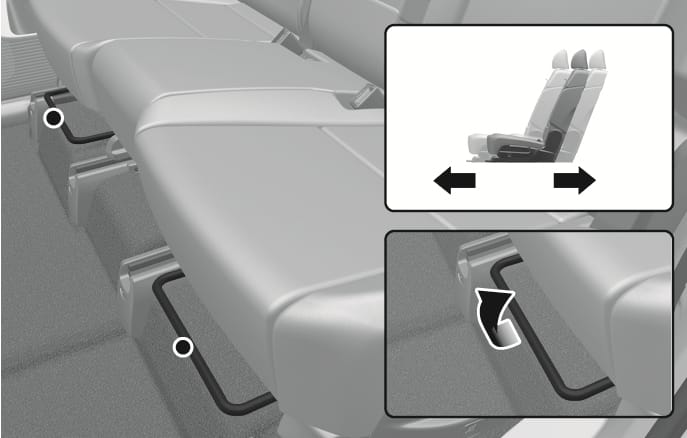

2nd row seat adjustment (7-seater)

Forward and rearward

To move the seat forward or rearward:

Pull the seat slide adjustment lever up and hold it.
Slide the seat to the position you desire.
Release the lever and make sure the seat is locked in place.

Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and backward without using the lever. If the seat moves, it is not locked properly.

Seatback angle adjustment

To recline the seatback:

Pull up the seatback recline lever.
Hold the lever and adjust the seatback of the seat to the position you desire.
Release the lever and make sure the seatback is locked in place. (The lever must return to its original position for the seatback to lock.)

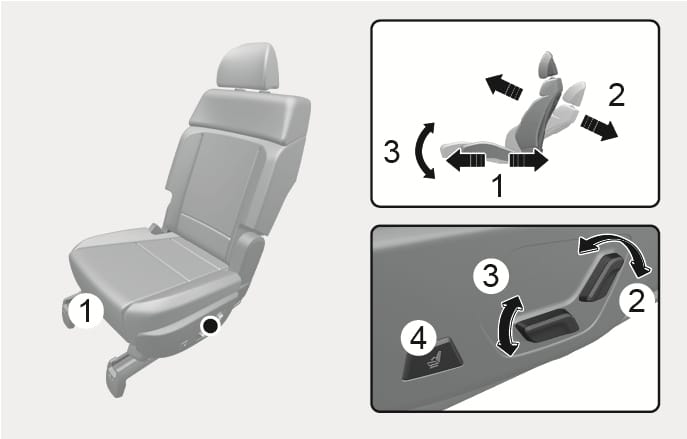

2nd row seat adjustment (6-seater)

Forward and rearward (1)

To move the seat forward or rearward:

Pull the seat slide adjustment lever up and hold it.
Slide the seat to the position you desire.
Release the lever and make sure the seat is locked in place.

Seatback angle adjustment (2)

Push the control switch forward or rearward.

Release the switch once the seatback reaches the desired position.

Seat cushion angle (3)

To change the angle of the front part of the seat cushion:

Push the front portion of the control switch up to raise or down to lower the front part of the seat cushion.

Release the switch once the seat reaches the desired position.

Sliding Unlock switch (4)

Press the Sliding Unlock switch to release.
Move the seat to your desired front or back position.
The seat will automatically lock in place after a short period.
Give the seat a gentle shake to ensure it's securely locked

The sliding unlock feature will not operate when the vehicle is moving over a certain speed.

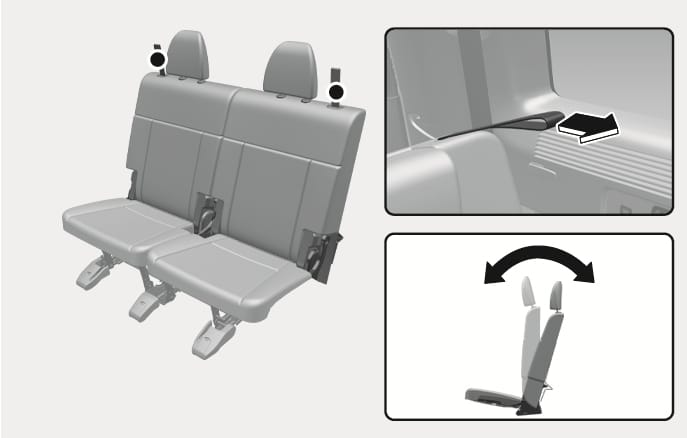

3rd row seat adjustment

Seatback angle adjustment

Pull up the seatback recline strap.
Hold the strap and adjust the seatback of the seat to the position you desire.
Release the strap and make sure the seatback is locked in place. The strap MUST return to its original position for the seatback to lock.

Walk-in seat

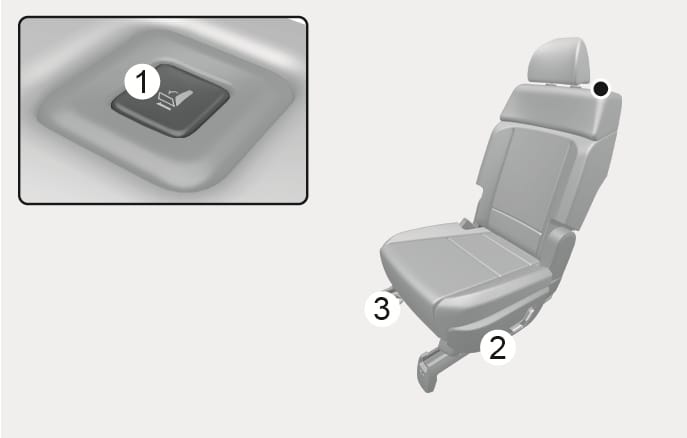

To get in or out of the 3rd row seat:

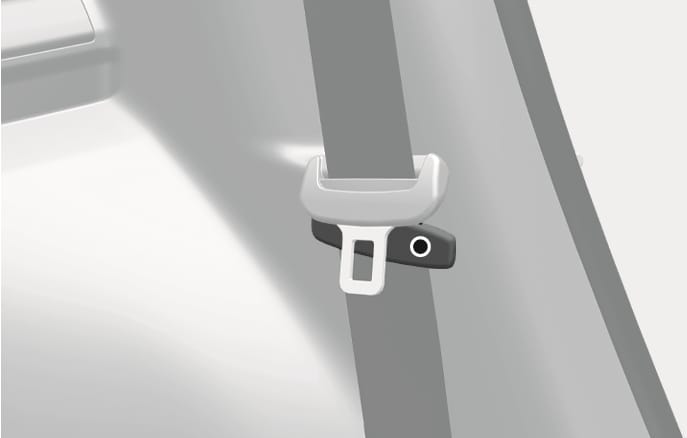

Store the 2nd row seatbelt in the storage holder.
Press the 3rd row seat access switch (1) located at the top of the 2nd row seatback. The seatback will fold, and the seat will move forward slightly.

If necessary, slide the 2nd row seat forward after pressing the sliding unlocking switch (2) or slide the 2nd row seat forward while pulling the front lever (3) of the seat cushion.
Hold the seat to safely get in or out of the 3rd row seat.
After getting in or out of the 3rd row, adjust the position of the 2nd row seat and press the 3rd row seat access switch (1). The seatback will return to its initially set position.

Walk-in switch may not operate properly when:

When the 2nd row seat belt is fastened
When the vehicle is moving more than 1.8 mph (3 km/h)
When the gear is not in P (Park)

Before attempting to get out of the 3rd row seat after folding and sliding the 2nd row seat, make sure the vehicle is at a complete stop. Only use the switch once any passengers on the 2nd row have left the vehicle and press the switch to move the 2nd row seat forward.

Never press the button to fold the seat whenever there is a passenger in the 2nd row or someone is getting out of the vehicle. A sudden change to the seat may result in injury.

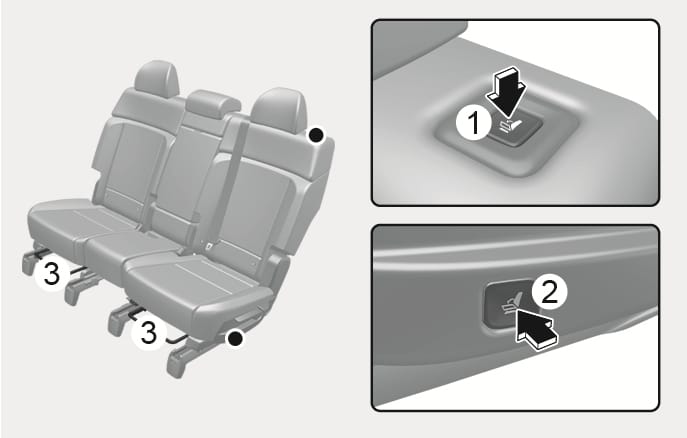

To get in or out of the 3rd row seat:

Store the 2nd row seatbelt in the storage holder.
Press either the 3rd row seat access switch (1) located at the top of the 2nd row seatback or the 3rd row seat access switch (2) on the outer side of the 2nd row seat. Then the seatback will fold and the seat will move forward slightly.

If necessary, pull the lever at the front of the seat cushion (3) and push the 2nd row seat forward.
Hold the seat to safely get in or out of the 3rd row seat.
After accessing or exiting the 3rd row, adjust the position of the 2nd row seat, and have the seatback to the upright position.

When folding and sliding the 2nd row seat to access the 3rd row, ensure the vehicle is completely stopped. Only operate the switch after any occupants or passenger of the 2nd row seat have disembarked. Do not press the button to fold the seat if someone is seated or disembarking from the 2nd row seat, as sudden seat movement may result in injury.

If the walk-in switch does not work, pull the strap (1) located on the lower left side of the seat. Then you can move the 2nd row seat forward.
Never attempt to pull the strap (1) while the 2nd row seat is occupied as the seat may suddenly move and cause the passenger on the seat to be injured. Use only the strap when the walk-in switch does not work.

Folding the rear seats

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

To fold down the rear seatback:

Locate the seatbelt toward the outboard position before folding down the seatback to avoid the seatbelt system interfering with the seatback.
Lower the rear head restraints to the lowest position.
Route the seat belt webbing through the rear seat belt guides to prevent the belts from being trapped behind or under the seats.
7-Seater

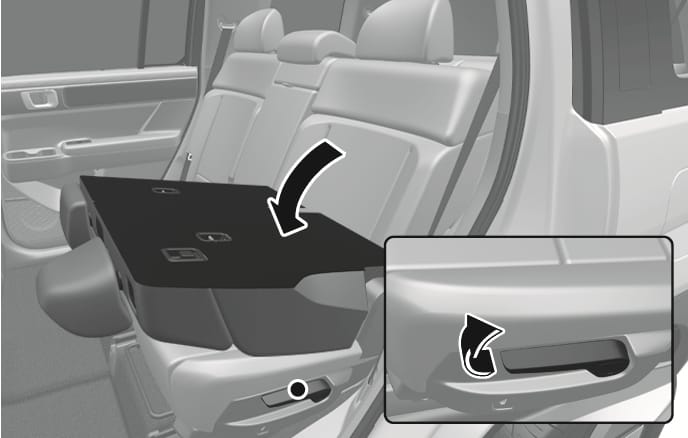

2C_2ndSeatBackFoldingLever
2C_2ndSeatBackUnFoldingLever

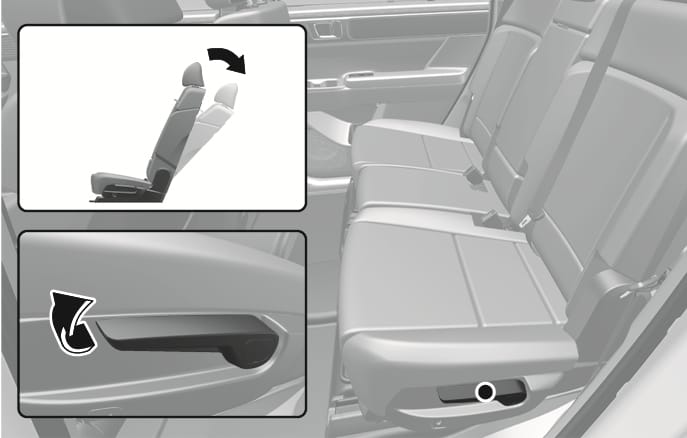

- Pull the seat angle adjustment lever (located in the 2nd row seat) to completely fold the seatback toward the front of the vehicle. Make sure the seatback is locked in place.

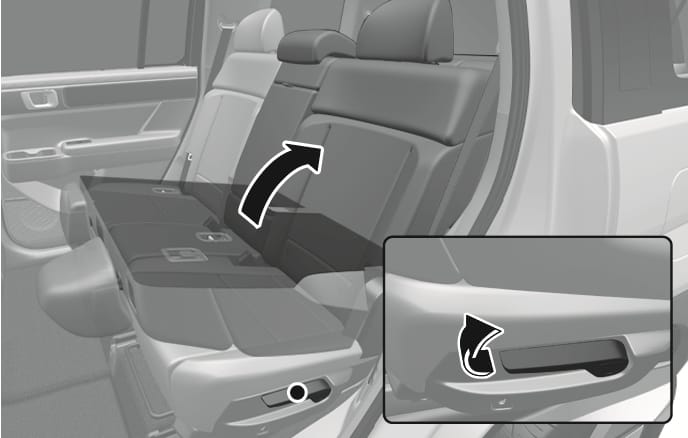

- When using it as a seat, pull the seat angle adjustment lever (2nd row seat) to fully raise the seatback. Adjust the seatback to the desired angle and release the lever to lock in place.

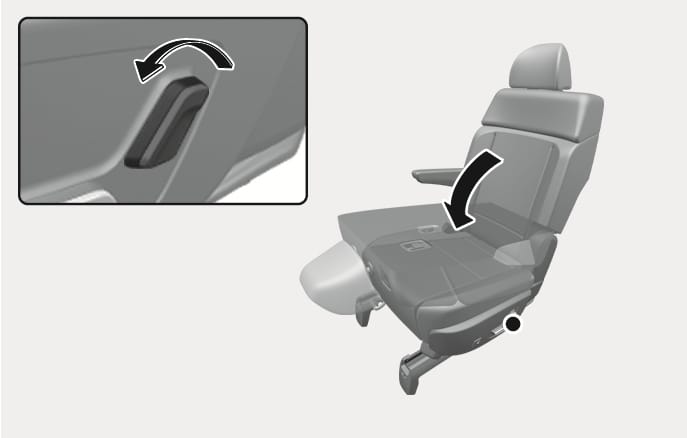

6-seater

2C_2ndSeatBackFoldingSwitch_4

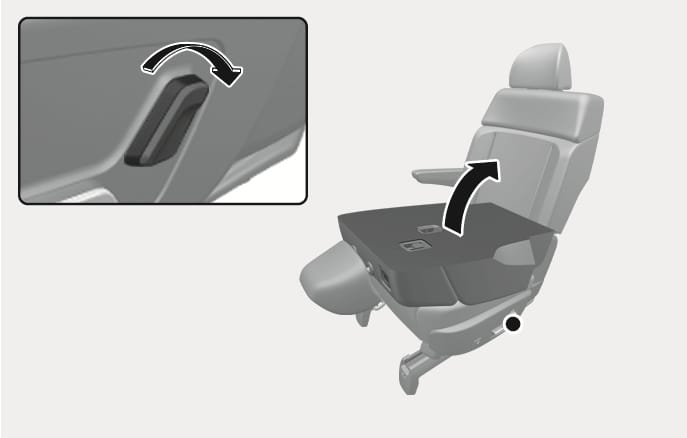

2C_2ndSeatBackUnFoldingSwitch_4

Cargo area

2C_2ndSeatRemoteFolding
- With the door open, the seatback will recline when you pull the upper portion of seatback switch for more than a second while the seatback is folded down toward the front and the plate is not locked in the seatbelt buckle of the 2nd row seat. (when the seatback is folded, pull the upper portion of this switch rearward more than a second to unfold the seatback). You may also press fold/unfold switch. Make sure the seatback is locked in place.
- When using it as a seat, push the upper portion of the seatback angle adjustment switch rearward for more than a second to have an upright position. You can also press the seatback fold/unfold switch.
- Once the seatback is raised, lightly shake it back and forth to ensure it is securely locked before driving.

3rd row seat

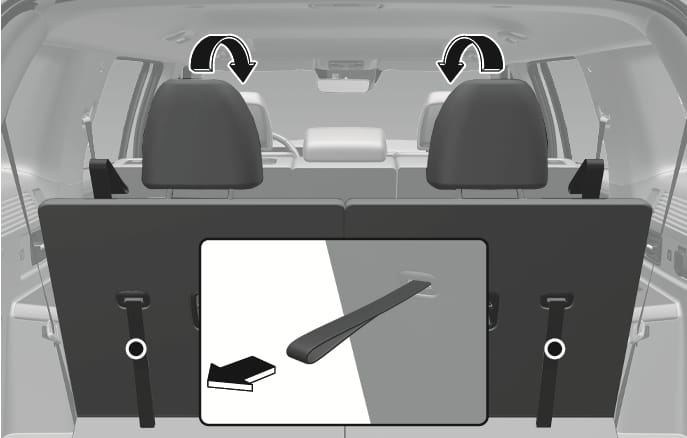

Pull the seatback folding/unfolding strap to completely fold the seatback forward. Make sure the seatback is securely locked in place.
2C_3ndSwitchFoldingStrap
When using it as a seat, pull the seatback folding/unfolding strap to fully raise the seatback. Adjust the seatback to the desired angle, and release the upper angle adjustment strap to lock in place. Make sure the seatback is locked in place.

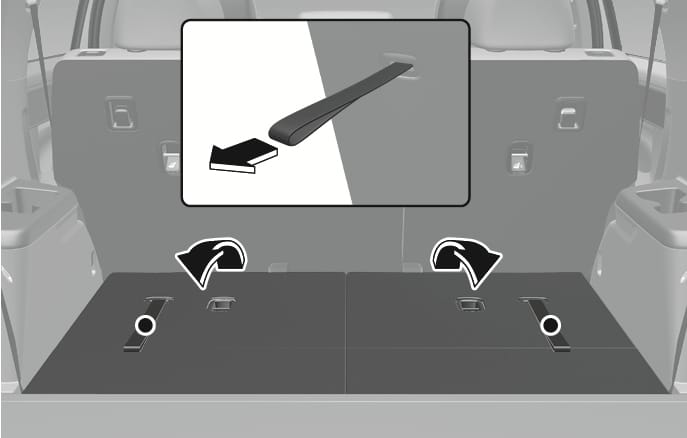

2C_3ndSeatUnFolding

When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In a collision or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment, which could result in serious injury or death.

Do not place objects in the rear seats, since they cannot be properly secured and may hit vehicle occupants in a collision causing serious injury or death.

Make sure the engine is off, the shift lever is in P (Park), and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift lever is inadvertently shifted to another position.

Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.
Unsecured cargo in the passenger compartment can cause damage to the vehicle or injury to it's occupants.

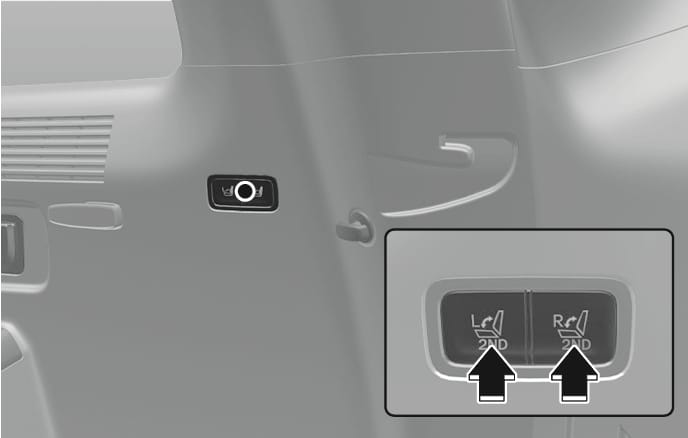

2nd row seatback remote folding (7-seater)

With the liftgate open, this feature allows you to conveniently fold the 2nd row seatback forward.

Press the seatback folding switch (1) located on the right side of the liftgate.
Once the seatback is folded forward, the space can be used for cargo.
If the seatback does not fold down completely, push it to make sure it's fully folded.

Always check for any occupants or passengers in the 2nd row seats before folding. Do not fold the seat if there are pets, luggage, passengers sitting in the 2nd row seats, or when passengers are out of the vehicle. A sudden movement of the seat may cause injury.

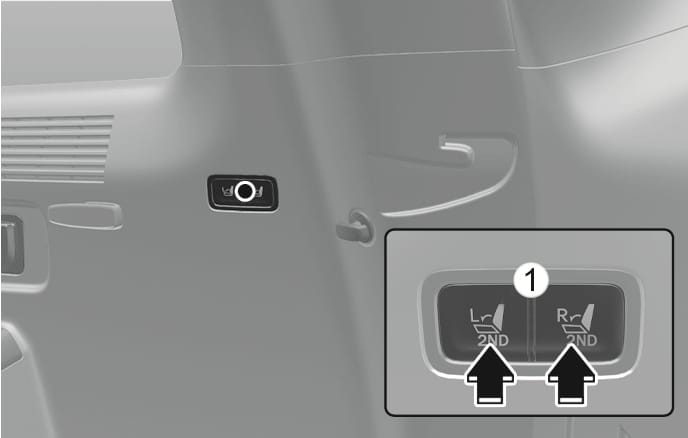

2nd row seatback remote folding/unfolding (6-seater)

With the liftgate open, this feature allows you to conveniently fold or unfold the 2nd row seatback forward or rearward.

Press the seatback folding/unfolding switch (1) located on the right side of the liftgate. You can also select Setup > Seat > 2nd row seatback remote folding/unfolding in the infotainment system. You may choose between folding or unfolding of 2nd row seatback.
When the seatback is folded forward, the space can be used for cargo.
If the seatback doesn't fully fold down, push it to fold it completely.
When the seatback is folded, press the fold/unfold switch (1) to unfold the seatback.

Always check for any occupants or passengers in the 2nd row seats before folding or unfolding. Do not adjust the seat if there are pets, luggage, passengers sitting in the 2nd row seats, or when passengers are out of the vehicle. A sudden movement of the seat may cause injury.

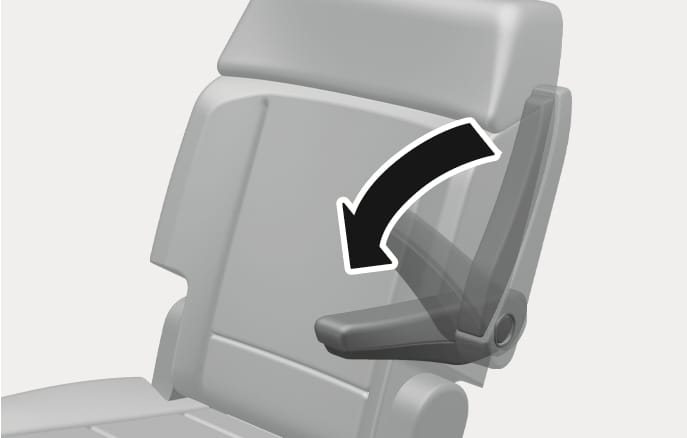

Armrest (2nd row seat)

6-seater

To adjust the armrest to a desired angle:

Lift the armrest to slightly above the highest position, then lower it to the lowest position, then lift the armrest to position it to the desired angle.

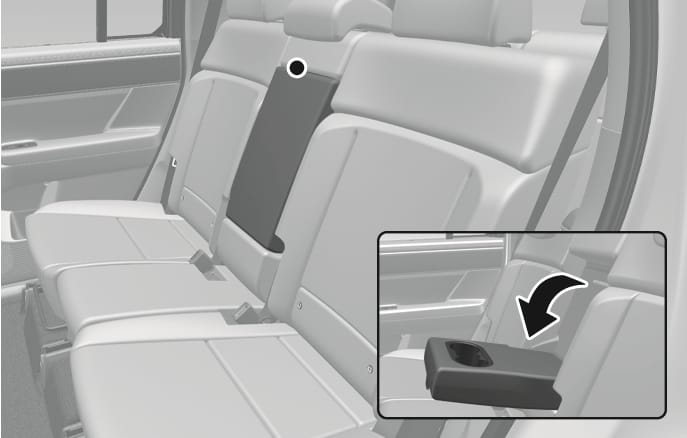

7-seater

The armrest is located in the center of the rear seat. Pull the armrest down from the seatback to use it.
