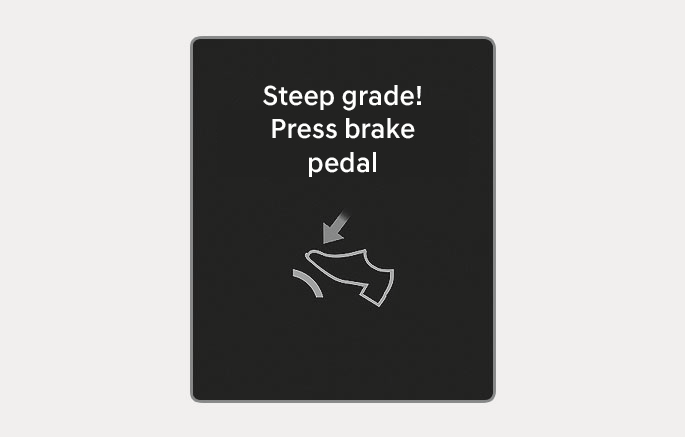

Steep grade! Press brake pedal

2C_DCTWarningMessageInCluster

This message appears when the vehicle is driving up hills or on steep grades.

If the vehicle is held or creeping forward on an incline by applying the accelerator pedal, the clutch and transmission may result in damage.

Press the brake pedal, if the messages appears on the cluster display.

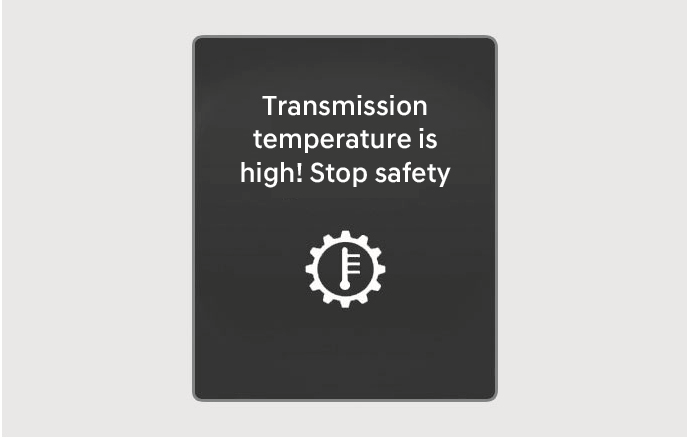

Transmission temperature is high! Stop safety

2C_DCTWarningMessageInCluster_2

Repeated stop-and-go launches on steep grades, sudden take off or acceleration, or other harsh driving conditions may increase the clutch and transmission temperature.

If the clutch and the transmission temperature is high, the self-protection mode warns you with a warning chime and message while the shift indicator on the cluster display blinks.

• Move the vehicle to a safe location and shift the gear to P (Park) with the engine running. Wait until the transmission is sufficiently cooled down.

• If you ignore this warning, you may experience abrupt shifts, frequent shifts, or jerkiness.

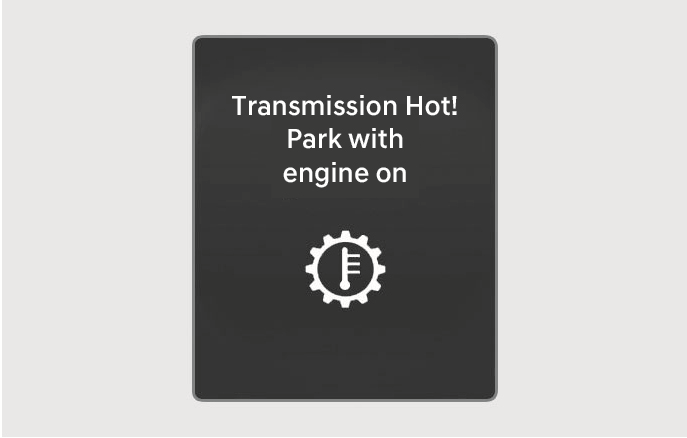

Transmission hot! Park with engine on

2C_ShiftOverheatStopVehicleInfo

If you continue to drive with an overheated transmission, the above warning message appears, and the self-protection mode disables the clutch.

• Move the vehicle to a safe location and shift the gear to P (Park) with the engine running. Wait until the transmission is sufficiently cooled down.

• If the above warning message is displayed continuously, contact an authorized HYUNDAI dealer.

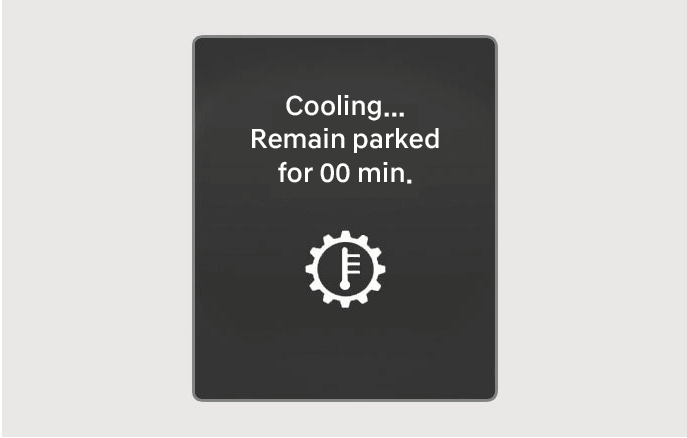

Cooling... Remain parked for 00 min.

2C_DCTWarningMessageInCluster_3

If you move the vehicle to a safe location and shift the gear to P (Park) with the engine running, the above warning message appears.

• Wait until the clutch is sufficiently cooled down.

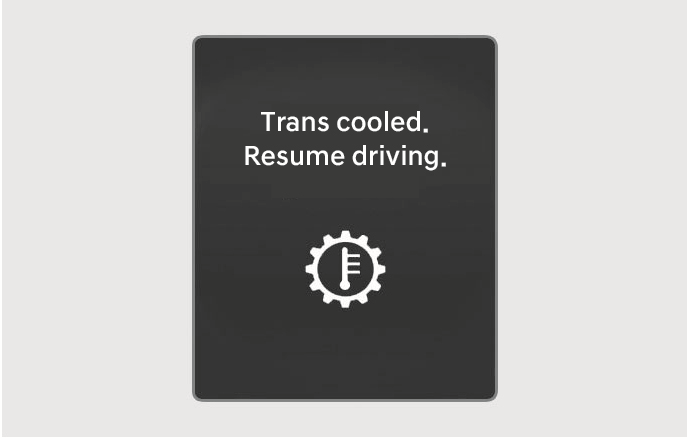

Transmission cooled. Resume driving

2C_ShiftOverheatCanDriveInfo

This message appears when your vehicle can be driven.

Drive the vehicle smoothy as possible.

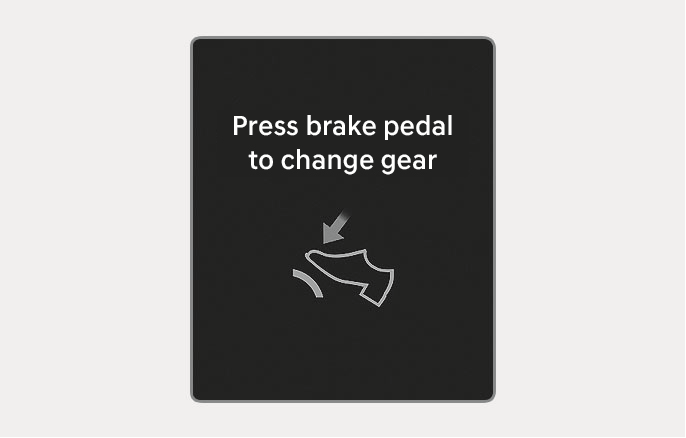

Press brake pedal to change gear

2C_PressureBreakPadalToChangeGearInfo

This message appears when the brake pedal is not depressed while shifting the gear.

Depress the brake pedal and then shift the gear.

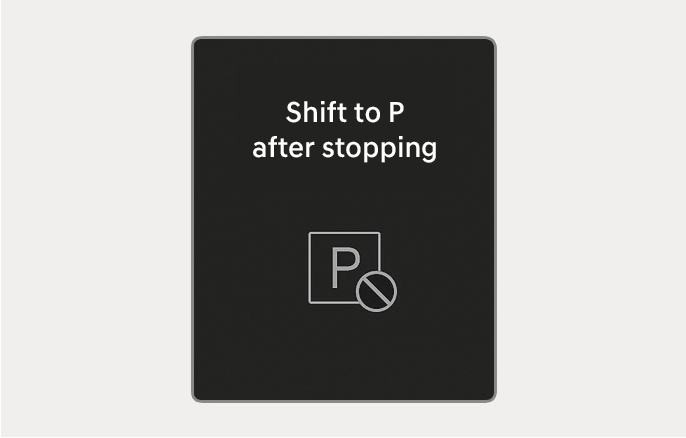

Shift to P after stopping

2C_ShiftToPAfterStoppingInfo

This message appears when the gear is shifted to P (Park) while the vehicle is moving.

Stop the vehicle before shifting to P (Park).

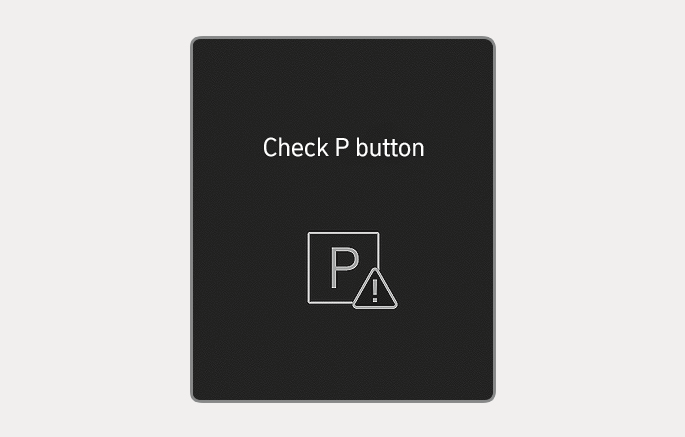

Check P button

2C_CheckShiftPButtonInfo

This message appears when there is a problem with the P button.

Have your vehicle inspected by an authorized HYUNDAI dealer.

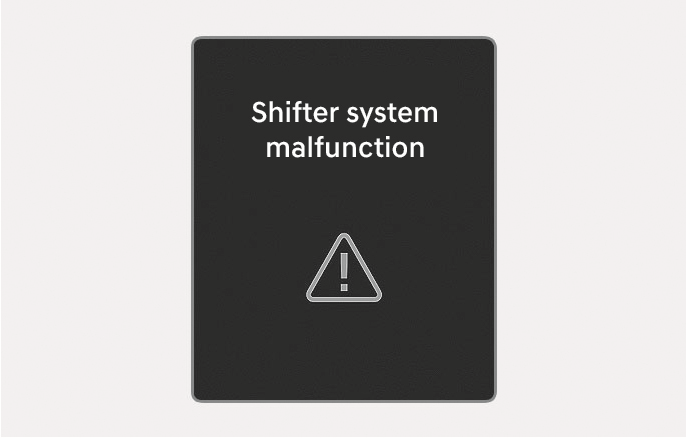

Shifter system malfunction

2C_ShiftSystemMalfuncitonoInfo

This message appears when the transmission or the shift dial does not properly operate in the P (Park) position.

Have your vehicle inspected by an authorized HYUNDAI dealer.

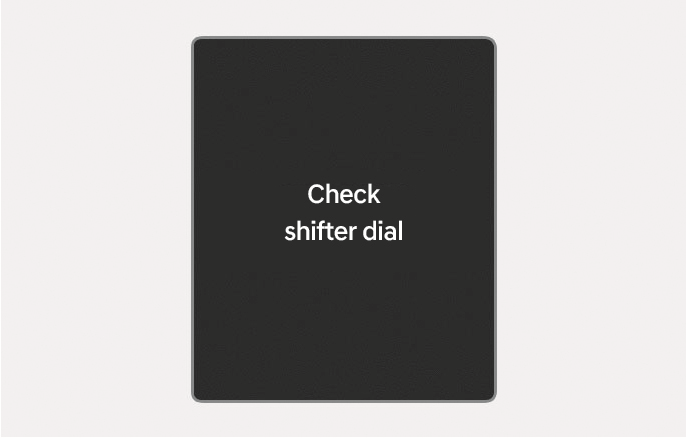

Check shifter dial

2C_CheckShiftButtonInfo

This message appears when there is a malfunction with the rotary gear shift dial.

Have your vehicle inspected by an authorized HYUNDAI dealer.

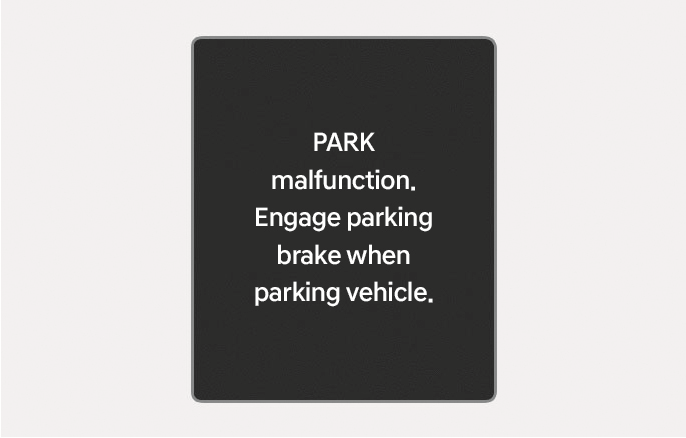

PARK malfunction. Engaging parking brake when parking vehicle

2C_UnableToChangePInfo

This message appears when there is a problem with the P button.

Have your vehicle inspected by an authorized HYUNDAI dealer.
