Parking Distance Warning Operation

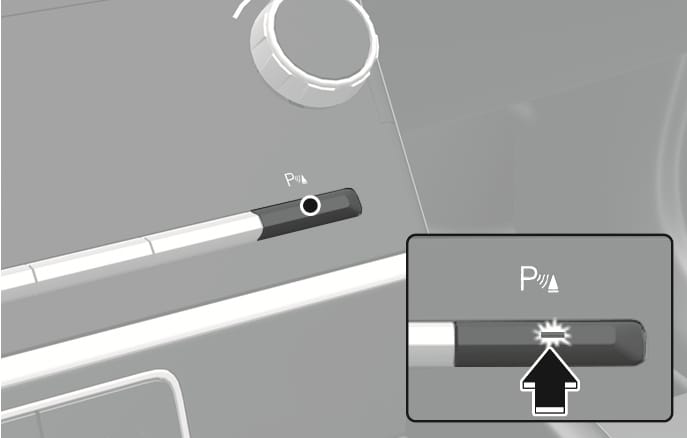

2C_ParkingSafetyButton
Press the Parking Safety (
-
When the gear is shift to R (Reverse), Parking Distance Warning automatically turns on (Parking Safety button indicator on).
Forward Parking Distance Warning operates under the following conditions.
-
The gear is shifted from R (Reverse) to D (Drive) with Reverse Parking Distance Warning on
-
The gear is in D (Drive) and the Parking Safety (
Ā ) button indicator light is on -
Shift to D (Drive) when the function is off
(Only when Vehicle > Driver Assistance > Parking Safety > Parking Distance Warning Auto On is selected in the infotainment system.)
-
Forward Parking Distance Warning operates only when the vehicle's forward speed is below 6 mph (10 km/h).
-
Forward Parking Distance Warning is deactivated if the vehicle speed reaches above 18 mph (30 km/h). It may not reactivate although the vehicle speed drops below 6 mph (10 km/h).
(Only when Vehicle > Driver Assistance > Parking Safety > Parking Safety is not selected in the infotainment system.)
-
While the gear is in R' (reverse), 'Forward Parking Distance Warning' warns only the front outer side area.
Warning indicator and sound
The corresponding indicator illuminates whenever each ultrasonic sensor detects a person or object in its sensing range. Also an audible warning sounds.
|
Distance from Object |
Warning Indicator |
Warning Sound |
|
|
Cluster |
Infotainment |
||
|
24-48 in. (60-120 cm) |
|
|
Buzzer beeps intermittently (front inside) |
|
12-24 in. (30-60 cm) |
|
|
Beeps more frequently |
|
within 12 in. (30 cm) |
|
|
Beeps continuously |
-
When more than two objects are detected at the same time, the closest one is warned with an audible warning.
-
The shape of the indicator in the illustration may differ from the actual vehicle.
-
The front outer side warnings turn on when the vehicle is in R (Reverse).
Side Parking Distance Warning operates under the following conditions.
-
The gear is shifted to R (Reverse).
-
The gear is shifted from R (Reverse) to D (Drive).
-
The gear is in D (Drive) and the Parking Safety (
Ā ) button indicator light is on -
Shift to D (Drive) when the function is off
(Only when Vehicle > Driver Assistance > Parking Safety > Parking Distance Warning Auto On is selected in the infotainment system.)
-
Side Parking Distance Warning operates when the vehicle's forward speed is below 6 mph (10 km/h).
-
Side Parking Distance Warning operated only when Forward or Rearward Parking Distance Warning is on.
Warning indicator and sound
The corresponding indicator illuminates whenever each ultrasonic sensor detects a person or object in its sensing range.
|
Distance from Object |
Warning Indicator |
Warning Sound |
|
|
Cluster |
Infotainment |
||
|
24-48 in. (60-120 cm) |
|
|
- |
|
12-24 in. (30-60 cm) |
|
|
- |
|
within 12 in. (30 cm) |
|
|
Beeps continuously |
-
If an object located within 12 in. (30 cm) from the side of the vehicle's path is detected, an audible warning sounds.
-
If an object outside the side of the vehicle's path is detected, the warning indicator is displayed.
-
The shape of the indicator in the illustration may differ from the actual vehicle.
Reverse Parking Distance Warning operates under the following conditions.
-
The gear is shifted to R (Reverse).
Warning indicator and sound
The corresponding indicator illuminates whenever each ultrasonic sensor detects a person or object in its sensing range. Also an audible warning sounds.
|
Distance from Object |
Warning Indicator |
Warning Sound |
|
|
Cluster |
Infotainment |
||
|
24-48 in. (60-120 cm) |
|
|
Buzzer beeps intermittently |
|
12-24 in. (30-60 cm) |
|
|
Beeps more frequently |
|
within 12 in. (30 cm) |
|
|
Beeps continuously |
-
When more than two objects are detected at the same time, the closest one is warned with an audible warning.
-
The shape of the indicator in the illustration may differ from the actual vehicle.
