Opening the fuel filler door

  1. Turn the engine off.

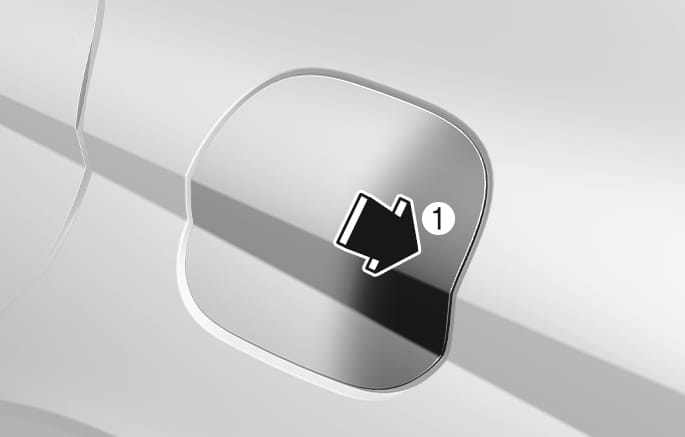

  2. Push the fuel filler door (1) near the 3 o’clock position.

    2C_FuelInletDoor

  3. Pull the fuel filler door outward to access the fuel tank cap.

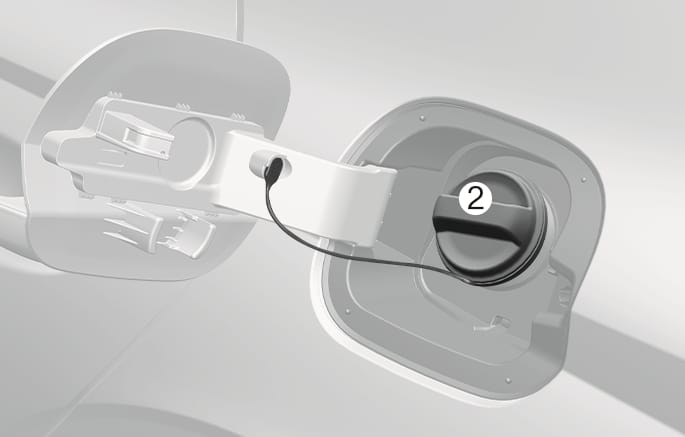

  4. To remove the fuel tank cap (2), turn it anti-clockwise. You may hear a hissing noise as the pressure inside the tank equalizes.

    2C_FuelInletDoorOpen

  5. Place the cap on the fuel filler door.

The fuel filler door will unlock when all doors are unlocked.

To unlock fuel filler door:

  • Press the unlock button on your smart key

  • Press the Central Door unlock button on armrest trim of driver’s door

The fuel filler door will lock when all doors are locked. To lock fuel filler door:

  • Press the lock button on your smart key

  • Press the Central Door lock button on armrest trim of driver’s door

  • All doors will automatically lock after the vehicle speed exceeds 15 km/h.

    Fuel filler door is also locked when vehicle speed exceeds 15 km/h.

If the fuel filler door does not open because ice has formed around it, tap lightly or push on the door to break the ice and release the door. Do not pry open the door. If necessary, spray around the door with an approved deicer fluid (do not use radiator antifreeze) or move the vehicle to a warm place and allow the ice to melt.
