Heating and air conditioning

Start the engine.
Set the mode to the desired position.

To improve the effectiveness of heating and cooling, select:
- Heating:
- Cooling:
Set the temperature control to the desired position.
Set the air intake control to the outside (fresh) air position.
Set the blower speed control to the desired speed.

If air conditioning is desired, turn on the air conditioning system.

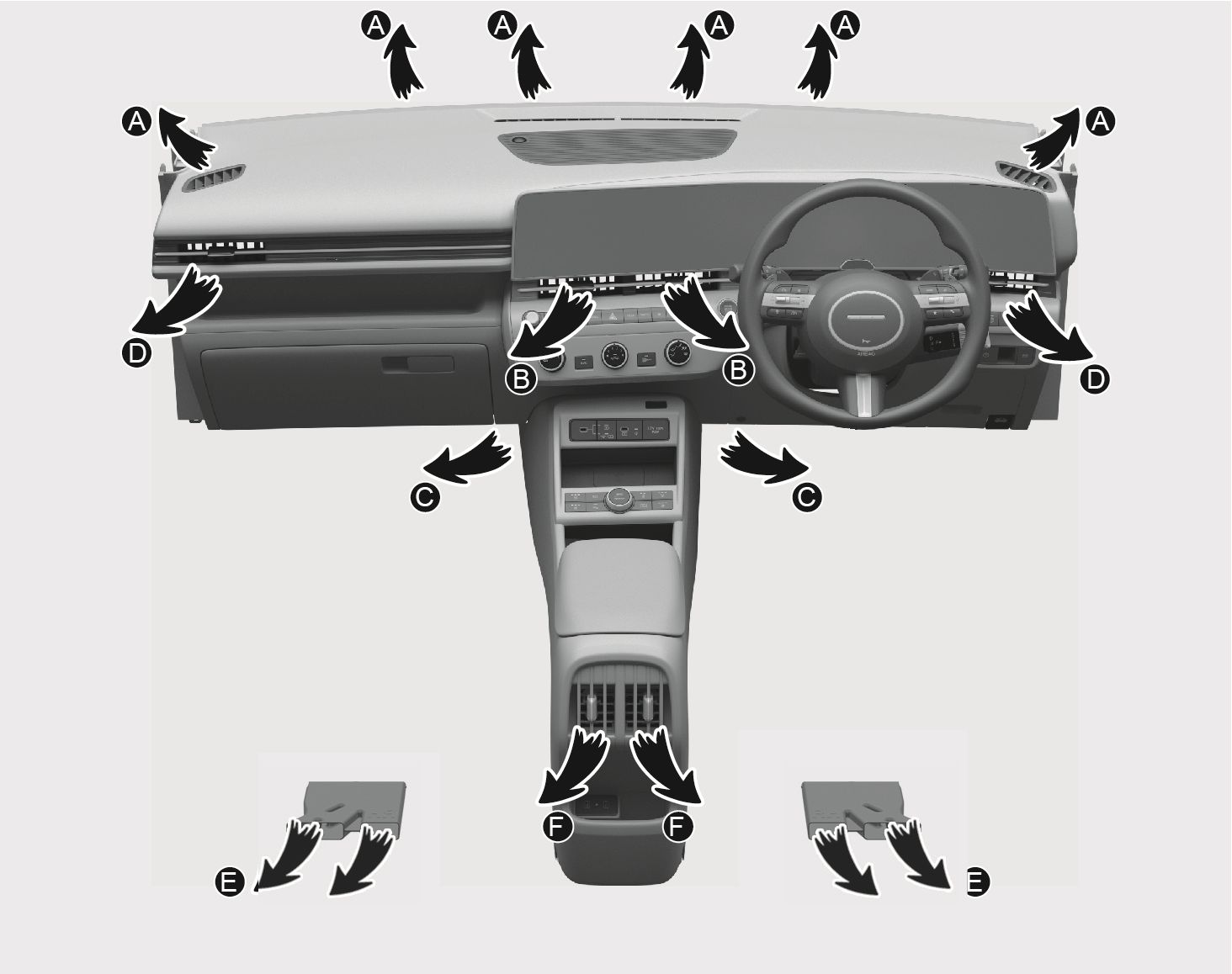

Mode selection (3)

The mode selection button controls the direction of the air flow through the ventilation system.

Mode selection

Symbol	Operation	Direction
	Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.	B, D, F
	Air flow is directed toward the face and the floor.	B, C, D, E, F
	Most of the air flow is directed to the floor, with a small amount of the air being directed to the windscreen and side window defrosters.	A, C, D, E, F
	Most of the air flow is directed to the floor and the windscreen with a small amount directed to the side window defrosters.	A, C, D, E, F
	Most of the air flow is directed to the windscreen with a small amount of air directed to the side window defrosters.	A, D

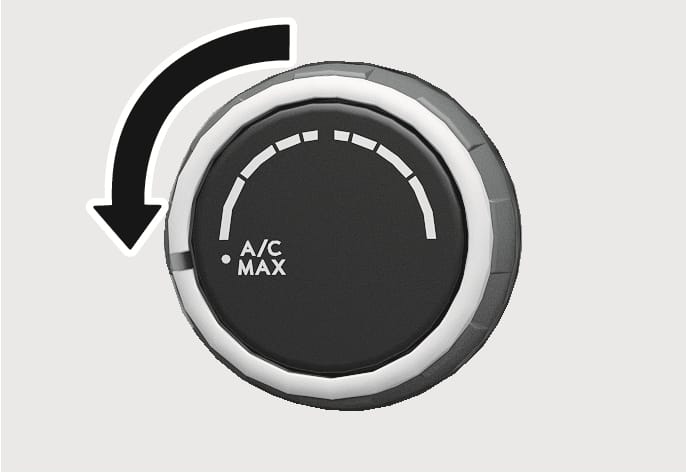

MAX A/C

The MAX A/C mode is used to cool the inside of the vehicle faster. Air flow is directed toward the upper body and face.

The air conditioning and recirculated air are both selected. Turn the blower speed mode to adjust.

Instrument panel vents

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever. The air flow can also be CLOSED using the vent adjustment lever.

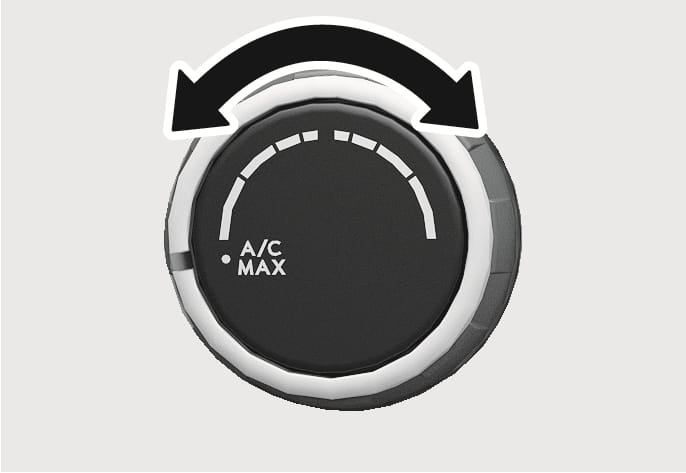

Temperature control (2)

The temperature increases by turning the knob to the right. The temperature decreases by turning the knob to the left.

Air intake control (6)

Recirculation mode

When Recirculation mode is selected, air from the passenger compartment is recirculated through the system and heated or cooled according to the function selected.

Outside (fresh) mode

With the outside (fresh) air selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

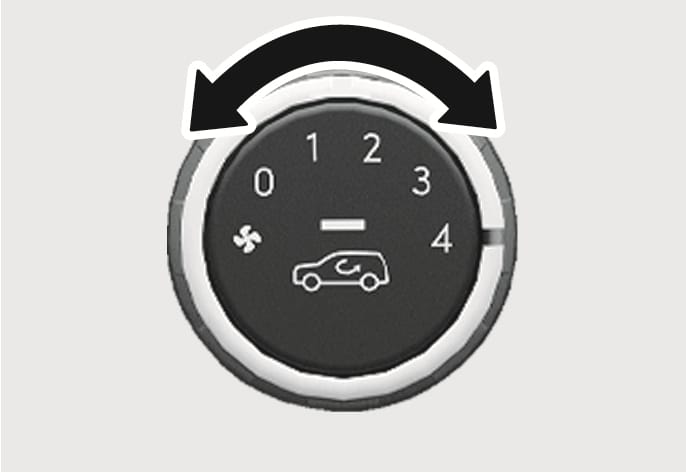

Blower speed control (1)

Turn the knob to the right to increase the blower speed and airflow. Turn the knob to the left to decrease blower speed and airflow.

Setting the blower speed control knob to the “0” position turns off the blower.

Operating the blower speed when the Engine Start/Stop button is in the ON position may cause the battery to discharge.

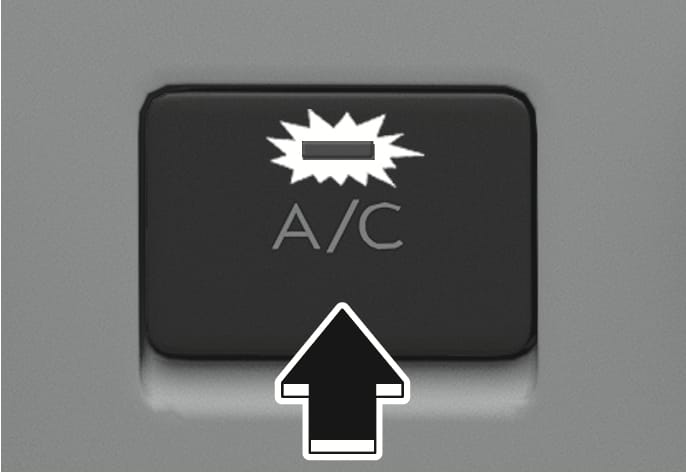

Air conditioning (A/C) (5)

Press the A/C button to turn on the air conditioning system (indicator light ON). Press the button again to turn off the air conditioning system.
