Jack and tools

2C_SpareTireReplacementOverview

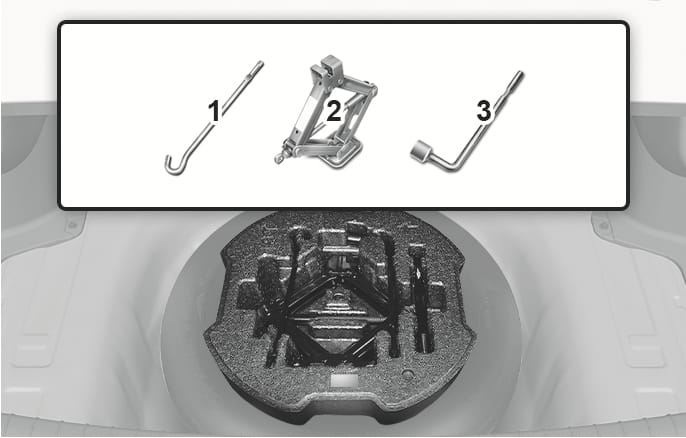

1. Jack handle
2. Jack
3. Wheel nut wrench

The jack, jack handle, and wheel nut wrench are stored in the luggage compartment under the luggage box cover.

The jack is provided for emergency tyre changing only.

2C_SpareTireReplacementPrecedure

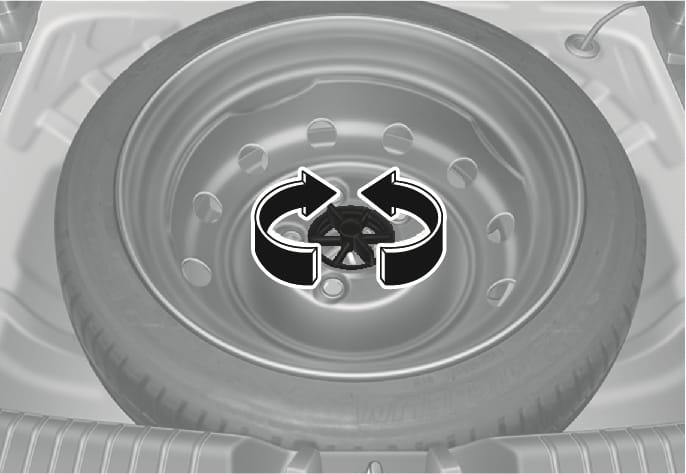

Turn the winged hold down bolt anti-clockwise to remove the spare tyre.

Store the spare tyre in the same compartment by turning the winged hold down bolt clockwise.

To prevent the spare tyre and tools from “rattling”, store them in their proper location.

2C_SpareTireReplacementPrecedure_2

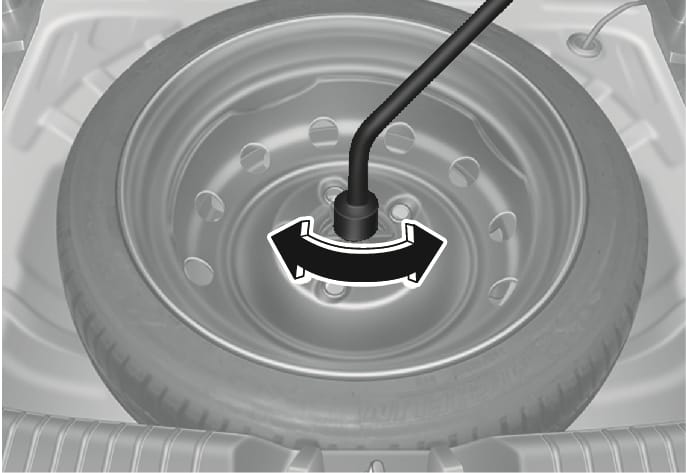

If it is hard to loosen the tyre hold-down wing bolt by hand, you can loosen it easily using the wheel nut wrench.

Turn the tyre hold down wing bolt anti-clockwise with the wheel nut wrench.
