Operating the power tailgate

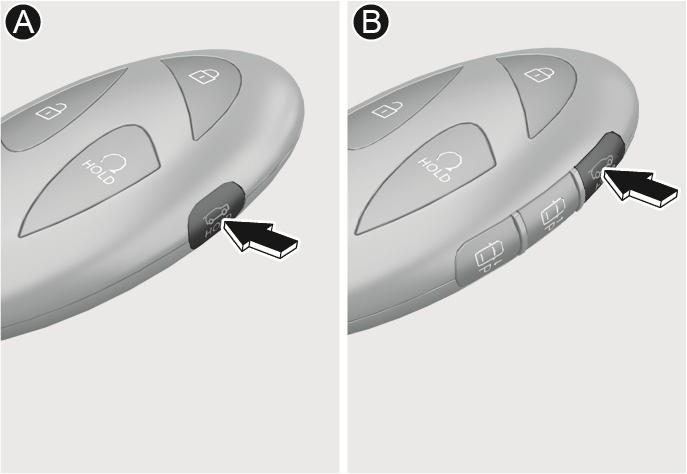

2C_SmartKeyTrunkOpenButton
When the tailgate is closed, press the power tailgate open/close button for 1 second. The tailgate opens with a warning sound.
Whilst the tailgate is opening, press the button to stop power tailgate operation.
When the tailgate is opened, press and hold the power tailgate open/close button to close the tailgate. If you release the button whilst the tailgate is closing, power tailgate operation stops with a warning sound for 5 seconds.
Also, if the Smart key is not within operation range of the vehicle, tailgate operation stops with a warning sound for 5 seconds.

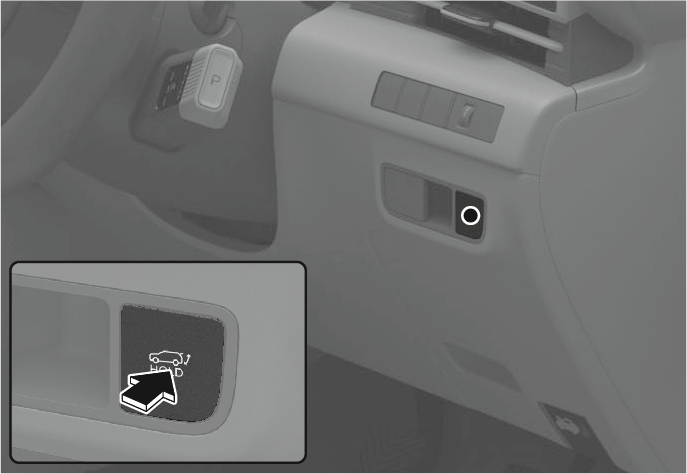

2C_CrushPadTrunkOpenButton
When the tailgate is closed, press the power tailgate open/close button. The power tailgate opens with a warning sound.
Whilst the tailgate is opening, press the button to stop power tailgate operation.
When the tailgate is opened, press and hold the tailgate open/close button to close the power tailgate. If you release the button whilst the tailgate is closing, power tailgate operation stops with a warning sound for 5 seconds.
2C_OutsideTrunkOpenButton
When the tailgate is closed, press the power tailgate open/close button to open the tailgate.
If the vehicle is locked, press the power tailgate open/close button with the smart key in your possession.
If the tailgate is unlocked, the tailgate opens or closes with a warning sound when the power tailgate open/close button is pressed without carrying the smart key.

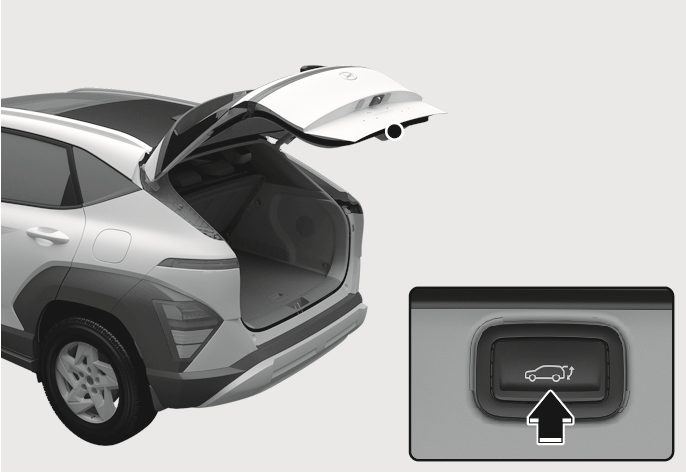

2C_TrunkTrimTrunkOpenButton
Press the power tailgate open/close button. The tailgate opens or closes with a warning sound.
During power tailgate operation if the power tailgate senses any obstacle, the tailgate stops or fully opens. The automatic reverse feature may not operate properly, or it may operate unexpectedly under the following circumstances:
-
The automatic reverse feature may not detect the resistance if the detected resistance is below a certain level, or if the tailgate is almost fully closed near the latched position.
-
The automatic reverse feature may operate if a strong impact is applied with no obstructions placed.
Never deliberately place any object or use your body part to test the automatic reverse feature.
The power tailgate may stop operating if the automatic reverse feature operates more than two times whilst attempting to open or close the tailgate. If this occurs, carefully open or close the tailgate manually, and then after 30 seconds try to operate the power tailgate automatically again.
