Reverse parking aid

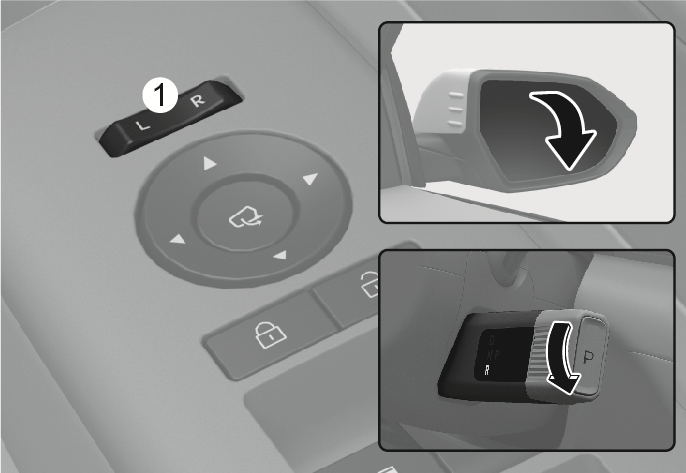

2C_AutoAdjustSideViewMirrorWhenParking

When the vehicle is shifted to the R (Reverse) position, the outside rear-view mirrors rotate downwards to aid with driving in reverse.

The state of the outside rear-view mirrors switch (1) determines whether or not the mirrors will move:

How it works

  • Left/Right : When the switch (1) is pressed to either L or R, both outside rear-view mirrors will move.

  • Neutral : When neither L or R is pressed, the outside rear-view mirrors will not move.

The outside rear-view mirrors will automatically revert to their original positions if any of the following occur:

  • The Engine Start/Stop button is pressed to either the OFF position or the ACC position.

  • The vehicle is shifted to any position except R (Reverse).

  • The outside rear-view mirrors adjustment button is not selected.

Reverse parking aid user settings mode

You may change the angle of the outside rear-view mirrors if it is difficult to see the rear view with the basic downward mirror angle provided when reversing.

When the vehicle is first delivered, the set downward angle of the left and right outside rear-view mirrors are different to ensure driver visibility.

  1. Make sure the vehicle is stopped.

  2. Press the brake pedal and shift the vehicle to R (Reverse). When L (Left) or R (Right) switch is selected, both outside rear-view mirrors will angle downward to the basic set position.

  3. Press either L or R switch to select the outside rear-view mirror you would like to adjust. Then press “, , , ” switch to adjust the outside rear-view mirror to the desired angle.

  4. After adjusting the angle to save the adjusted outside rear-view mirrors angle, shift the gear to another position other than R (Reverse), or change the L and R switch to the neutral position (L and R switch is not pressed).

  5. Set the other outside rear-view mirror following the above procedure 1 to 4.

Resetting reverse parking aid user settings mode

To change the outside rear-view mirrors, angle back to the basic angle, shift the vehicle to R (Reverse), and adjust the mirror angle higher than when the gear is in P (Park), N (Neutral) and D (Drive).

When changing the angle of both outside rear-view mirrors, it is recommended to change the angle one side at a time following the procedure 1 to 4.
